Klima-E 125 wall conduct, white, stainless steel

The COMPAIR® flow Klima-E 125 wall box creates a connection between the interior and exterior and enables the targeted discharge of exhaust air from the kitchen. The component is part of the patented COMPAIR® flow air duct system, which ensures high air performance with minimal flow loss and impresses with low operating noise. The air flows around the bends energy-efficiently and quietly through the air duct bend with guide bodies. The wall duct is designed for a round duct connection. With the help of the practical telescopic pipe, the length of the feed-through can be adjusted from 420-620 mm depending on the wall thickness. If necessary, the pipe can be shortened to a length of up to 175 mm. Due to the pipe diameter of 125 mm, a wall opening of approx. 132 mm is required. The telescopic wall duct has a backflow flap, which prevents air from outside from flowing through the pipe into the room. The high-quality external louvre also provides protection against the weather. Its high-quality stainless steel slat design ensures a high level of robustness.



Telescopic pipe and stainless-steel external blind, with backpressure shutter.

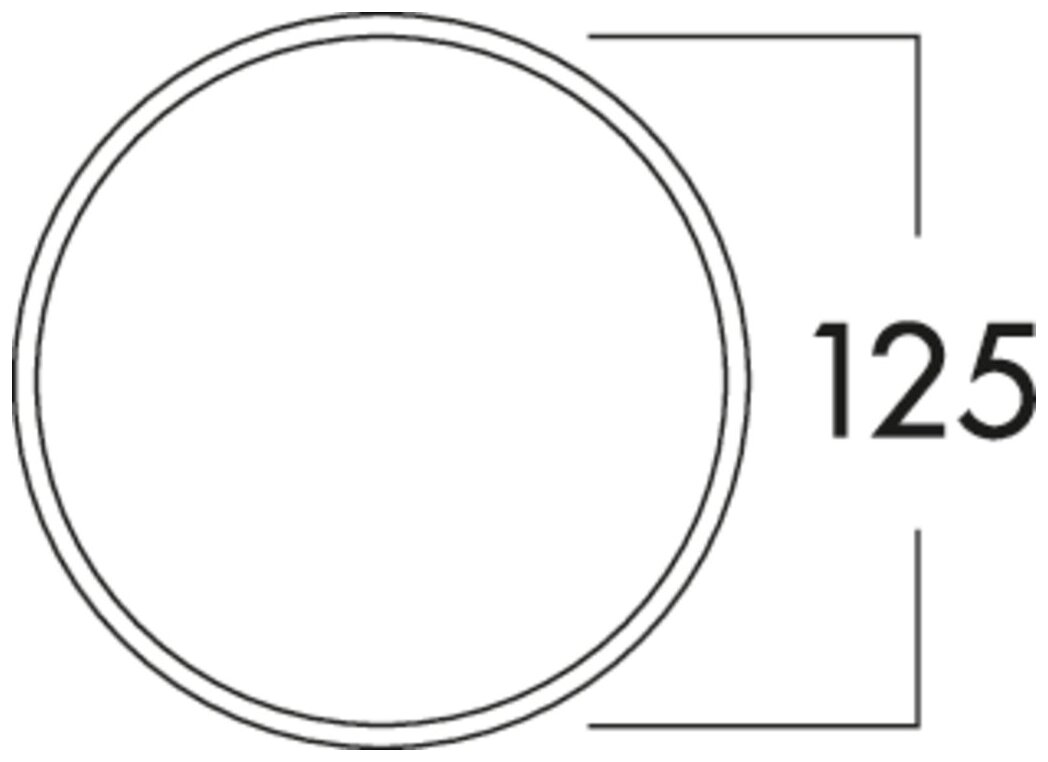

— hose/tube connector Ø 125 mm
— connector depth 24 mm
— installation depth 420–620 mm, can be shortened to 175 mm
— wall penetration Ø about 132 mm
