Kickspace KS 600, W 376 mm

Product number: 6011002
  • Base heating system

Prices will only be shown once logged in.

Description

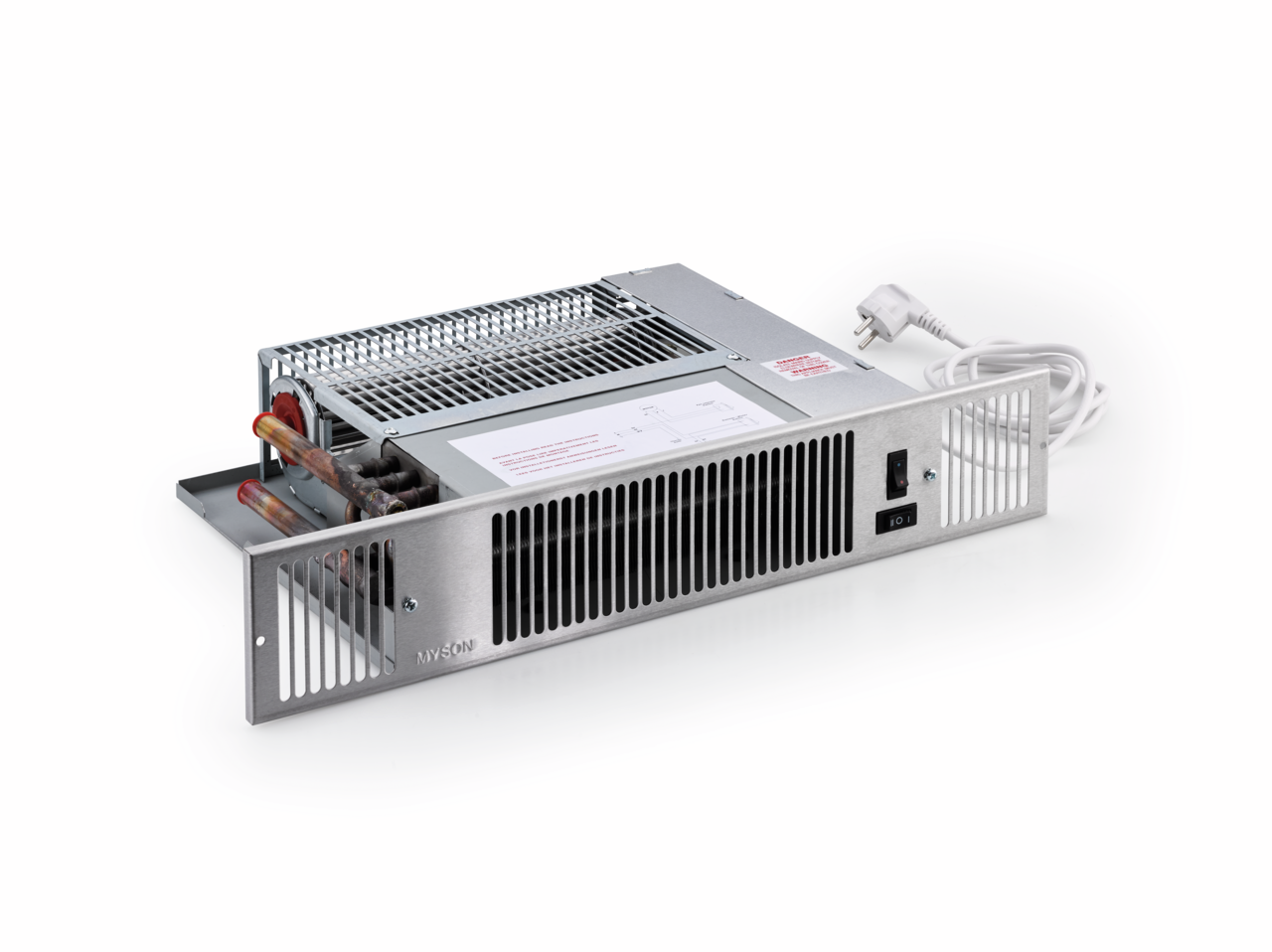

Kickspace KS 600, W 376 mm

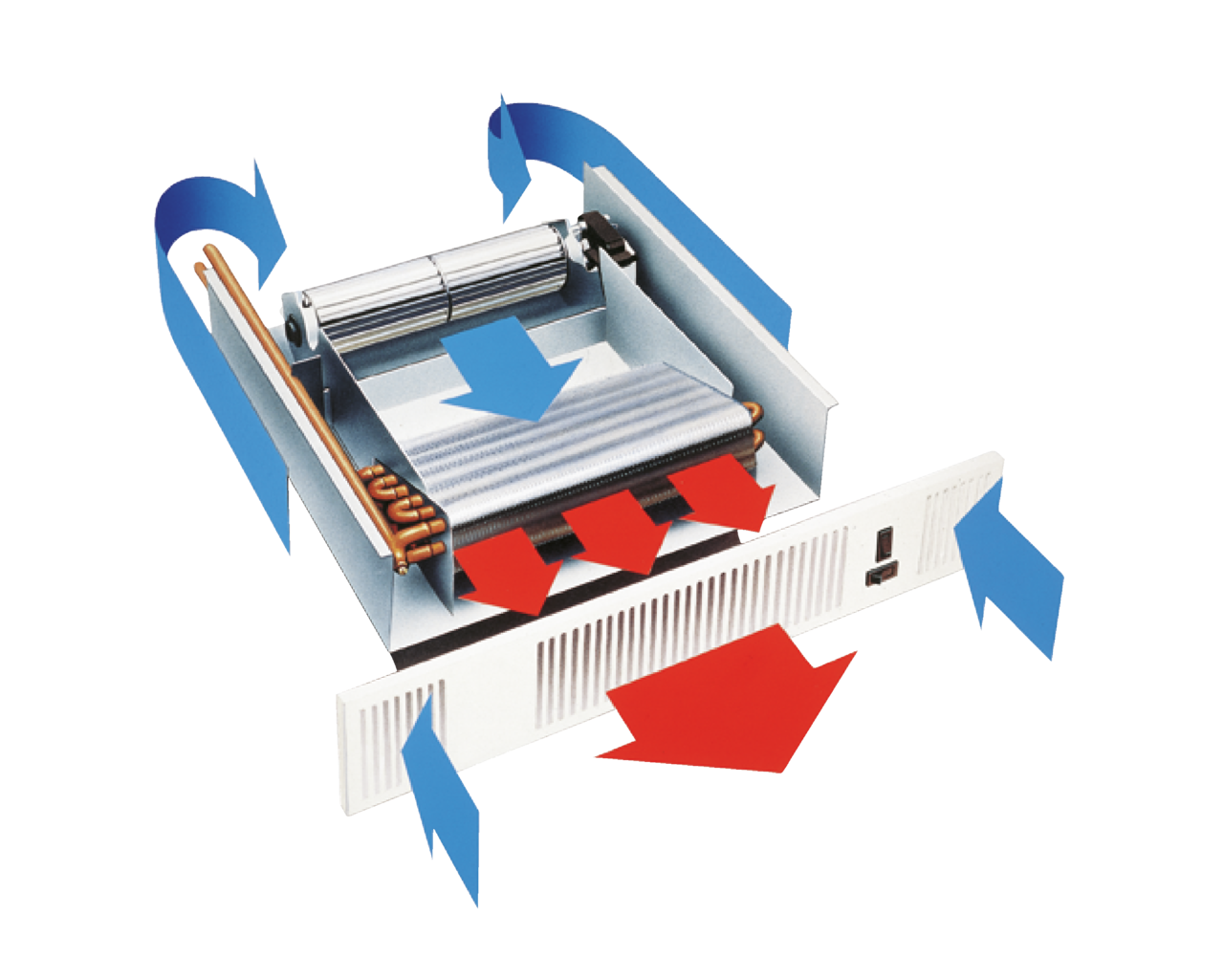

Clever heating system: The Kickspace KS 600 plinth heater is particularly planning-friendly and powerful. Thanks to the intelligent plinth installation, the heating module does not take up valuable space in the kitchen or other rooms and thus offers generous freedom for room design. It enables quick and effective heating of rooms up to 16 m² in size and need not fear comparison with regular radiators. On the contrary - in view of the innovative convector technology in the smallest of spaces, the energy-efficient baseboard heater only needs about half the heating time. The built-in fans also ensure pleasantly quiet operation. The heat output can be regulated individually via two power levels and for the warmer days of the year, the compact heater has a cooling air circulation system. The flow temperature and flow rate of the existing heating system play an essential role for the heating output of the unit. For proper operation, the average flow temperature must not be below 60 °C. With two flexible connection hoses and shut-off valve, the heater is quickly and easily connected to the central heating system. The connection material is available in the Naber shop, as are the decorative outer panel and a room thermostat.



The compact base-installed heating system for rooms up to about 16 m² can be connected to the central heating system with much effort.
— connected load 230 V/50 Hz
— heating system exclusively for 2-pipe system
— minimum base height 125 mm

Please note! Ventilation grids and connection hoses are not included in the scope of delivery. Please order additionally.

PLEASE OBSERVE:
For proper operation, the average feed temperature should not fall below 60 °C.

The heat output of the device depends on the feed temperature and the flow rate of the heating system.








Article type:
Base heating system
Colour:
stainless-steel coloured
Connection to central heating system:
Yes
Engine power:
40 W
For room size:
16 m²
Heating capacity:
981 - 1256 W
Heating medium:
water
Mains frequency:
50 Hz
Mains voltage:
230 V
Minimum plinth height:
125 mm
Note:
Cover plates need to be ordered separately., For proper operation, the average feed temperature should not fall below 60 °C., The heat output of the device depends on the feed temperature and the flow rate of the heating system.
Plug type:
Angle plug
Standards:
the noise levels were tested according to EN 23741.
Suitable pipe system:
2-pipe
Switch:
Yes

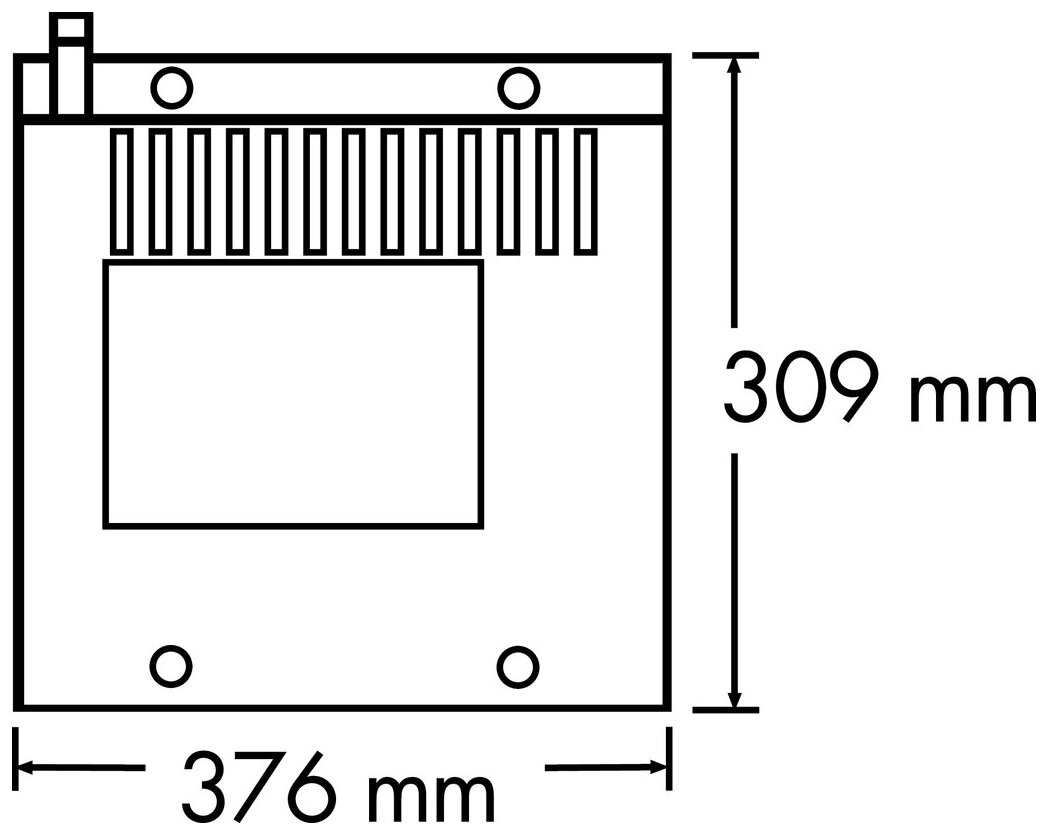

Depth:
309 mm
Height:
93 mm
Width:
376 mm

Downloads

Assembly Assembly
Data sheet Data sheet
Skip product gallery

Accessories

3 variations available

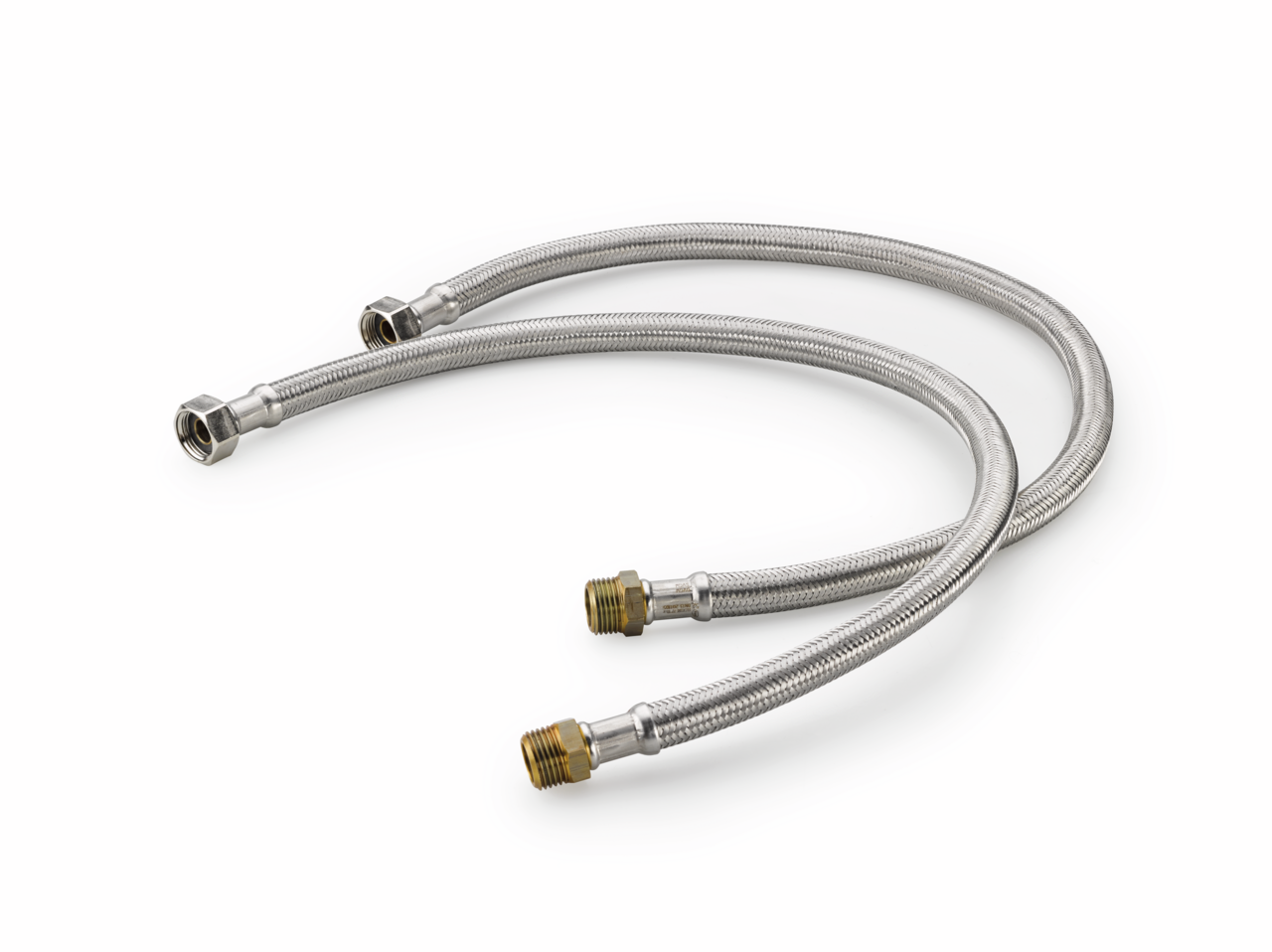

Reinforced hose, L 1500 mm
Reinforced hose, L 1500 mm
Product number: 6011016
  • Hose
  • With ½" external thread and union nut.
  • Material: stainless steel
Details
3 variations available
Reinforced hose, L 1000 mm
Reinforced hose, L 1000 mm
Product number: 6011015
  • Hose
  • With ½" external thread and union nut.
  • Material: stainless steel
Details

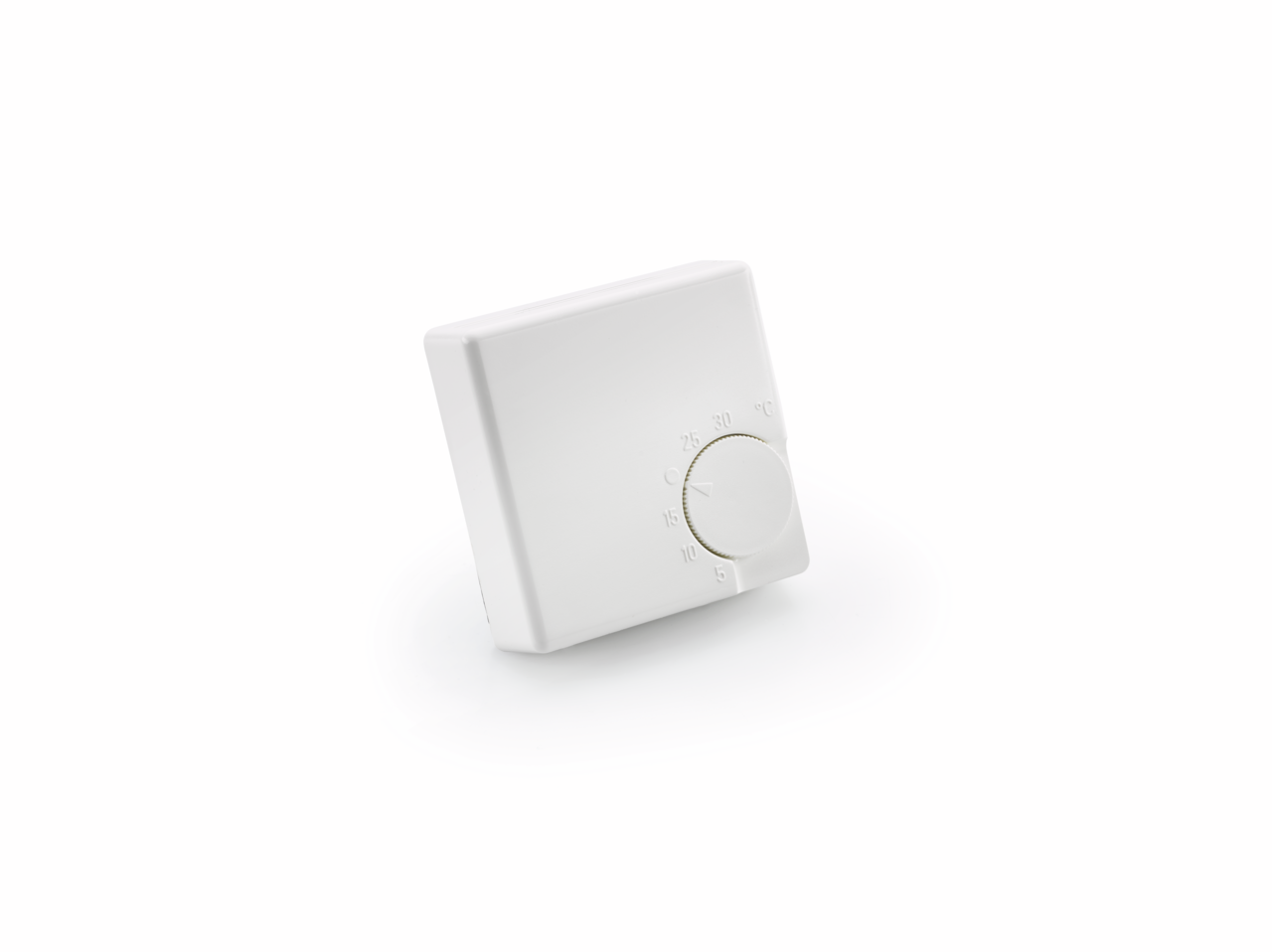

Room thermostat 230 V, white
Room thermostat 230 V, white
Product number: 6011011
  • Accessory
Details
3 variations available
Reinforced hose, L 700 mm
Reinforced hose, L 700 mm
Product number: 6011010
  • Hose
  • With ½" external thread and union nut.
  • Material: stainless steel
Details
2 variations available

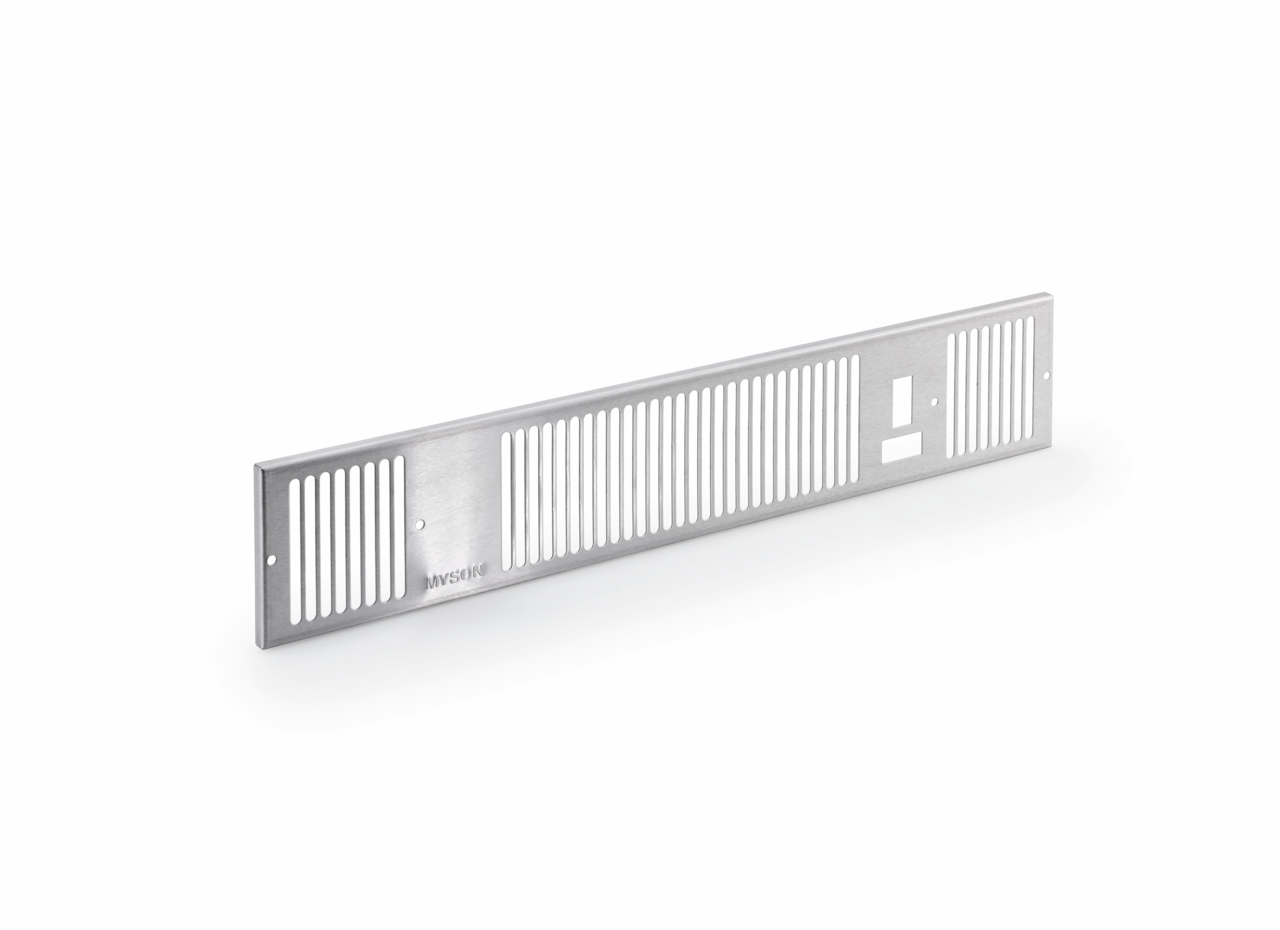

Kickspace-cover, KS 600, W 550 mm, stainless steel coloured
