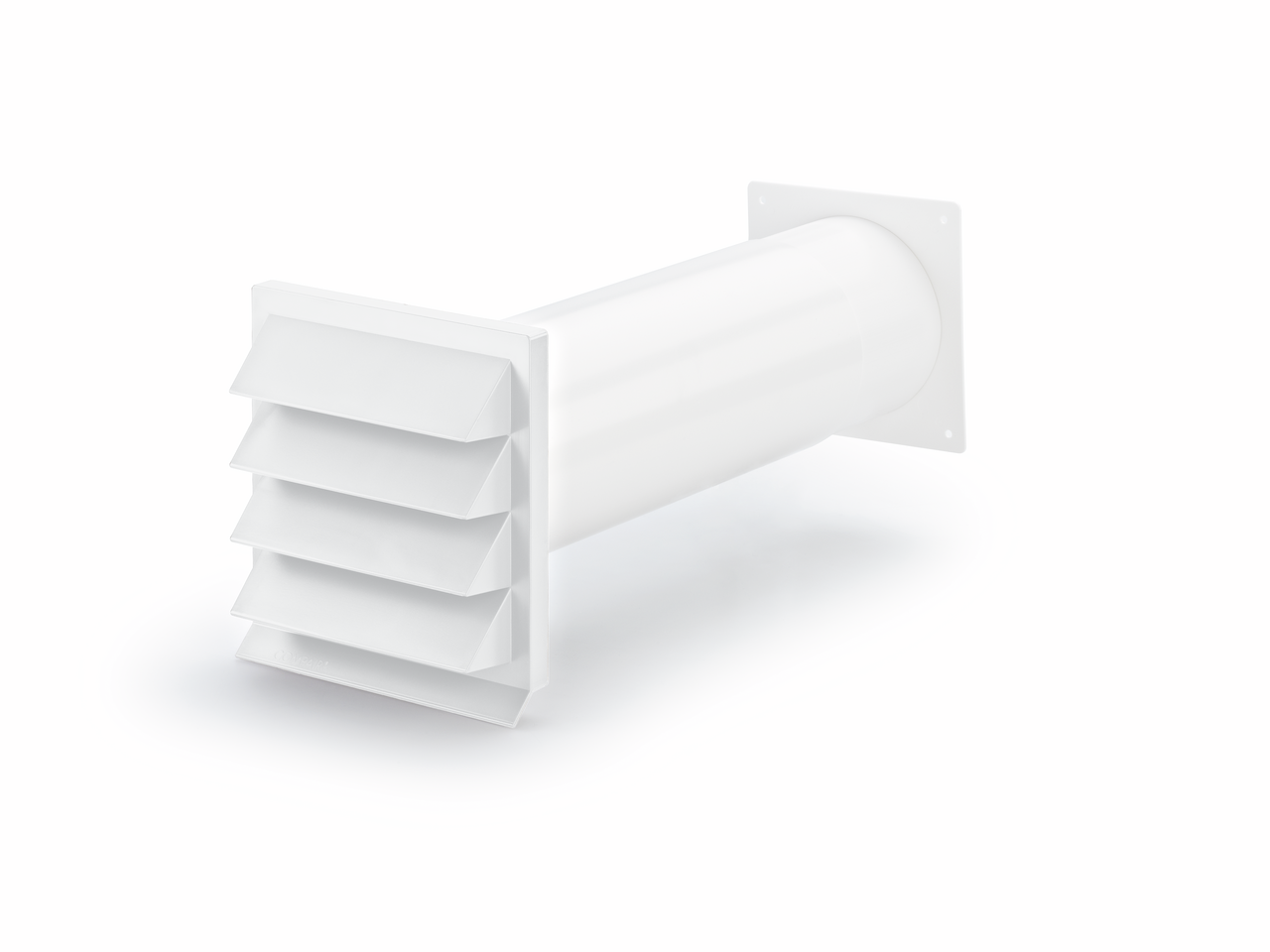

K-Klima-R 125/125 wall conduct, white
Product number:
4021073
- Wall sleeve
- installation in the wall
- Plug-in system for subsequent gluing
Description
K-Klima-R 125/125 wall conduct, white
The COMPAIR® flow K-Klima-R 125/125 wall box provides an effective wall duct for the extract air system. The patented COMPAIR® flow air duct system with integrated air guide bodies in transition pieces and horizontal bends transports the exhaust air quietly and with low pressure loss to the outside. The wall duct is suitable for connecting round pipes. With a pipe diameter of 125 mm, a wall opening of approx. 132 mm is required. The telescopic pipe allows the length of the feed-through to be adjusted from 420-620 mm depending on the wall thickness. In addition, the pipe can easily be shortened to a length of up to 100 mm. The existing backflow flap prevents air from the outside from entering the kitchen through the pipe. For additional protection against the weather, the telescopic wall duct is equipped with a high-quality external louvre in a louvre design. As it is available in several colours, it offers scope for personal design wishes.
With backpressure shutter, telescopic pipe and external blind.
— hose/tube connector Ø 125 mm
— connector depth 24 mm
— installation depth 420–620 mm, can be shortened to 100 mm
— wall penetration Ø about 132 mm
With backpressure shutter, telescopic pipe and external blind.
— hose/tube connector Ø 125 mm
— connector depth 24 mm
— installation depth 420–620 mm, can be shortened to 100 mm
— wall penetration Ø about 132 mm
Article type:
Wall sleeve
Colour:
white
Connection diameter:
125 mm
Form:
angular
Installation depth:
420–620 mm
Mounting/Fixing:
Plug-in system for subsequent gluing, installation in the wall
Output drive:
round
Properties:
can be shortened
Shortenability:
can be shortened to 100 mm
Support depth:
24 mm
System dimension:
125
