K-Klima-R 100/100 wall conduct, white
Product number:
4011079
- Wall sleeve
- installation in the wall
Description
K-Klima-R 100/100 wall conduct, white
The COMPAIR® norm K-Klima-R 100/100 wall box is a modern solution for exhaust air installation and connects indoor and outdoor areas as a wall duct. It is part of the COMPAIR® norm air duct system, which enables a permanently low dynamic pressure exhaust air duct in the kitchen. The wall duct is suitable for a round duct connection with a length of 350 mm. For the pipe diameter of 100 mm, a wall opening of approx. 103 mm is required. The pipe is telescopic so that the length of the lead-through can be individually adjusted from 420-620 mm depending on the wall thickness. To prevent air from outside being forced through the pipe into the kitchen, the telescopic wall box is equipped with a backflow flap. The high-quality external louvre in a louvre design reliably protects against the weather and gives the telescopic wall duct a modern look. There is a choice of different colour variants.
Incl. backpressure shutter, telescopic pipe and external blind.
— round pipe 350 mm long

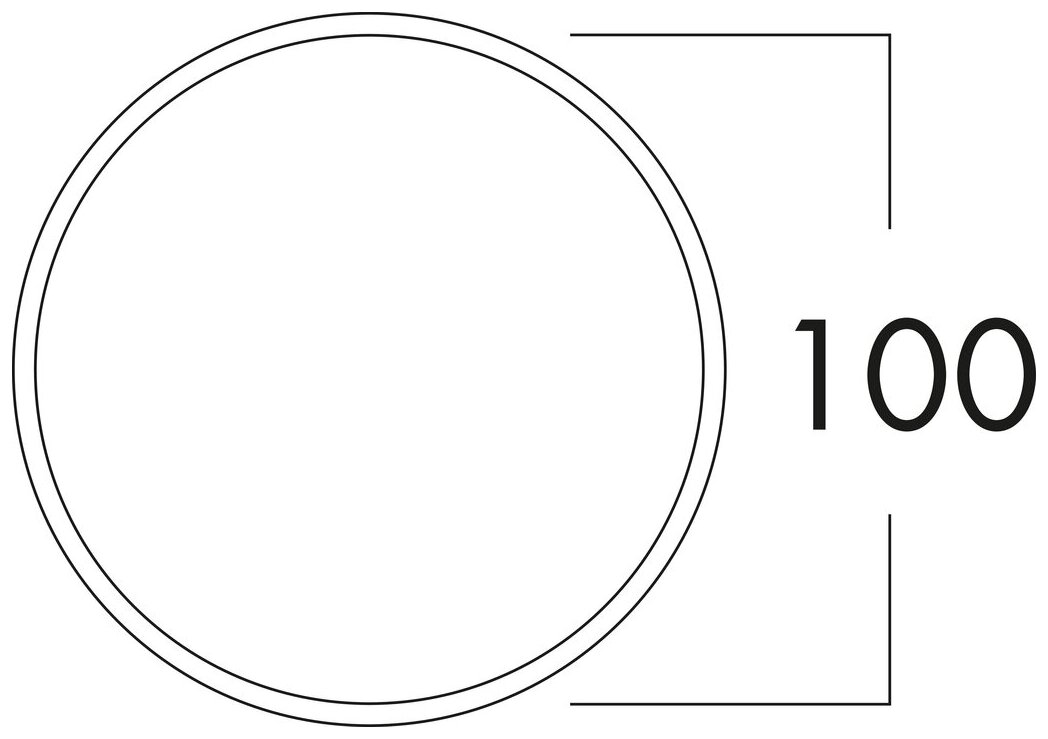

— pipe connector Ø 100 mm
— connector depth 24 mm
— installation depth 420–620 mm, can be shortened to 100 mm
— wall penetration Ø about 103 mm
Incl. backpressure shutter, telescopic pipe and external blind.
— round pipe 350 mm long
— pipe connector Ø 100 mm
— connector depth 24 mm
— installation depth 420–620 mm, can be shortened to 100 mm
— wall penetration Ø about 103 mm
Article type:
Wall sleeve
Colour:
white
Connection diameter:
100 mm
Discontinued item:
No
Installation depth:
420–620 mm
Mounting/Fixing:
installation in the wall
Output drive:
round
Properties:
can be shortened
Shortenability:
can be shortened to 100 mm
Support depth:
24 mm
System dimension:
100
