Product information:

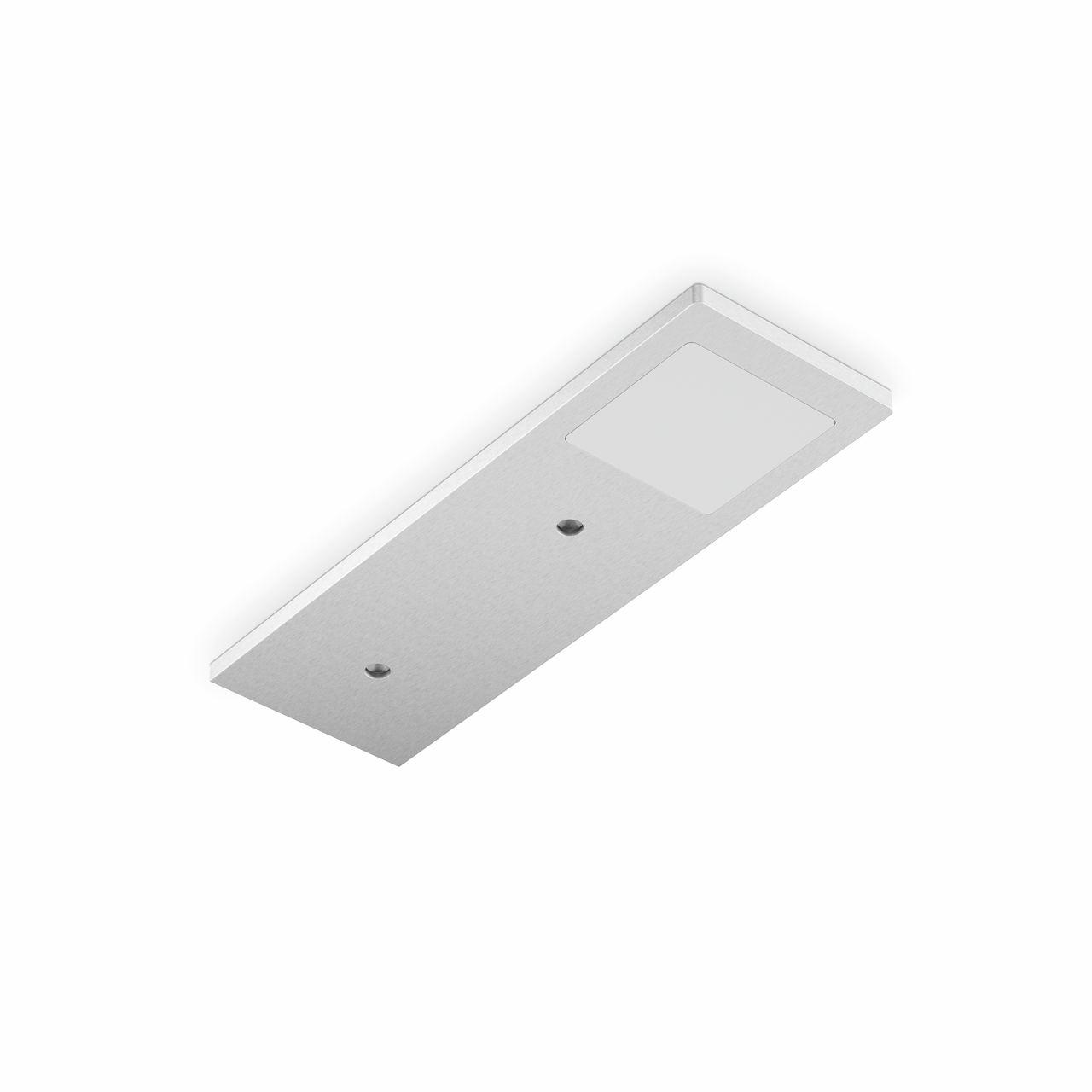

Forato LED aluminium coloured, single lamp w. s. d., 4000 K neutral white

Product number: 7062381

Under-cabinet/niche light
4000 K neutral white
3 watts

Variant type

Single luminaire without switch

Single luminaire with switch

Set-2

Set-3

Set-5

Colour temperature

3000 K warm white

4000 K neutral white

Prices will only be shown once logged in.

Description

Forato LED aluminium coloured, single lamp w. s. d., 4000 K neutral white

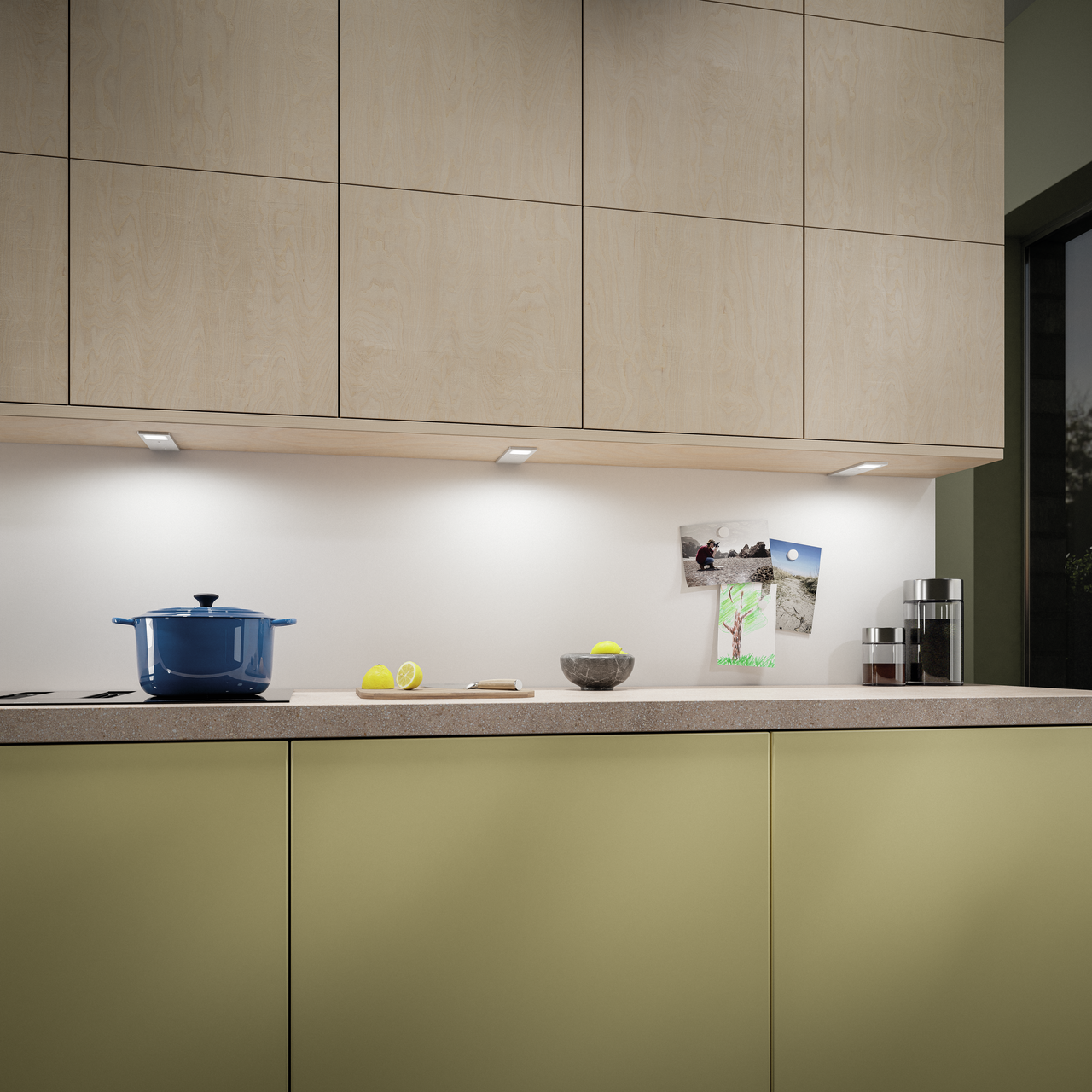

The Forato LED aluminium-coloured under-cabinet luminaire is suitable for mounting on wall cabinets and creates an attractive accent within the kitchen unit. It provides balanced lighting of the worktop to efficiently carry out activities such as food preparation and pre-rinsing of dishes. It is operated via a touch switch, including a dimmer function, for infinitely variable brightness control. To suit individual planning, the under-counter luminaire is available with LEDs that emit a warm white or neutral white light. Sets with up to a maximum of six luminaires are available for illuminating larger areas. These are mounted in series using the connecting cables supplied. Thanks to the mini-plug system, installation is very easy. The light sources are controlled centrally via the LED luminaire with touch switch. The complete package also includes the LED converter 20, which is optimally matched to the system.

Lamp for mounting from below Aluminium housing, aluminium coloured. Illumination without visible LED points with integrated switch. (screwed through)

Individual lamp without or with switch and dimmer (w. s. d.)
— 3 watt, 12 V, two colour ranges: 3000 K warm white, 4000 K neutral white
— 85 lumen/watt
— 200 mm supply line, 1800 mm connecting line with mini-plug-in system

Set 2, 3, 5 with switch consisting of:
— 1, 2 or 4 individual lamps without switch (7062350/7062380)
— 1 individual lamp with switch (7062351/7062381)
— 1 LED converter 20 (7062309)
— may be extended to 6 lamps
This product contains a light source with the energy efficiency class F.

Article type:

Luminaire

Certification:

Colour:

aluminium coloured

Colour temperature:

4000 K neutral white

Design:

Under-cabinet/niche light

Dimmer:

Yes

Dimming function (composite):

Yes

Energy efficiency class:

Homogeneous light field without visible LED points:

Yes

Housing colour:

aluminium

Illuminant included:

Yes

Illuminant power:

3 watts

Illuminant type:

LED

Length of connection cable (secondary):

1.800 mm

Length of the supply line (primary):

200 mm

Light yield:

85 lumen/watt

Material housing:

aluminium

Mounting/Fixing:

Base unit installation (wall unit/shelf), can be screwed down

Plug-in system:

with mini plug-in system

Replaceable illuminant:

Shape:

angular

Switch:

Yes

Touch function:

Yes

Transformer / converter required:

Yes, must be ordered separately

Variant type:

Single luminaire with switch

Depth:

60 mm

Height:

5,5 mm

Width:

185 mm

Downloads

Data sheet

Accessories

LED connection line, white, L 2000 mm

Product number: 7061049

with mini plug-in system
Connecting element

Subscription

Details

LED converter 20, grey

Product number: 7062309

20 watts
Luminaire slots: 6
2.000 mm

Subscription

Details
