Flex-Frame®, for cabinet widths 800/900/1000 mm
Product number:
5031038
- Mounting frames
- Material: powder coated steel sheet
Description
Flex-Frame®, for cabinet widths 800/900/1000 mm

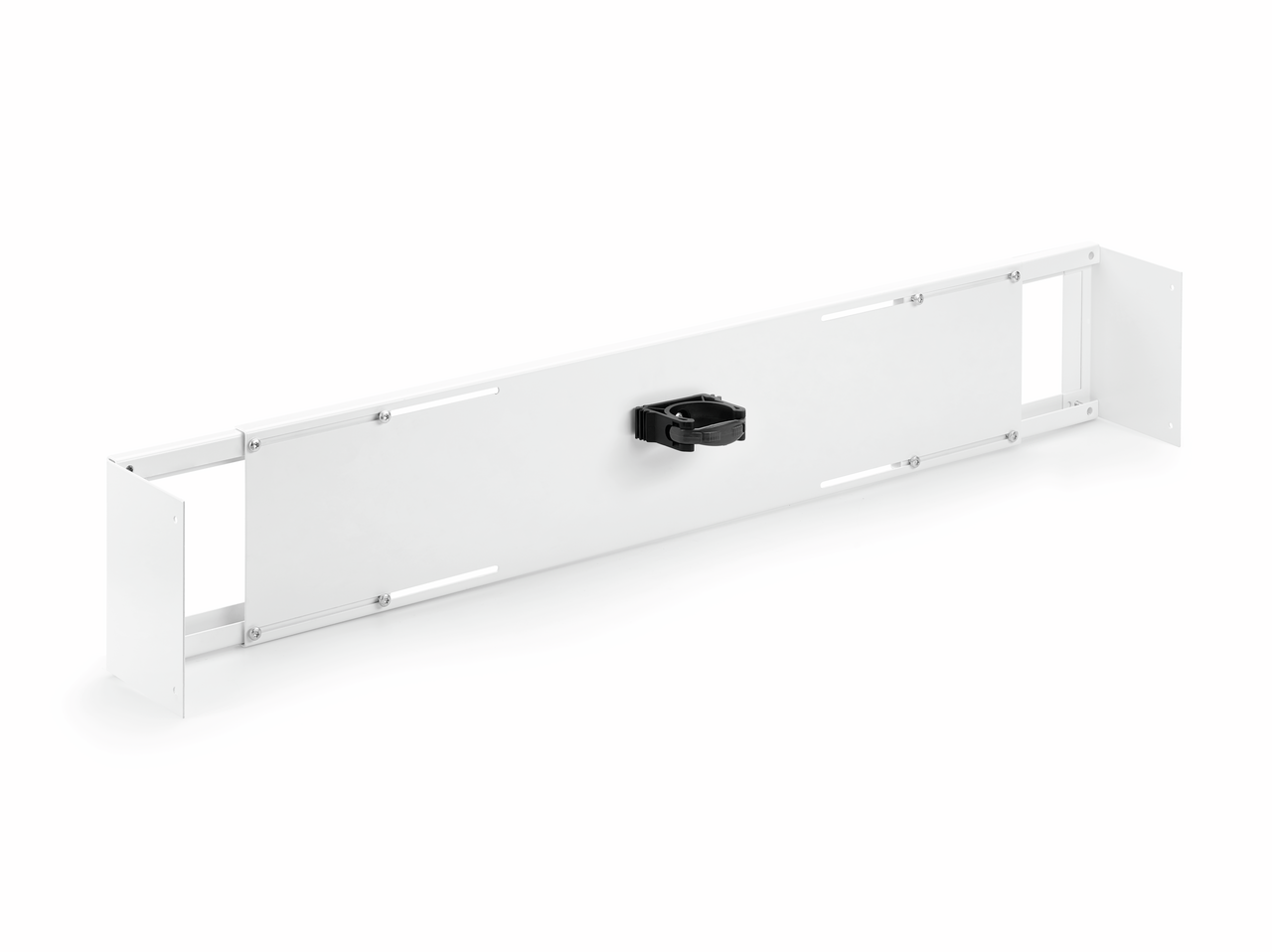

The telescopic Flex-Frame® mounting frame enables clean installation of the water supply and drainage in the sink base unit. Commercially available angle valves can be fixed centrally in the clamp device. In addition, surface-mounted sockets are integrated by means of a press fitting and wall washers. In addition, the organiser element for the sink base unit is used in combination with pipe clamps and, if required, with the Naber Water Box as a central water distributor. It is manufactured in solid quality from sheet steel with powder-coated surfaces and is suitable for cabinet widths of 500/600 or 800/900/1000 mm.
Mounting frame sheet steel, white (RAL 9010), telescopic.

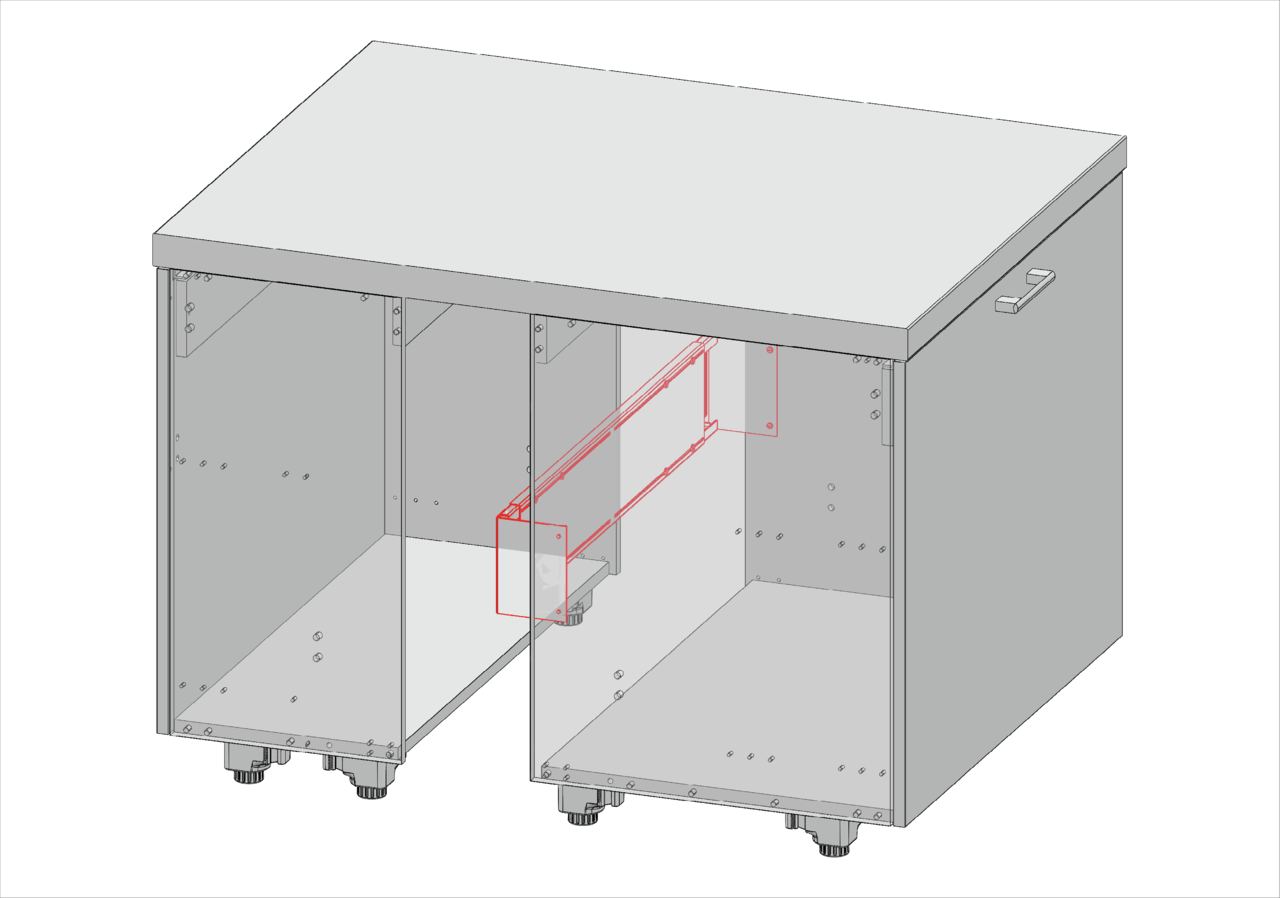

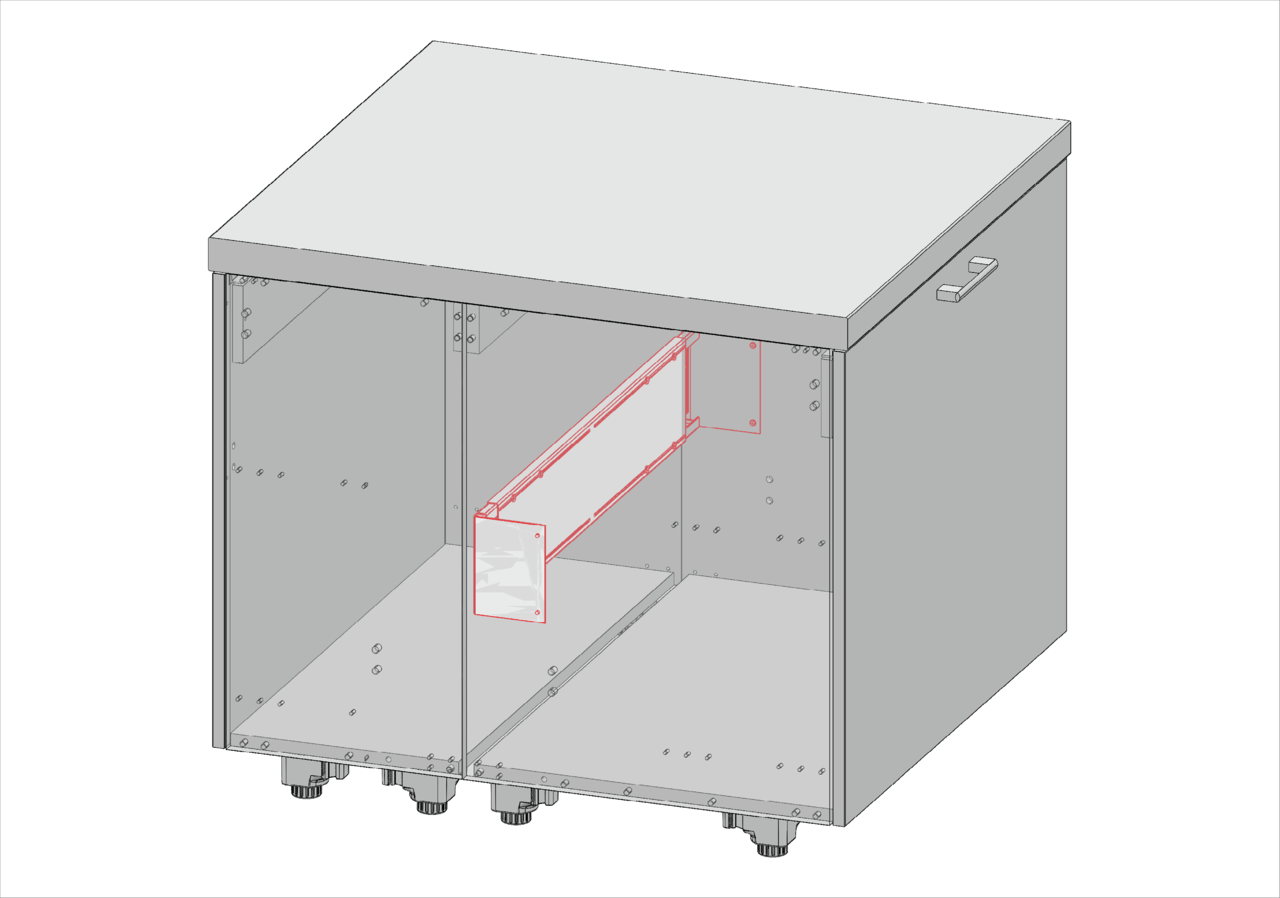

— for a clear mounting level in kitchen base units
— installation options for commercially available angle valves (1/2", 3/8") in connection with wall discs/press fittings for surface-mounted sockets, pipe clamps for HT-pipes, Naber Water Box, etc.
— suitable for cabinet widths 500/600 or 800/900/1000 mm (16+19 mm body thickness)
— high-quality appearance due to scratch- and impact-resistant powder coating
— easy to install due to prior fixing of the frame to the required cabinet width
Mounting frame sheet steel, white (RAL 9010), telescopic.
— for a clear mounting level in kitchen base units
— installation options for commercially available angle valves (1/2", 3/8") in connection with wall discs/press fittings for surface-mounted sockets, pipe clamps for HT-pipes, Naber Water Box, etc.
— suitable for cabinet widths 500/600 or 800/900/1000 mm (16+19 mm body thickness)
— high-quality appearance due to scratch- and impact-resistant powder coating
— easy to install due to prior fixing of the frame to the required cabinet width
Article type:
Mounting frames
Cabinet width:
800/900/1000 mm
Colour:
white (RAL 9010)
Further:
for a clear mounting level in kitchen base units, installation options for commercially available angle valves (1/2", 3/8") in connection with wall discs/press fittings for surface-mounted sockets, pipe clamps for HT-pipes, Naber Water Box, etc.

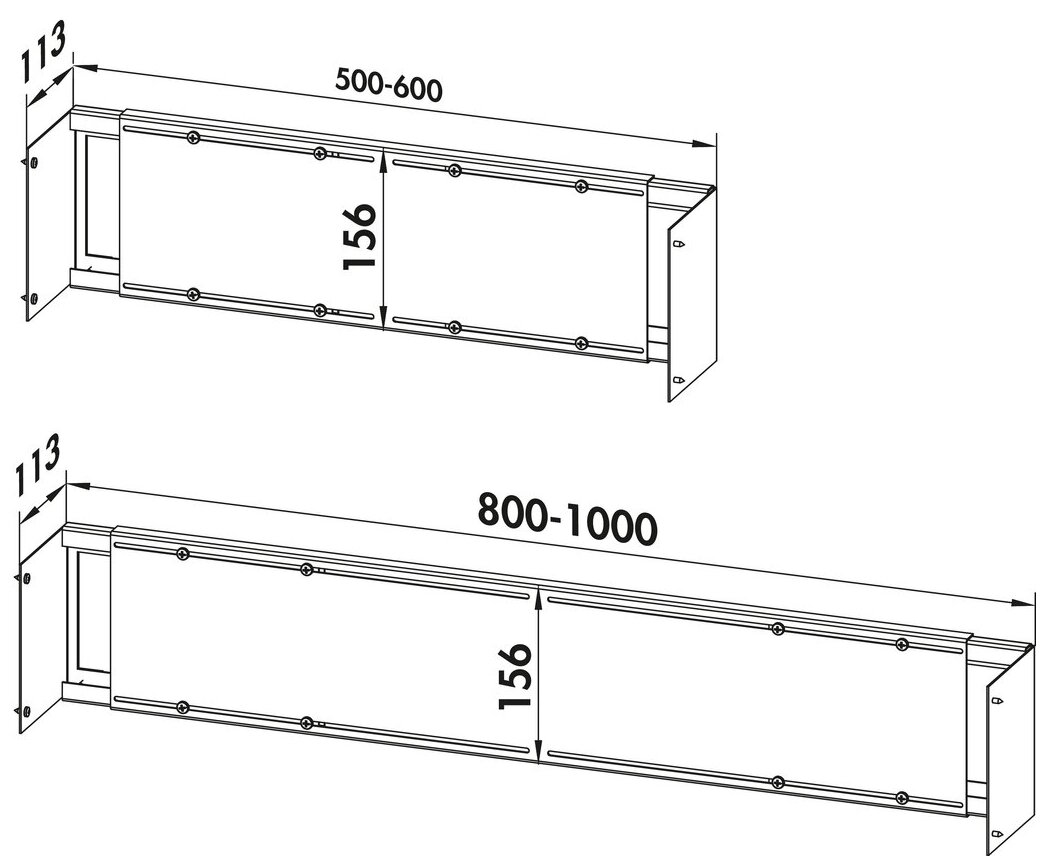

Height:
113 mm
Length:
800 - 1.000 mm
Material:
powder coated steel sheet
Mounting/Fixing:
surface mounting
Note:
easy to install due to prior fixing of the frame to the required cabinet width
Properties:
Scratch-resistant, impact-proof
Width:
156 mm
