F-bion 125 deflector 90°, white
Product number:
4033031
- Connecting element
- Plug-in system for subsequent gluing
- 272 mm
Description
F-bion 125 deflector 90°, white
The COMPAIR® flow F-bion 125 90° diverter is designed for connecting extremely powerful bonnets to the matching exhaust air system. Thanks to the intelligent design, the pressure loss is minimised so that vapour flows generated in the kitchen are reliably diverted to the outside. The moulded part for connections with a diameter of 125 mm requires slightly more space during installation due to its component size.
Energy efficient solution for extremely high performance hoods.
For direct hood connection with integrated sleeve.
For the installation, please note the space needed due to the component size!
Energy efficient solution for extremely high performance hoods.
For direct hood connection with integrated sleeve.
For the installation, please note the space needed due to the component size!
Article type:
Connecting element
Colour:
white
Form:
angular
Height:
220 mm
Length:
272 mm
Material:
Polystyrene
Mounting/Fixing:
Plug-in system for subsequent gluing
Note:
For the installation, please note the space needed due to the component size
Outer diameter:
125 mm
Output drive:
angular, round
System dimension:
125
Width:
174 mm
Downloads

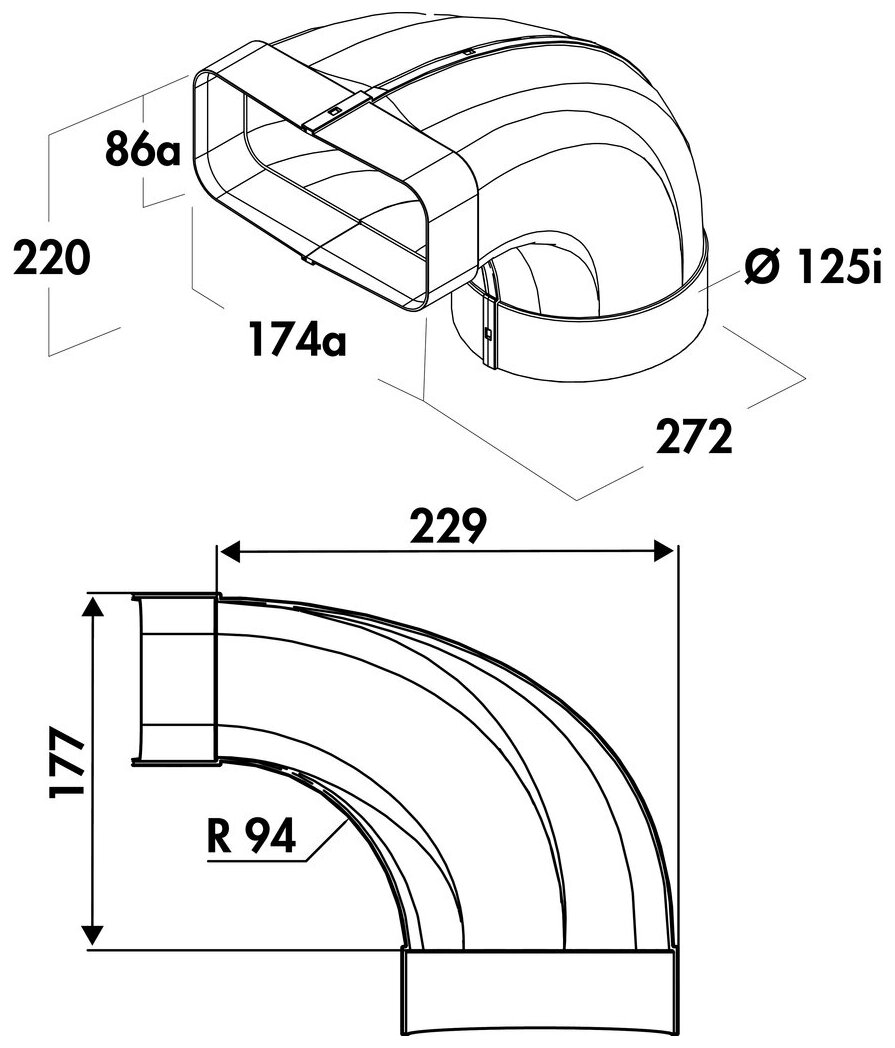

Measures
