F-RBH 150 pipe bend horizontal 90°, white
Product number:
4043003
- Connecting element
- Plug-in system for subsequent gluing
- 286 mm
Description
F-RBH 150 pipe bend horizontal 90°, white
With the COMPAIR® flow F-RBH 150 horizontal 90° pipe bend, the direction of the air flow can be changed by an angle of 90°. It has moulded sockets on both sides and, with its air guide bodies, enables optimum flow behaviour with minimum resistance. In the COMPAIR® flow air duct system, the air flows around the bends energy-efficiently and with less noise. With its latching element, the moulded part can be easily and securely joined with the universal connector.
With guide vanes and sleeves integrated on both sides.
With guide vanes and sleeves integrated on both sides.
Article type:
Connecting element
Colour:
white
Form:
angular

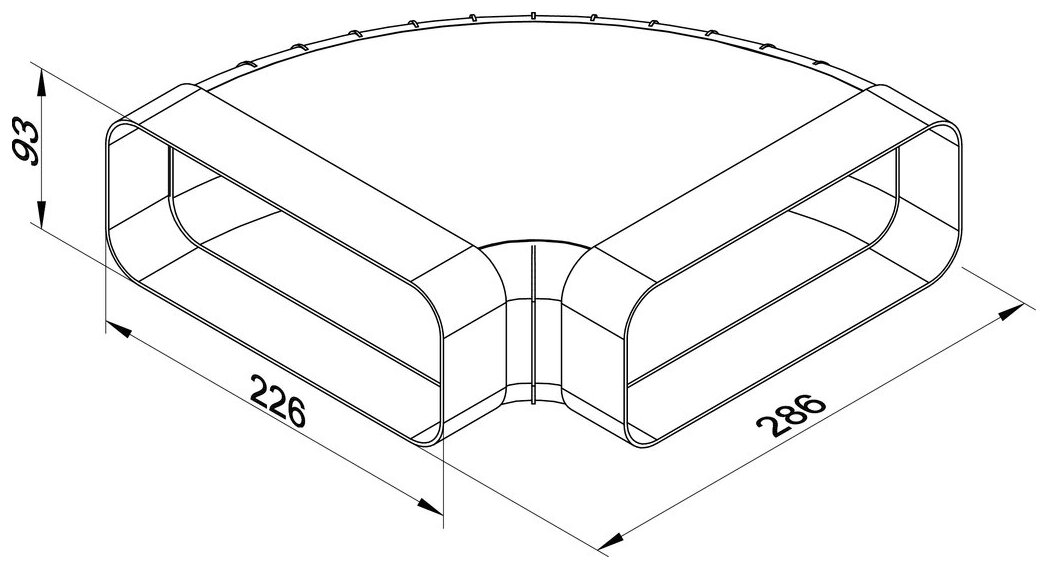

Height:
93 mm
Length:
286 mm
Material:
polypropylene
Mounting/Fixing:
Plug-in system for subsequent gluing
Outer diameter:
150 mm
Output drive:
angular
System dimension:
150
Width:
226 mm
