Evoline® Wing 1 USB A+C, with earthed plug socket

Product number: 8031192

Surface-mounted socket element
1 x earthed plug socket
angular

Version sockets

1 x earthed plug socket

1 x with Belgian/French socket

Prices will only be shown once logged in.

Description

Evoline® Wing 1 USB A+C, with earthed plug socket

The CON-AKTIV^® built-in socket Evoline^® Wing 1 USB A + C is an intelligent solution for a hidden power supply inside drawers. The cable routing designed for the intended use with two flexible angled arms proves to be particularly advantageous. Based on this, the power supply cable is prevented from falling through downwards. The model is a single socket, which is complemented by two USB ports of type A and C. The socket can be used to plug in kitchen gadgets and time-saving appliances. Kitchen gadgets can be connected and mobile phones or tablets can be charged at the same time. Installation in drawers is possible from a width of 400 mm and a pull-out length of 590 mm. The set includes all the necessary fastening elements for wooden and metal furniture parts as well as an extra-long mains connection cable. The Schuko plug is enclosed loose.

Socket element inc. cable routing. 1-fold. With 2-fold USB A + C charger (charging station). Mounting elements for wooden and metal furniture items are included in the scope of delivery.

— silver
— USB charger type A+C, 5 V, 2100 mA
— 2500 mm mains connection line, two-pin earthed plug supplied loose
— Suitable for drawers from 400 mm wide and up to an pull-out length of 590 mm.

Article type:

Socket element

Colour:

silver

Colour bezel:

black

Colour socket:

black

Housing colour:

silver

Incl. mounting material:

incl. mounting material

Length of the supply line (primary):

2.500 mm

Mains plug loosely enclosed:

Yes

Material housing:

plastic

Mounting/Fixing:

surface mounting

Number of USB ports:

Number of sockets (total):

Shape:

angular

Suitable for:

suitable for drawers from 400 mm wide and up to an pull-out length of 590 mm

Total charging current:

max. 2100 mA for fast charging

Type of socket element:

Surface-mounted socket element

USB type:

USB-A, USB-C

Version sockets:

1 x earthed plug socket

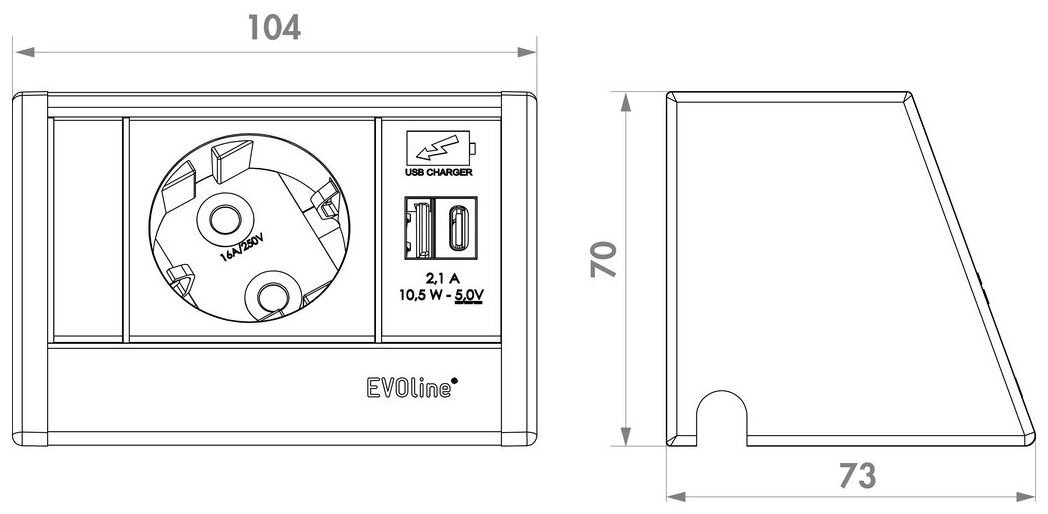

Depth:

73 mm

Height:

70 mm

Width:

104 mm
