Evoline® R Dock, silver coloured
Product number:
8031146
- Surface-mounted socket element
- 3 x earthed plug socket
- angular
Description

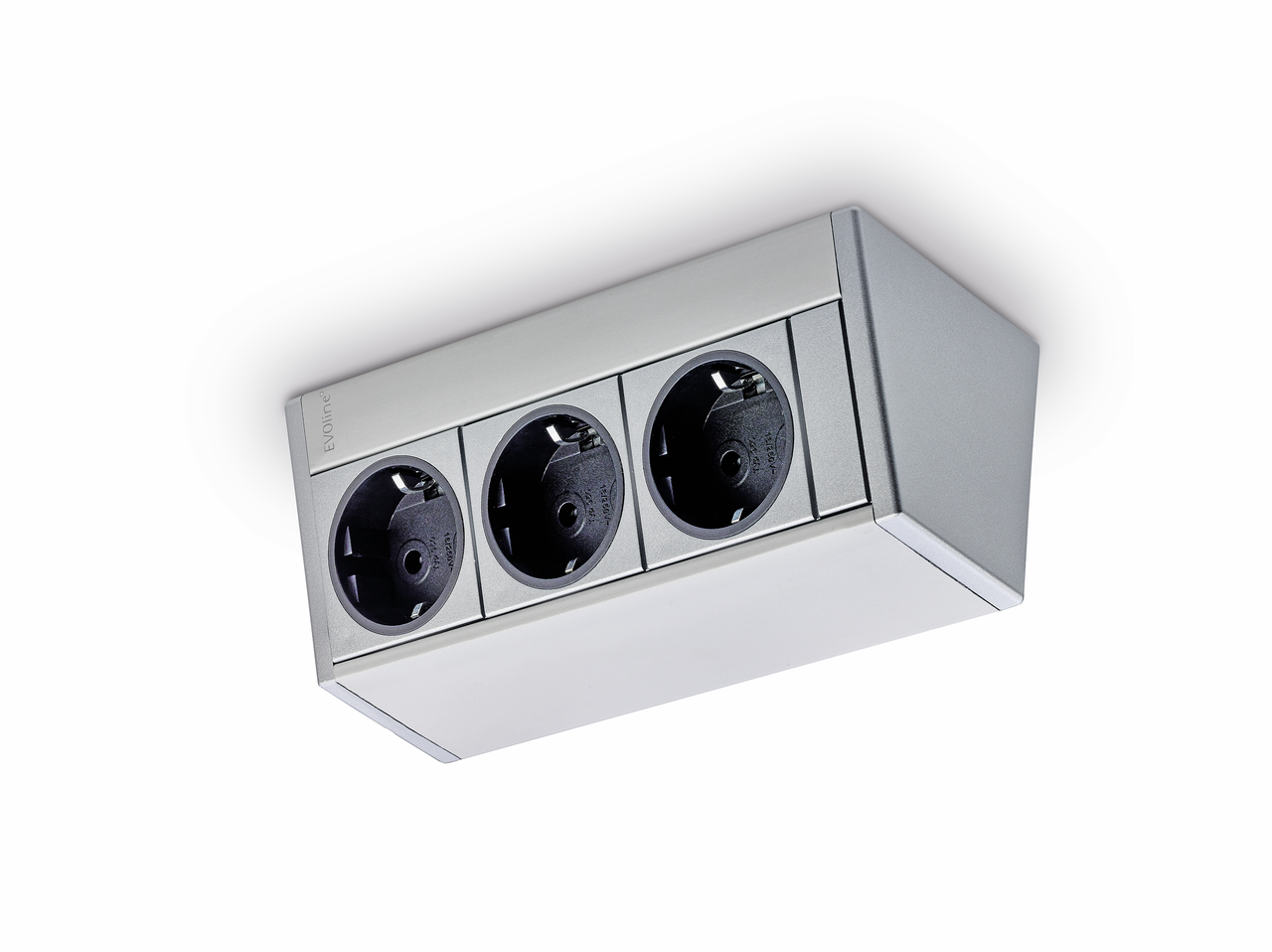

Evoline® R Dock, silver coloured
With its elegant design, the trapezoidal CON-AKTIV® 3-way socket Evoline® R Dock blends into the kitchen design. It is suitable for installation under wall units or shelves as well as on the worktop. In the twinkling of an eye, the kettle or toast machine can be safely supplied with power. The socket element has three Schuko sockets placed next to each other in a row. They can be used equally with Euro plugs. For easy installation, the multiple socket is screwed directly under the cabinet body or onto the worktop. A fixing set is included for this purpose. The cable outlet is located at the back and is equipped with a 250 cm long mains connection cable. The corresponding Schuko plug can be connected here. The flush-mounted socket outlet impresses with its high-quality workmanship. Its housing is made of robust aluminium and has easy-care features.
Socket element. 3-fold. Especially suited for installation below wall-mounted cabinets, shelves or under the work surface.
— housing made of aluminium
— 70 x 179 x 73 mm (H x W x D)
— 2500 mm mains connection line, earthing contact plug enclosed loosely
— attachment set
— cable outlet back (below/top)
Socket element. 3-fold. Especially suited for installation below wall-mounted cabinets, shelves or under the work surface.
— housing made of aluminium
— 70 x 179 x 73 mm (H x W x D)
— 2500 mm mains connection line, earthing contact plug enclosed loosely
— attachment set
— cable outlet back (below/top)
Article type:
Socket element
Cable outlet:
cable outlet back (below/top)
Certification:
CE, TÜV
Colour:
silver
Colour socket:
black
Depth:
73 mm
Form:
angular
Height:
70 mm
Housing colour:
aluminium
Incl. mounting material:
incl. mounting material
Length of the supply line (primary):
2.500 mm
Mains plug loosely enclosed:
Yes
Material:
aluminium
Material housing:
aluminium
Mounting/Fixing:
Base unit installation (wall unit/shelf), on the worktop
Number of USB ports:
0
Number of sockets (total):
3
Switch for external lighting:
No
Type of socket element:
Surface-mounted socket element
Version sockets:
3 x earthed plug socket
Width:
179 mm
