Evoline® Port 1, with earthed plug socket, lid silver coloured
Product number:
8031130
- Retractable socket element
- 3 x earthed plug socket
- Length of the supply line (primary): 2.500 mm
Description
Evoline® Port 1, with earthed plug socket, lid silver coloured

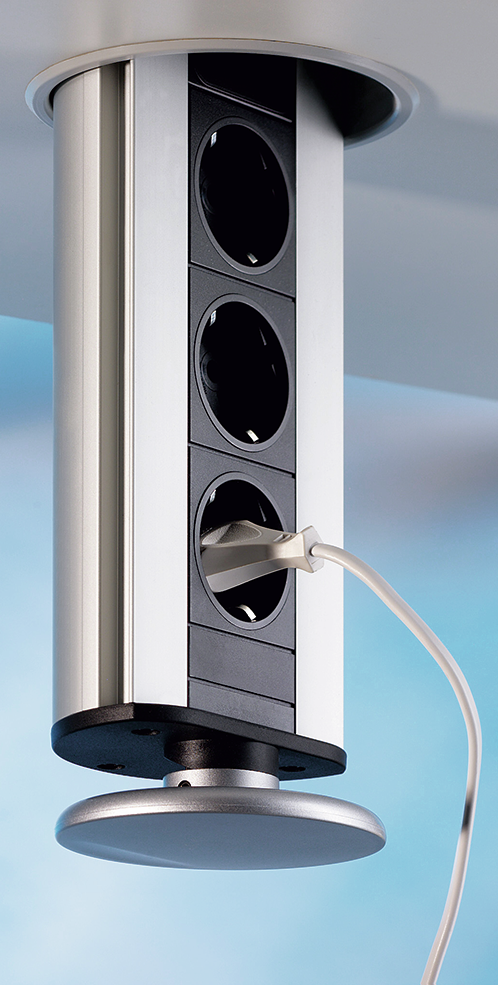

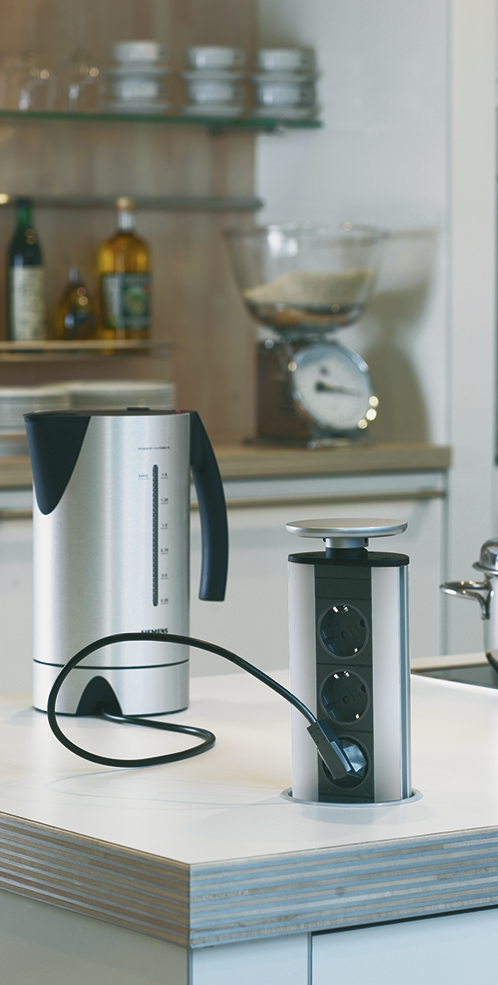

The retractable CON-AKTIV® socket Evoline® Port 1 offers an elegant and functional solution for supplying power to kitchen appliances that are in temporary use. It can be installed either in the worktop of kitchen islands or under wall cabinets and is ready for use in no time at all. When not in use, it blends discreetly and flush with the carcase or worktop. Just press the cover button and the energy box pulls out effortlessly. Then the three Schuko sockets arranged one above the other can be used to connect the kettle or mixer quickly and safely. When installing above a drawer or pull-out, the installation depth of around 280 mm should be taken into account. The 3-way socket also needs space in the wall unit to be able to be inserted. Depending on the installation direction, the cable outlet is at the bottom or top. A 250 cm long mains cable is connected. A Schuko plug, which is supplied loose, can be fitted as an option. The retractable socket strip is made of durable and robust plastic. It is available in two different colours.
Energy box. Concealed. With 3 sockets for wall-mounted cabinets or worktops. Easy, guided extraction thanks to an easy-to-press button which also guides the cable neatly when reclosing.
— H 280 mm, extended H 210 mm
— 2500 mm mains connection line, earthing contact plug enclosed loosely
— drill Ø ca. 102 mm
— cable outlet below
Energy box. Concealed. With 3 sockets for wall-mounted cabinets or worktops. Easy, guided extraction thanks to an easy-to-press button which also guides the cable neatly when reclosing.
— H 280 mm, extended H 210 mm
— 2500 mm mains connection line, earthing contact plug enclosed loosely
— drill Ø ca. 102 mm
— cable outlet below
Article type:
Socket element
Cable outlet:
cable outlet below
Certification:
CE, TÜV
Colour:
silver
Colour socket:
black
Drilling diameter:
102 mm
Height:
280 mm
Height extended:
210 mm
Length of the supply line (primary):
2.500 mm
Mains plug loosely enclosed:
Yes
Mounting/Fixing:
for hanging cabinets, installation, in the worktop
Number of sockets (total):
3
Opening mechanism:
Push & Pull
Type of socket element:
Retractable socket element
Version sockets:
3 x earthed plug socket
Accessories
7
variations available
Hole saw, Ø 102 mm, for Evoline® Port
Product number:
7053158
- Drilling diameter: 102 mm
- Max. cutting depth: 38 mm
- incl. centre drill
Recommendations
7
variations available
Hole saw, Ø 102 mm, for Evoline® Port
Product number:
7053158
- Drilling diameter: 102 mm
- Max. cutting depth: 38 mm
- incl. centre drill
