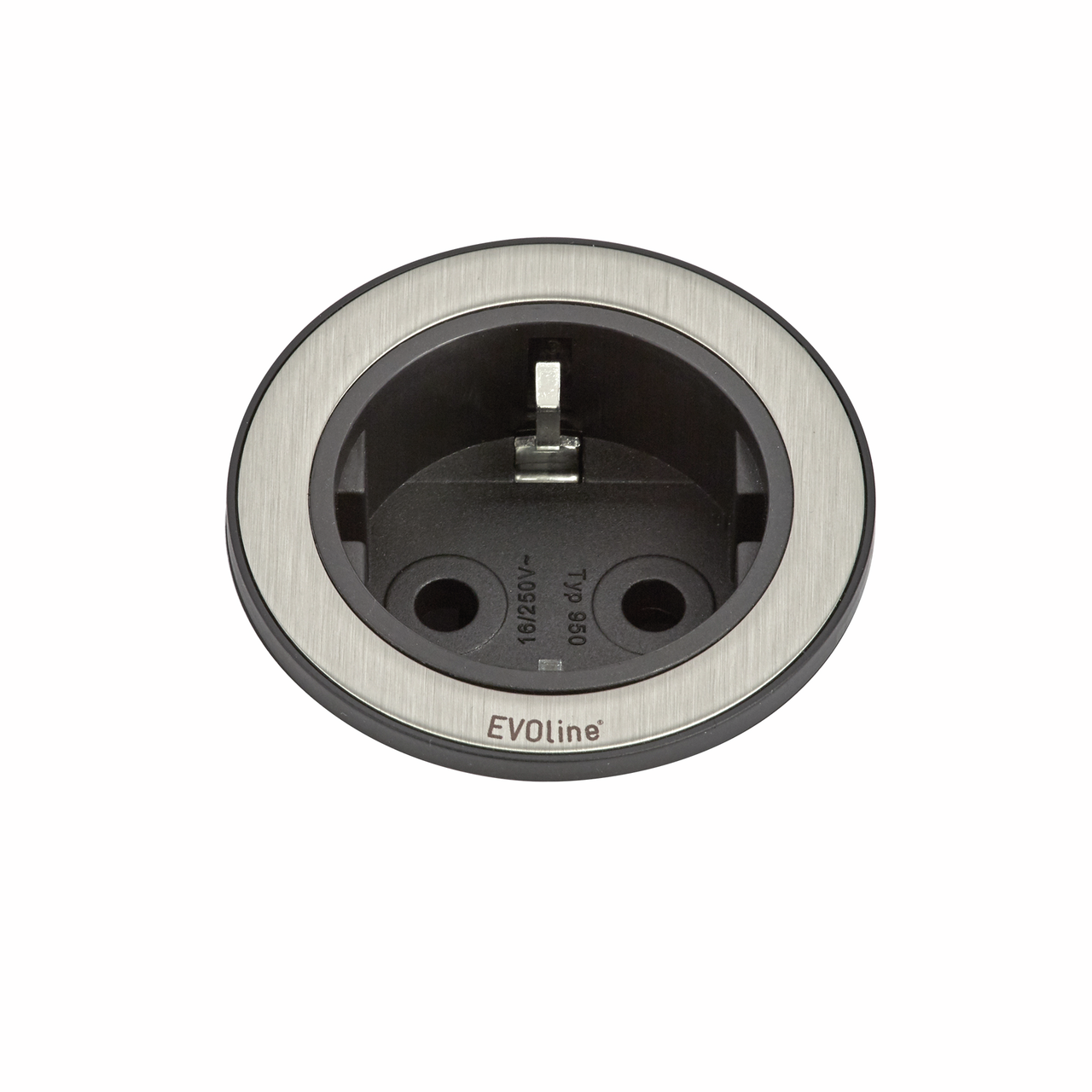

Evoline® One single socket, ring brushed stainless steel
Product number:
7053181
- Built-in socket element
- 1 x earthed plug socket
- round
Description
Evoline® One single socket, ring brushed stainless steel
The CON-AKTIV® Evoline® One built-in socket outlet is characterised by its consistent and reduced design in a classic round shape. It allows flush-mounted installation in worktops, on the side wall of a kitchen cabinet and in the area of the front panel. It is a single socket for temporary and permanent connection of electrically operated kitchen aids. If required, several sockets are placed next to each other or on top of each other to connect different appliances at the same time. The necessary level of safety in the kitchen is ensured by the increased protection against accidental contact. The set includes an extra-long mains connection cable for flexible installation, with cable routing on the side or underside. To realise individual ideas, the single socket outlet is available with decorative rings in different designs. If required, matching covers are recommended as optionally available accessories.
Socket element, 1-fold. For installation in the worktop, front panel or side wall.
— drill Ø 54 mm
— installation depth 50 mm
— for plate thicknesses from 9 mm
— 2500 mm mains connection line, two-pin earthed plug supplied loose
— socket with contact protection
— flush mounting possible
— cable outlet on the side or bottom
Socket element, 1-fold. For installation in the worktop, front panel or side wall.
— drill Ø 54 mm
— installation depth 50 mm
— for plate thicknesses from 9 mm
— 2500 mm mains connection line, two-pin earthed plug supplied loose
— socket with contact protection
— flush mounting possible
— cable outlet on the side or bottom
Article type:
Socket element
Cable outlet:
cable outlet on the side or bottom
Certification:
CE, TÜV
Colour:
Stainless steel brushed
Colour bezel:
Stainless steel brushed
Colour socket:
black
Drilling diameter:
54 mm
Flush mountable:
Yes
Form:
round
Installation depth:
50 mm
Length of the supply line (primary):
2.500 mm
Mains plug loosely enclosed:
Yes
Mounting/Fixing:
front panel, installation, on the worktop, side wall
Number of sockets (total):
1
Touch protection ("child safety lock"):
with increased contact protection
Type of socket element:
Built-in socket element
Version sockets:
1 x earthed plug socket
Worktop thickness:
9 mm
Accessories

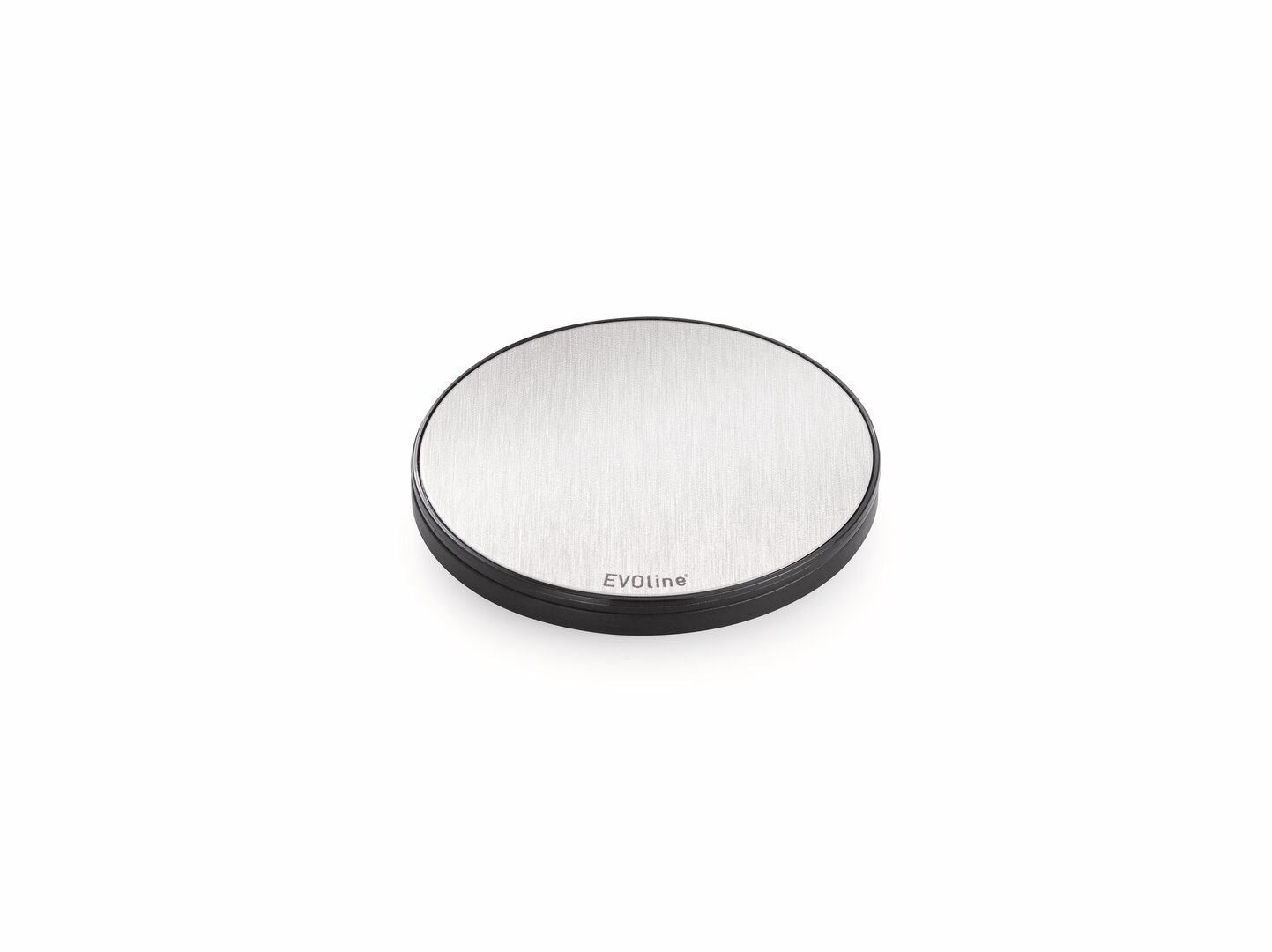

Evoline® One Lid with stainless steel inlay
Subscription
Product number:
7053187
- Socket element
- Stainless steel
7
variations available
Hole saw, Ø 54 mm, for One
Subscription
Product number:
7053159
- Drilling diameter: 54 mm
- Max. cutting depth: 38 mm
- incl. centre drill
