Evoline® BackFlip USB A, with Swiss sockets, flush-mount H 2,6 mm, stainless steel
Product number:
8031156
- Built-in socket element
- 2 x with Swiss socket
- angular
Description

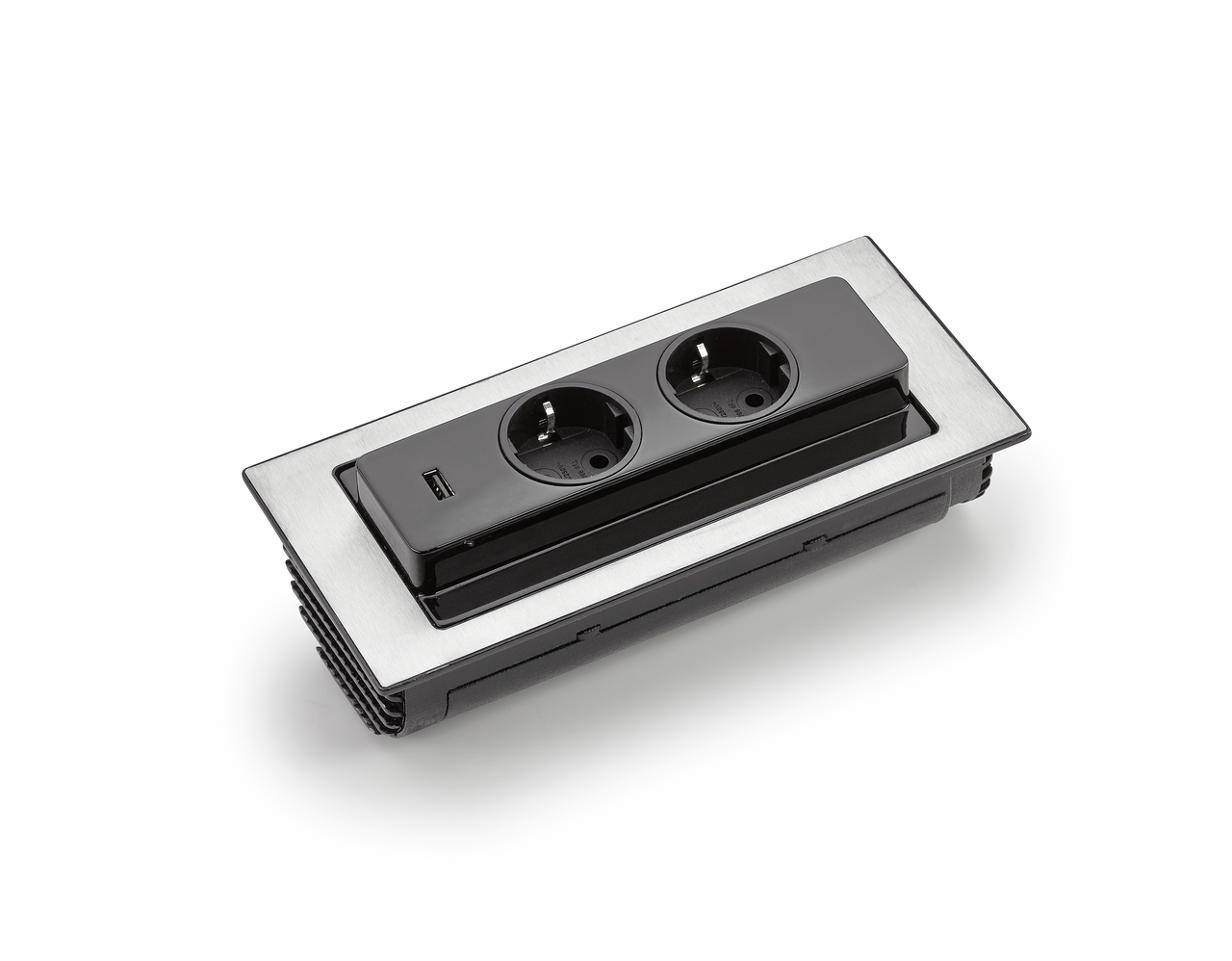

Evoline® BackFlip USB A, with Swiss sockets, flush-mount H 2,6 mm, stainless steel
When closed, the rotatable CON-AKTIV® built-in socket Evoline® BackFlip USB A blends harmoniously into the overall appearance of the kitchen unit. It is opened by lightly tapping the cover with a finger. The two sockets are high enough above the worktop so that water cannot harm them. There is also a USB type A interface for charging smartphones and other devices. The installation is flush with the surface. The installation depth of the double socket is 53 mm to enable installation above drawer areas. The cable outlet is located on the rear left side. With a length of 2500 mm, the connecting cable included in the set offers sufficient room for manoeuvre during installation. To match the existing interior, the modern socket element including USB charging station is available in various surface designs and is optionally made of glass or stainless steel. In addition to classic Schuko sockets, versions with Belgian-French and Swiss sockets are also available.
Socket element. 2-fold. Rotating with USB A charger (base station).
— installation depth 53 mm

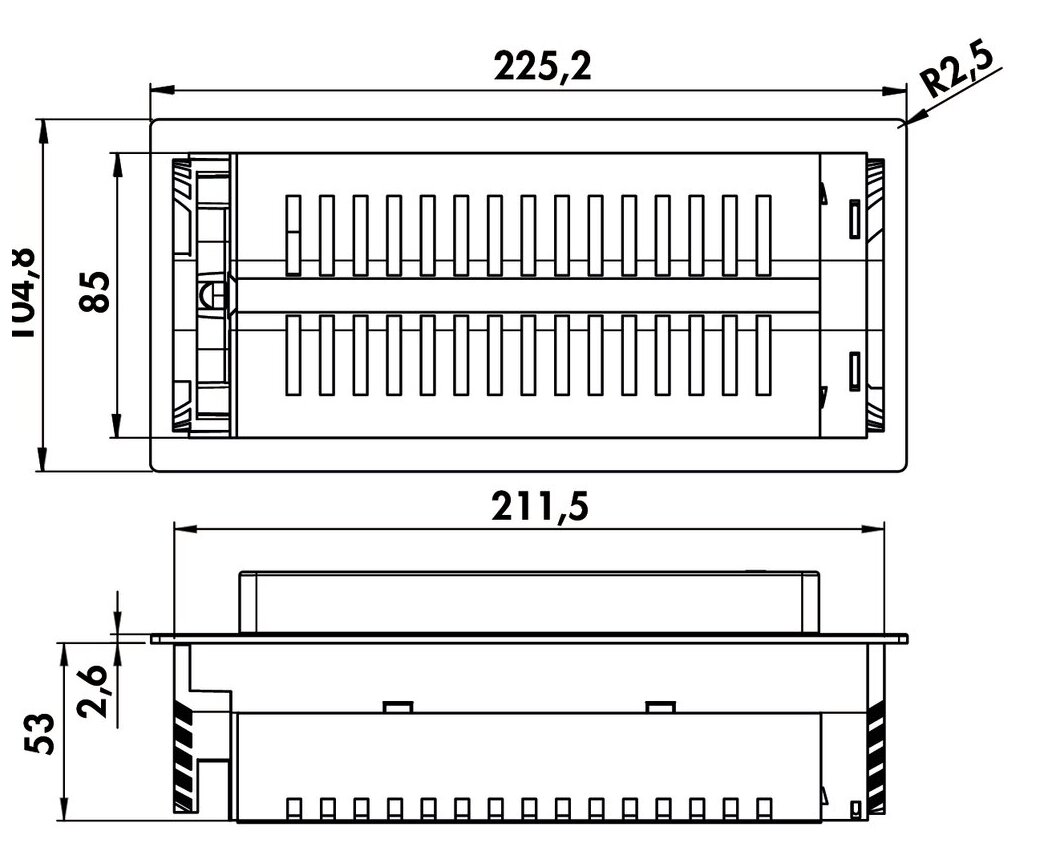

— cut-out dimensions ca. 215 x 88 mm
— 1 x USB charger type A, 5 VDC, IA/I out: 2100 mA
— 2500 mm mains connection line, earthing contact plug enclosed loosely
— flush-mountable
— cable outlet back left
Socket element. 2-fold. Rotating with USB A charger (base station).
— installation depth 53 mm
— cut-out dimensions ca. 215 x 88 mm
— 1 x USB charger type A, 5 VDC, IA/I out: 2100 mA
— 2500 mm mains connection line, earthing contact plug enclosed loosely
— flush-mountable
— cable outlet back left
Artikeltyp:
Socket element
Anzahl Steckdosen (gesamt):
2
Anzahl USB-Ports:
1
Art des Schalters:
Touch switch
Art des Steckdosenelements:
Built-in socket element
Ausführung Steckdosen:
2 x with Swiss socket
Ausschnittmaß:
approx. 215 x 88 mm
Breite:
225,2 mm
Deckel-/Blendentyp:
Electric
Eigenschaften:
rotatable
Einbautiefe:
53 mm
Farbe:
Stainless steel
Farbe Blende:
Stainless steel
Farbe Steckdose:
black
Form:
angular
Gesamtladestrom:
2100 mA (USB-A)
Kabelauslass:
cable outlet back left
Länge der Zuleitung (primär):
2.500 mm
Material Blende:
stainless steel
Montage/Befestigung:
installation, on the worktop
Netzstecker lose beigelegt:
Yes
Tiefe:
104,8 mm
USB-Typ:
USB-A
Zertifizierung:
CE, TÜV
flächenbündig einbaubar:
Yes, H 2.6 mm
Öffnungsmechanismus:
Push-to-open
