Awards:
Product information:
E-Jal top external blind, stainless steel
Product number:
4022021
- External blind
- surface mounting
Prices will only be shown once logged in.
Description
E-Jal top external blind, stainless steel
With its elegant louvre design, the COMPAIR® flow E-Jal top external louvre forms a chic finish to the extract air system. It not only meets visual requirements, but also optimises the flow of extract air at the same time. The closure flap has a backflow flap for connection to the COMPAIR® wide duct with a size of 125 mm. Stainless steel was used for manufacturing, making the multi-leaf damper durable and robust.

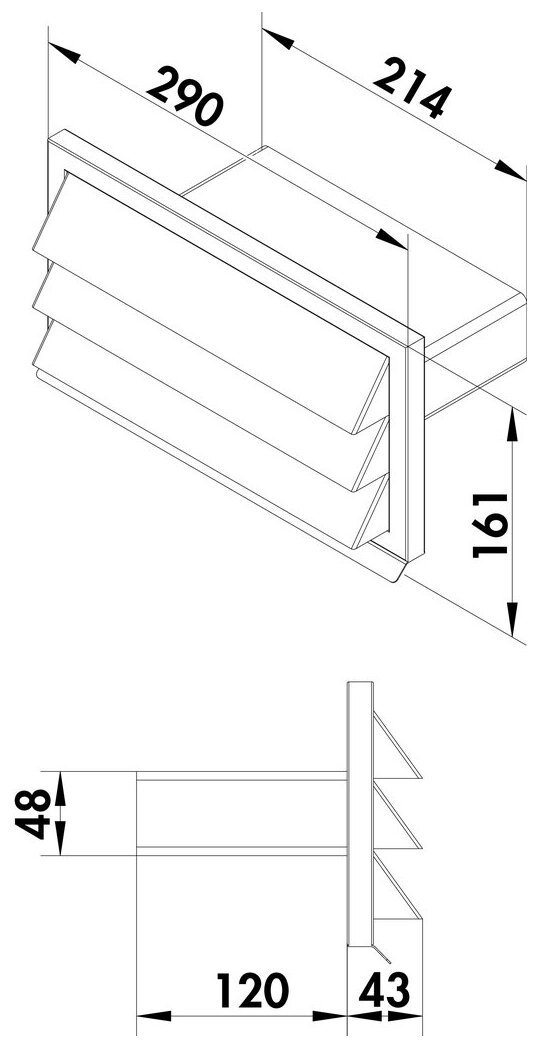

290 x 150 mm, with backpressure shutter for connection 220 x 55 mm to COMPAIR® 125 wide duct.
— connector depth 110 mm
290 x 150 mm, with backpressure shutter for connection 220 x 55 mm to COMPAIR® 125 wide duct.
— connector depth 110 mm
Article type:
External blind
Certification:
stainless
Colour:
Stainless steel
Connection diameter:
125 mm
Mounting/Fixing:
surface mounting
Output drive:
angular
Shape:
angular
Support depth:
120 mm
System dimension:
150
Material:
stainless steel
Depth:
164 mm
Height:
161 mm
Width:
290 mm
