Product information:
E-Jal flow 125 external blind, stainless steel
Product number:
4033015
- External blind
- Plug-in system for subsequent gluing
Description
E-Jal flow 125 external blind, stainless steel
The COMPAIR® flow E-Jal flow 125 external louvre in louvre design serves as an external closure for the wall box and regulates the air flow from the kitchen. The louvre also provides reliable protection against the weather. It is equipped with an integrated backflow flap measuring 169 x 77 mm, which is suitable for a flat duct connection. Thanks to its stainless steel construction, the multi-leaf damper is particularly stable and durable.

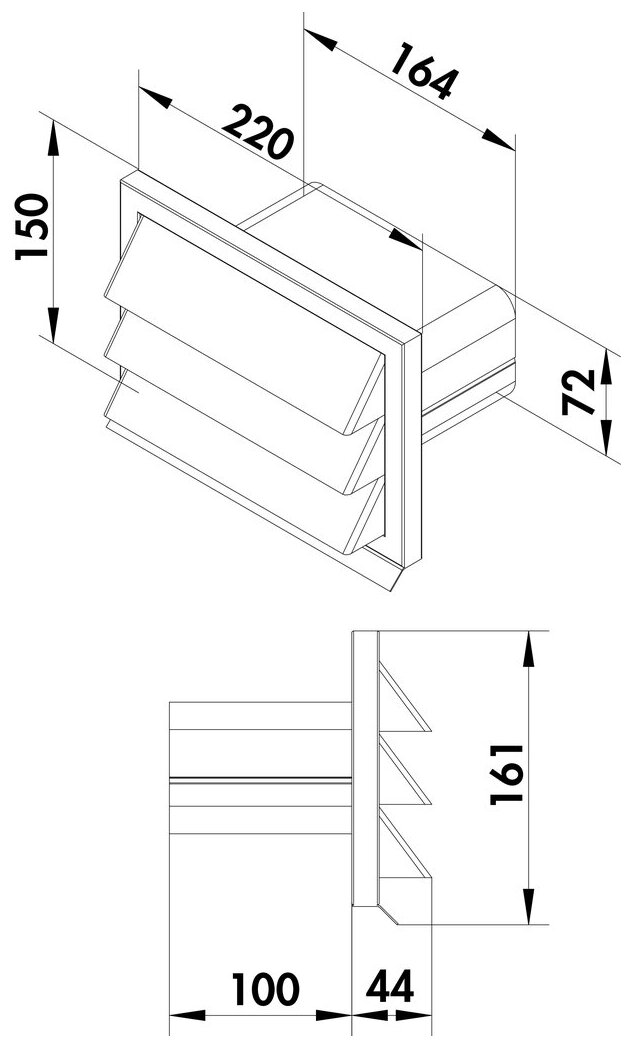

210 x 140 mm with backpressure shutter for connection 169 x 77 mm to COMPAIR® flow 125.
— connector depth 90 mm
210 x 140 mm with backpressure shutter for connection 169 x 77 mm to COMPAIR® flow 125.
— connector depth 90 mm
Article type:
External blind
Certification:
glossy
Colour:
Stainless steel
Connection diameter:
125 mm
Form:
angular
Height:
140 mm
Material:
stainless steel
Mounting/Fixing:
Plug-in system for subsequent gluing
Output drive:
angular
Support depth:
90 mm
System dimension:
125
Width:
210 mm
