Product information:
E-Jal HK flow 150 external blind, stainless steel
Product number:
4022029
- External blind
- surface mounting
Description
E-Jal HK flow 150 external blind, stainless steel

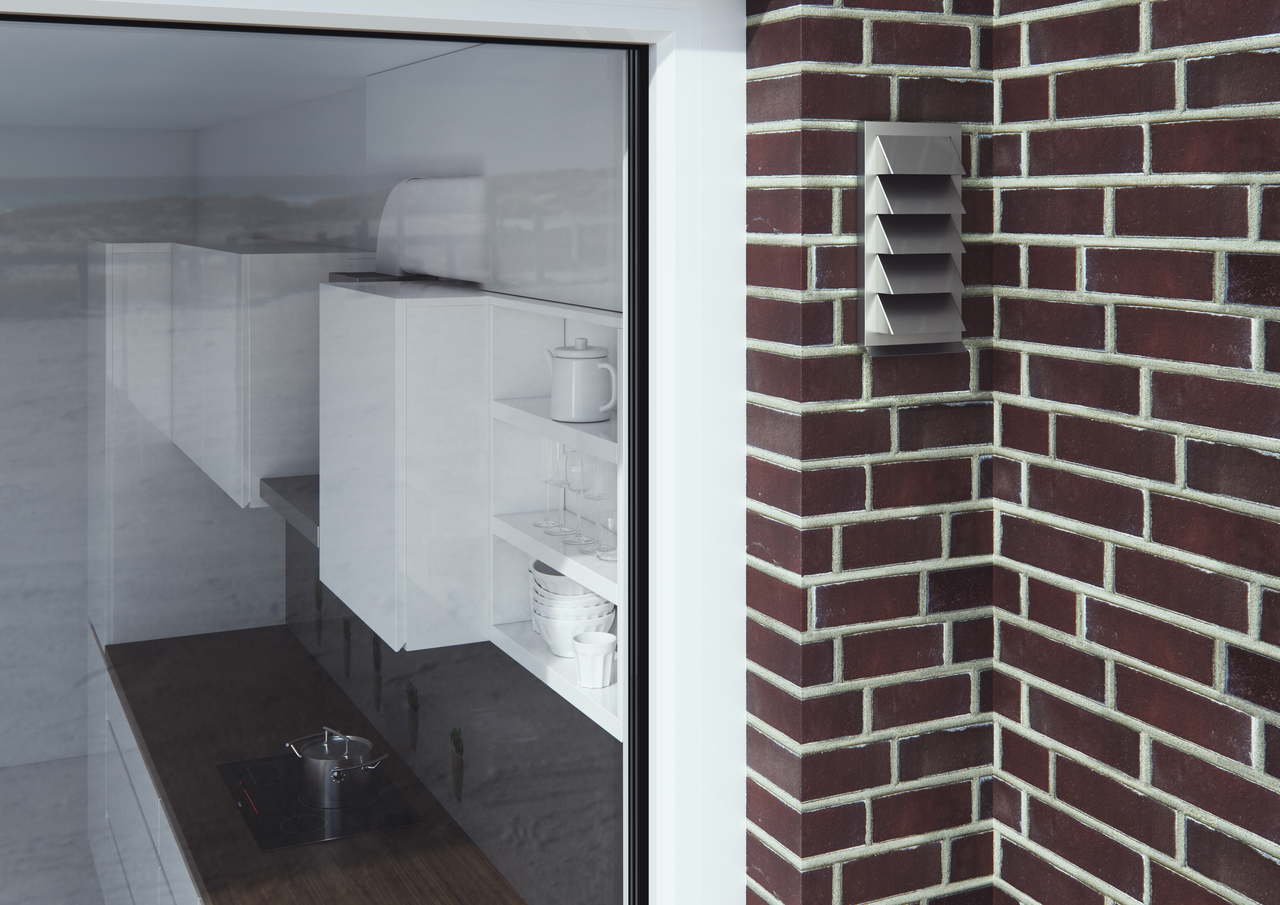

The COMPAIR® flow E-Jal HK flow 150 external louvre is specially designed to meet the requirements of difficult installation situations. It is mounted vertically and enables a space-saving connection to the air duct. Thanks to the intelligent design, the aerodynamic properties within the extract air system are retained without restriction. The multi-leaf damper is equipped with spring-loaded non-return flaps that prevent strong winds, cold air and driving rain from entering the interior. The load-bearing stainless steel frame in a louvre design is also impressive from an aesthetic point of view. With a cross-section of 222 x 89 mm, flat ducts of the product series laid on edge can be connected directly to the spigot of the closure flap.

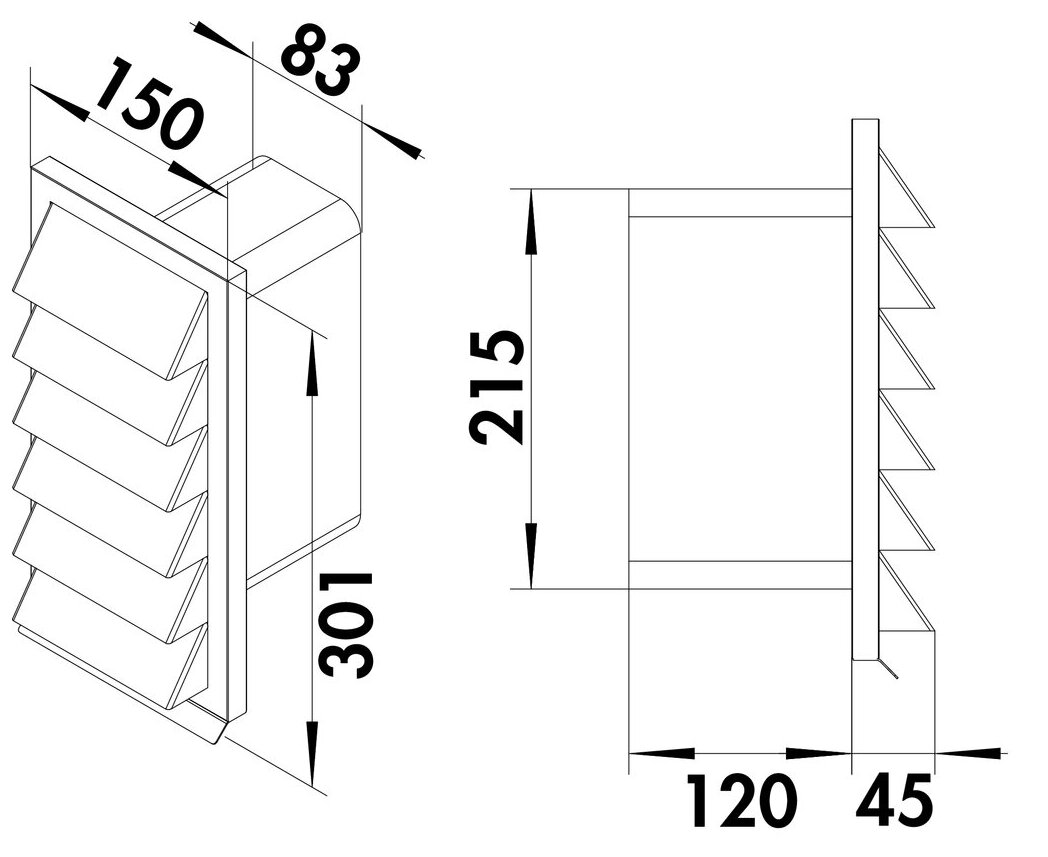

150 x 300 mm with back pressure flap for connection 222 x 89 mm to COMPAIR® flow 150.
— connection piece depth 120 mm
150 x 300 mm with back pressure flap for connection 222 x 89 mm to COMPAIR® flow 150.
— connection piece depth 120 mm
Article type:
External blind
Certification:
stainless
Colour:
Stainless steel
Form:
angular
Height:
300 mm
Material:
stainless steel
Mounting/Fixing:
surface mounting
Outer diameter:
150 mm
Output drive:
angular
Support depth:
120 mm
System dimension:
150
Width:
150 mm
