Product information:
E-Jal HK flow 125 external blind, stainless steel
Product number:
4022017
- External blind
- surface mounting
Description
E-Jal HK flow 125 external blind, stainless steel

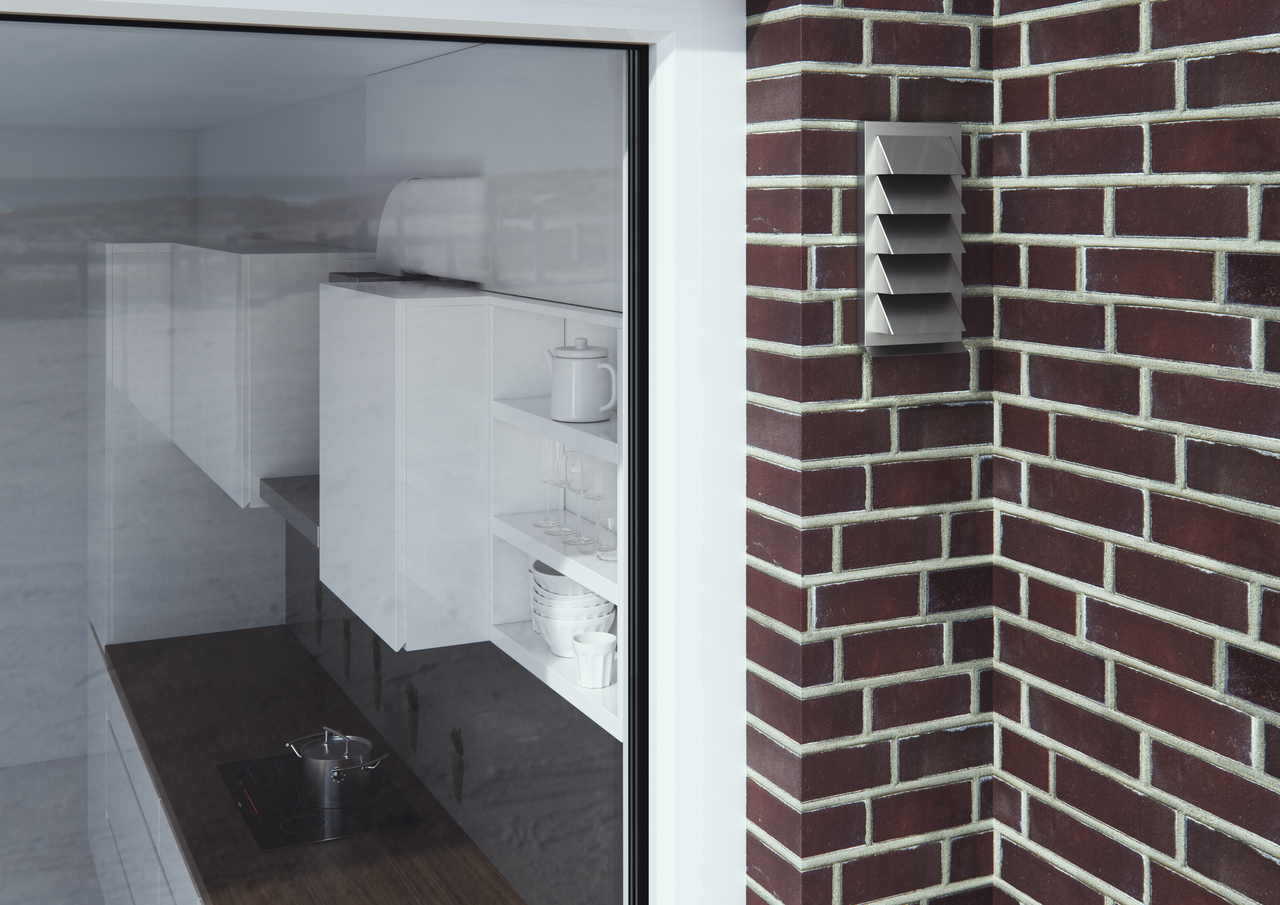

The COMPAIR® flow E-Jal HK flow 125 external louvre is ideal for space-saving installation of the extract air system and can be mounted upright on the external wall. With its elegant louvre design, it not only meets visual requirements, but also offers additional protection against the weather. The cover flap is equipped with a backflow flap measuring 169 x 77 mm for a flat duct connection. Made of high-quality stainless steel, the multi-leaf damper impresses with its high robustness and durability.

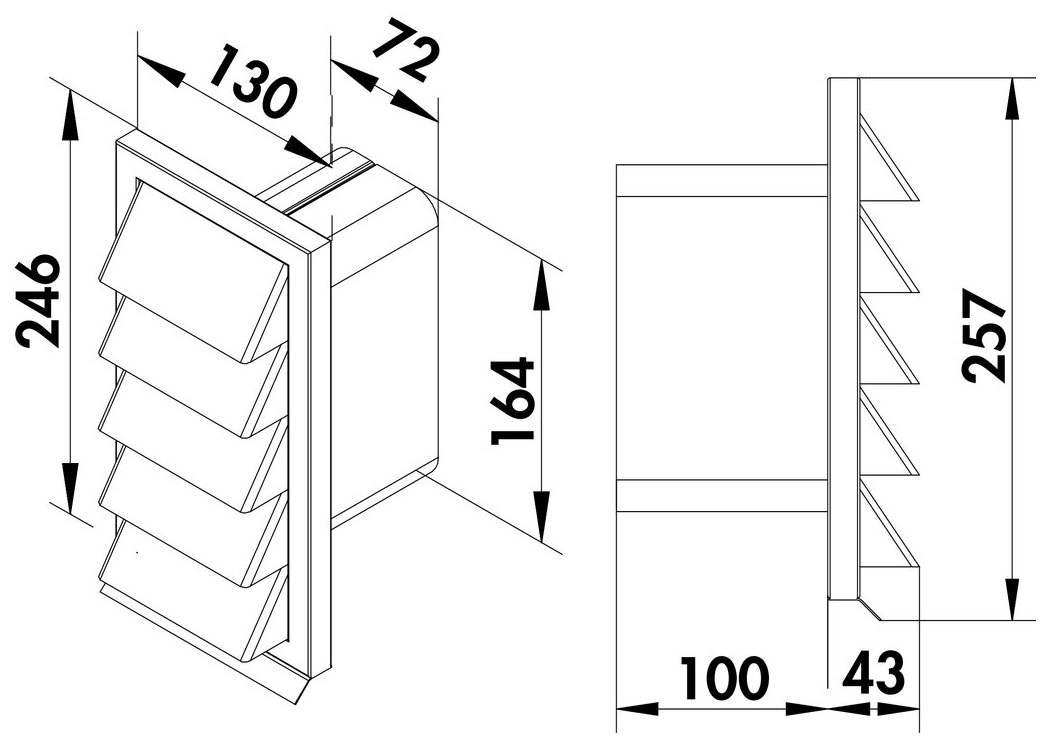

130 x 250 mm with back pressure flap for connection 169 x 77 mm to COMPAIR® flow 125.
— connection piece depth 100 mm
130 x 250 mm with back pressure flap for connection 169 x 77 mm to COMPAIR® flow 125.
— connection piece depth 100 mm
Article type:
External blind
Certification:
stainless
Colour:
Stainless steel
Form:
angular
Height:
250 mm
Material:
stainless steel
Mounting/Fixing:
surface mounting
Outer diameter:
125 mm
Output drive:
angular
Suitable for:
COMPAIR® flow 125
Support depth:
100 mm
System dimension:
125
Width:
130 mm
