Product information:
E-Jal Col® flow 125 wall conduct incl. THERMOBOX, white, stainless steel
Product number:
4033044
- Wall sleeve
- installation in the wall
Description
E-Jal Col® flow 125 wall conduct incl. THERMOBOX, white, stainless steel
The variable COMPAIR® flow E-Jal Col® flow 125 wall box impresses with its energy-efficient performance. It reliably leads the exhaust air of an extractor bonnet outside and ensures a beneficial room climate in the kitchen. The wall duct is equipped with a THERMOBOX and provides a square stainless steel external louvre. The lamellas of the louvre are equipped with special guide bodies that optimise the flow guidance. The patented COMPAIR® flow technology is used for efficient and quiet air duct routing. In combination with the integrated THERMOBOX, the system suppresses draughts and significant heat loss. The blower-door certified heat retention system opens at an air pressure of 65 Pa and provides full opening even at a low volume flow. Opening and closing is magnetic and avoids unsightly vibrations and rattling noises. The telescopic wall duct provides a flat spigot measuring 174 x 82 mm with a spigot depth of 80 mm for connection. The total installation depth can be varied from 350 to 500 mm and can be shortened to 240 mm. The required wall opening is 132 mm in diameter.
Wall conduct with telescopic pipe, incl. built-in heat retention system THERMOBOX and stainless steel external blind E-Jal Col®. Guide vanes on the slats of the blind ensure optimised flow guidance.

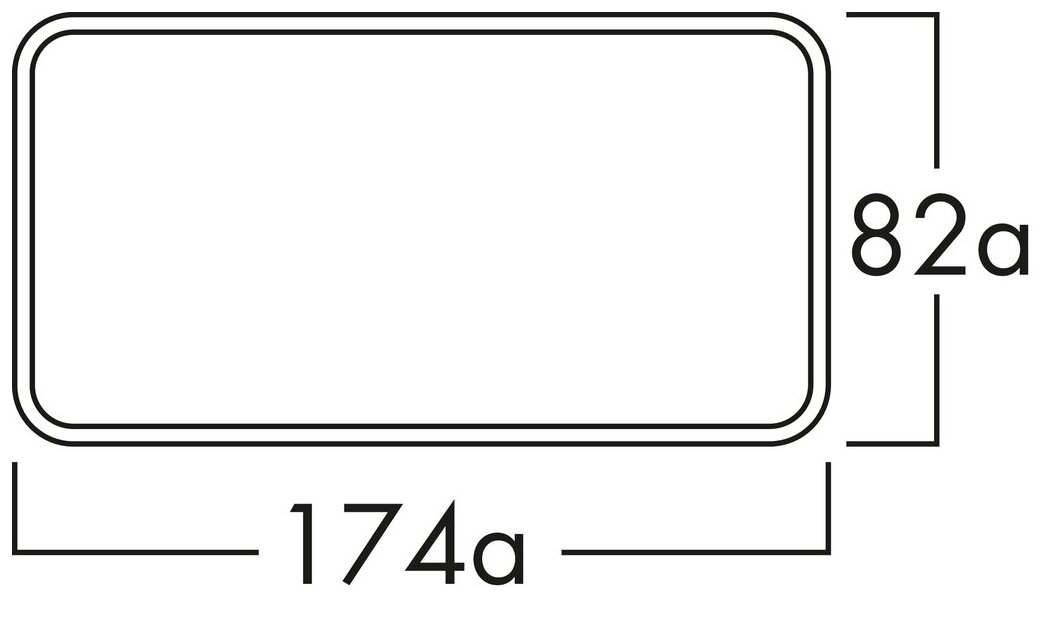

— pipe connection 174 x 82 mm
— connection depth 80 mm
— installation depth 350–500 mm, can be shortened to 240 mm
— wall penetration Ø ca. 132 mm
— Blower-Door certified (required opening pressure >65 Pa)
Wall conduct with telescopic pipe, incl. built-in heat retention system THERMOBOX and stainless steel external blind E-Jal Col®. Guide vanes on the slats of the blind ensure optimised flow guidance.
— pipe connection 174 x 82 mm
— connection depth 80 mm
— installation depth 350–500 mm, can be shortened to 240 mm
— wall penetration Ø ca. 132 mm
— Blower-Door certified (required opening pressure >65 Pa)
Article type:
Wall sleeve
Certification:
stainless
Colour:
stainless steel/white
Connection diameter:
125 mm
Form:
angular
Height:
194,3 mm
Installation depth:
350–500 mm
Material:
stainless steel
Mounting/Fixing:
installation in the wall
Opening pressure:
> 65 Pa
Output drive:
angular
Properties:
can be shortened
Shortenability:
can be shortened to 240 mm
Support depth:
80 mm
System dimension:
125
Width:
198,4 mm
Downloads
Assembly
Data sheet
Measures
