E-Jal 200 external blind, Ø 200 mm, stainless steel
Product number:
4022031
- External blind
Prices will only be shown once logged in.
Description
E-Jal 200 external blind, Ø 200 mm, stainless steel

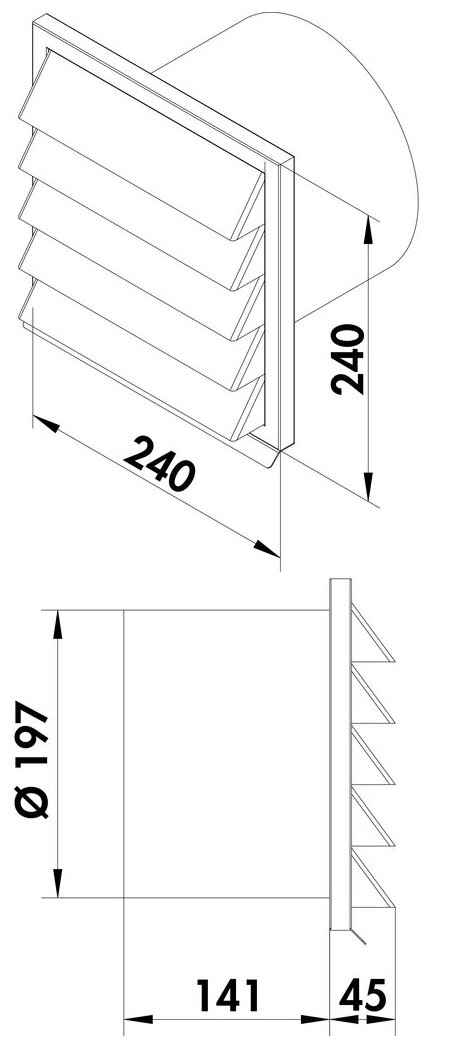

The COMPAIR® flow E-Jal 200 outdoor louvre made of stainless steel impresses with its modern design in louvre optics. The material is weatherproof and extremely durable. To prevent energy losses in the kitchen due to the penetration of cold air, a backflow flap is part of the basic equipment. It closes automatically as soon as the cooker bonnet is switched off. The multi-leaf damper has a socket depth of 145 mm and is designed for connection to round pipes with a diameter of 200 mm. The external dimensions are 240 x 240 mm.
240 x 240 mm with backpressure shutter for connection to round pipe.
— connector depth 145 mm
240 x 240 mm with backpressure shutter for connection to round pipe.
— connector depth 145 mm
Article type:
External blind
Certification:
stainless
Colour:
Stainless steel
Connection diameter:
200 mm
Output drive:
round
Shape:
angular
Support depth:
141 mm
System dimension:
150
Material:
stainless steel
Height:
240 mm
Width:
240 mm
