Description

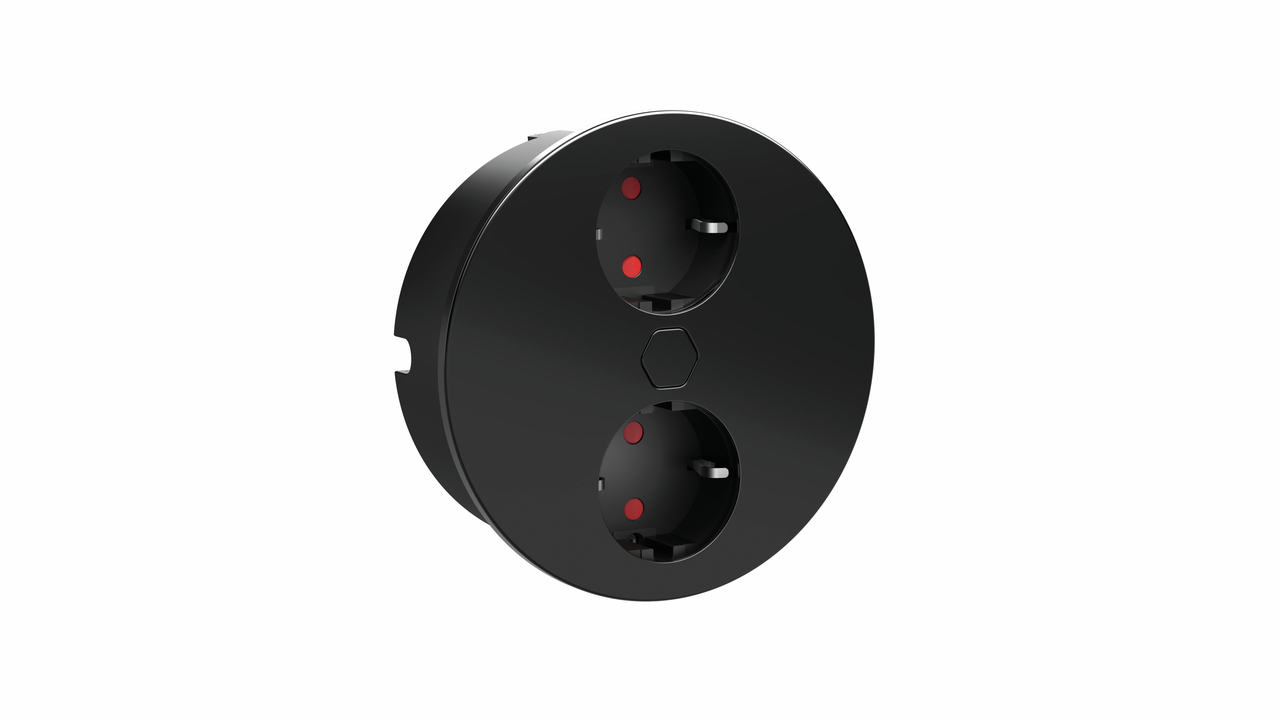

Duplex E double socket, round, with earthed plug sockets, black matt
The CON-AKTIV® Duplex E built-in socket outlet is a decorative highlight for the power supply within the kitchen unit. Visually, it stands out expressively thanks to the stainless steel used in its manufacture and sets a striking accent in the area of the worktop. Technically, the socket element convinces with the electrical opening and closing of the lids at the touch of a button. In addition, there is a practical and at the same time innovative plug insertion aid that makes it easier to connect various kitchen aids such as a mixer, a coffee machine and other consumers to the double socket. The necessary extra safety is provided by 3-pole protective contacts and increased protection against accidental contact. Another useful feature is the integrated water drain. Thanks to the low installation depth and space-saving cable routing to the side or downwards, installation above drawers is possible without any problems. In addition, the 2-way socket outlet is suitable for retrofitting. Alternatively, a version with matt black surfaces is available.



Socket element. Double. Electric opening at the push of a button.
— 3680 watt/16 A, 250 VAC, IP20
— H05VV-F 3G 1.5 mm2
— 3-pole with earthing contact
— 2000 mm mains connection line with earthing contact plug

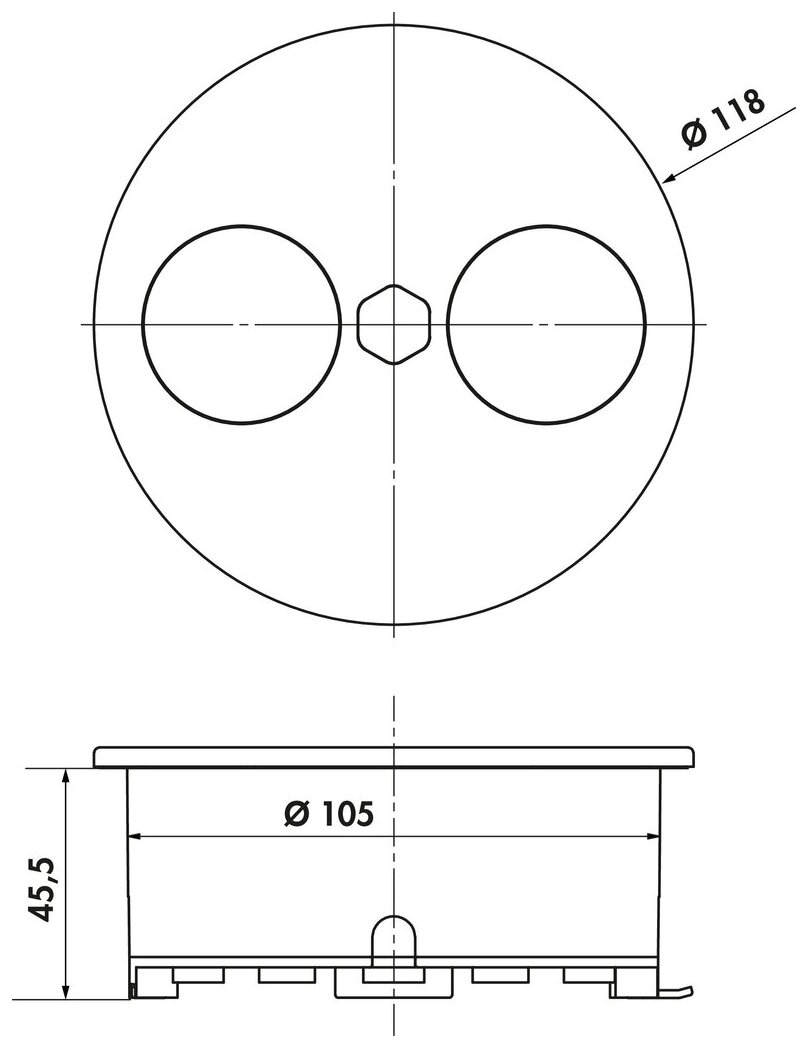

— drill Ø 105 mm
— installation depth approx. 48 mm
— increased contact protection
— space-saving cable routing (downwards or side cable outlet)
— simple and quick installation
— retrofitting possible
— integrated water drain



Article type:
Socket element
Cable outlet:
cable outlet on the side or bottom
Certification:
CE, TÜV
Colour:
black
Colour bezel:
black
Colour socket:
black
Conductor cross-section:
1,5 mm²
Cover/blind type:
Electric
Depth:
45,5 mm
Drilling diameter:
105 mm
Form:
round
Installation depth:
48 mm
Integrated water drain:
Yes
Length of the supply line (primary):
2.000 mm
Mains voltage:
250 VAC
Max. connected load:
3680 watt
Mounting/Fixing:
installation, in the worktop
Note:
can be retrofitted
Number of sockets (total):
2
Opening mechanism:
Push & Pull
Protection class:
IP20
Rated current:
16 A
Touch protection ("child safety lock"):
with increased contact protection
Type of socket element:
Built-in socket element
Version sockets:
2 x earthed plug socket
Wiring:
3-wire with free ends, bared

Accessories

7 variations available
Hole saw, Ø 105 mm, for Twist and Duplex
Product number: 7053024
  • Drilling diameter: 105 mm
  • Max. cutting depth: 38 mm
  • incl. centre drill
