Product information:
More:
Duplex E double USB A+C, round, with earthed plug socket, stainless steel
Product number:
7054002
- Built-in socket element
- 1 x earthed plug socket
- round
Description

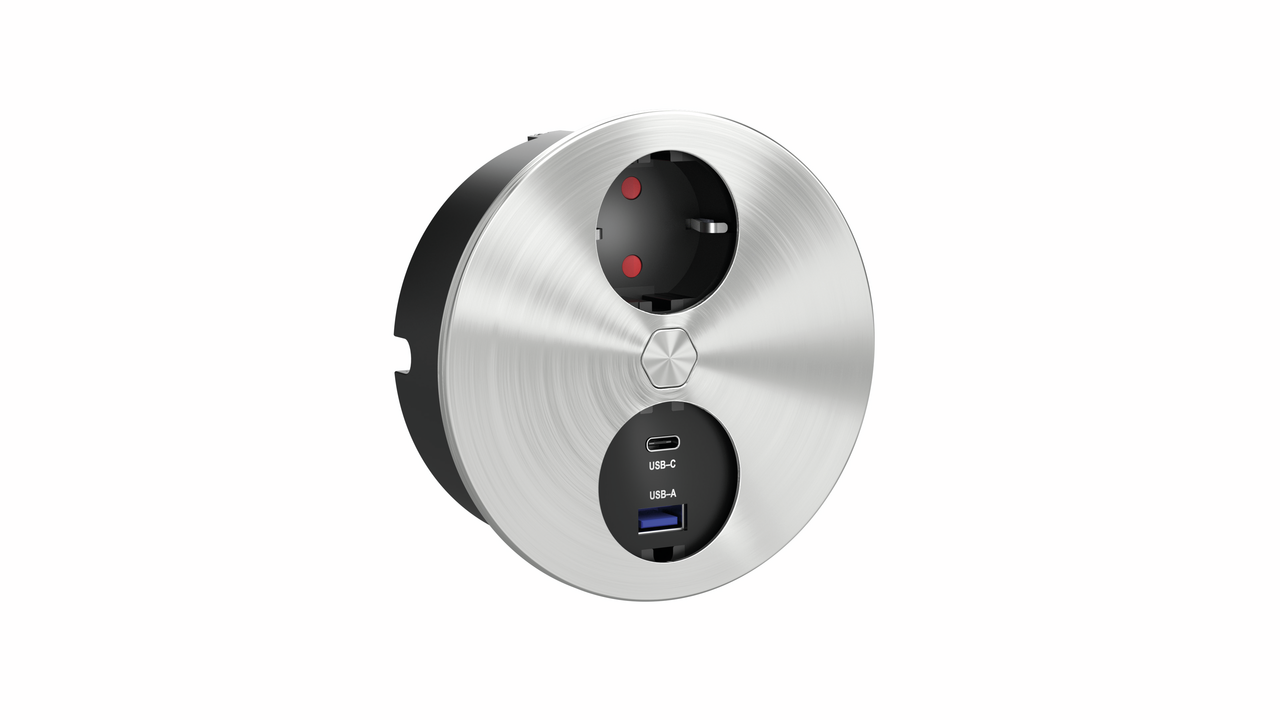

Duplex E double USB A+C, round, with earthed plug socket, stainless steel

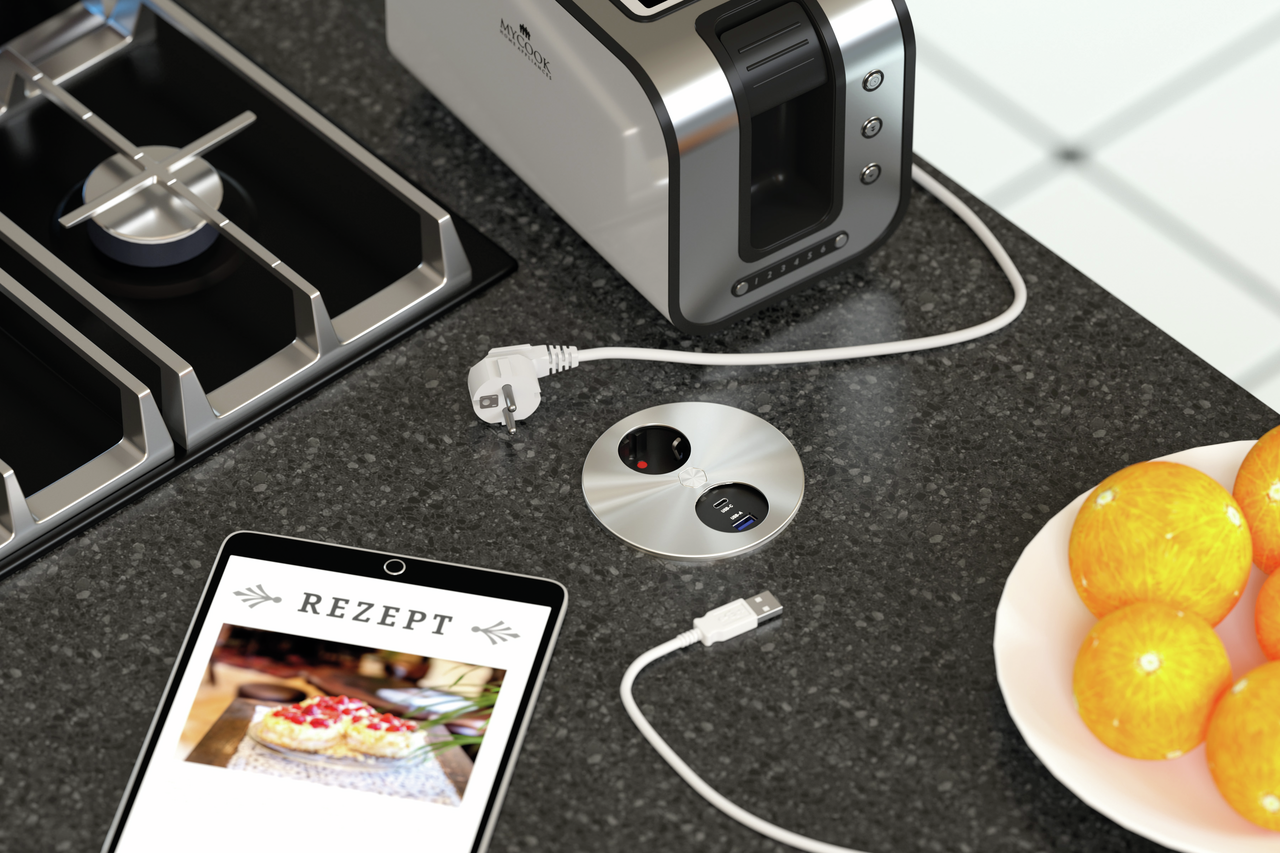

The CON-AKTIV® built-in socket Duplex E Double USB A+C accommodates contemporary kitchen architecture with its attractive design. The overall appearance is underlined by clear contours combined with elegant surfaces. It is suitable for installation in almost all standard worktops. The stainless steel cover is opened and closed electrically at the touch of a button, making it easy to operate. A socket with a 3-pole protective contact is located underneath. With the help of the innovative insertion aid, kitchen gadgets such as a mixer or a kettle can be connected very easily. There are also two USB type A and C sockets. Mobile phones and tablets, for example, can be connected to these so that they can be charged or used for longer periods without recharging the battery. An increased level of safety when using the socket element is ensured by the contact protection and an integrated water drain. Installation is done in no time at all and can also be carried out retrospectively. Thanks to the low installation depth, positioning above drawers is possible. Cables can be routed either sideways via the cable outlet or away to the bottom. Variants with different shapes in attractive surface designs are available.
Socket element. Single and double USB A+C charger (charging station). Electric opening at the push of a button.
— 1 x USB charger type A, 5 VDC, IA/I out: 1 x 2100 mA
— 1 x USB charger type C, 5 VDC, IA/I out: 1 x 3000 mA
— 3680 watt/16 A, 250 VAC, IP20
— H05VV-F 3G 1.5 mm2
— 3-pole with earthing contact
— 2000 mm mains connection line with earthed plug
— drill Ø 105 mm
— installation depth approx. 48 mm
— increased contact protection
— space-saving cable routing (downwards or side cable outlet)
— simple and quick installation
— retrofitting possible
— integrated water drain
Socket element. Single and double USB A+C charger (charging station). Electric opening at the push of a button.
— 1 x USB charger type A, 5 VDC, IA/I out: 1 x 2100 mA
— 1 x USB charger type C, 5 VDC, IA/I out: 1 x 3000 mA
— 3680 watt/16 A, 250 VAC, IP20
— H05VV-F 3G 1.5 mm2
— 3-pole with earthing contact
— 2000 mm mains connection line with earthed plug
— drill Ø 105 mm
— installation depth approx. 48 mm
— increased contact protection
— space-saving cable routing (downwards or side cable outlet)
— simple and quick installation
— retrofitting possible
— integrated water drain
Article type:
Socket element
Cable outlet:
cable outlet on the side or bottom
Certification:
CE, TÜV
Colour:
Stainless steel
Colour bezel:
Stainless steel
Colour socket:
black
Conductor cross-section:
1,5 mm²
Cover/blind type:
Electric
Depth:
45,5 mm
Drilling diameter:
105 mm
Form:
round
Installation depth:
48 mm
Integrated water drain:
Yes
Length of the supply line (primary):
2.000 mm
Mains voltage:
250 VAC
Max. connected load:
3680 watt
Note:
can be retrofitted
Number of USB ports:
2
Number of sockets (total):
1
Opening mechanism:
Push & Pull
Protection class:
IP20
Rated current:
16 A
Touch protection ("child safety lock"):
with increased contact protection
Type of socket element:
Built-in socket element
USB type:
USB-A, USB-C
Version sockets:
1 x earthed plug socket
Wiring:
3-wire with free ends, bared
Assembly
Measures
Accessories
7
variations available
Hole saw, Ø 105 mm, for Twist and Duplex
Subscription
Product number:
7053024
- Drilling diameter: 105 mm
- Max. cutting depth: 38 mm
- incl. centre drill
