Door lift fitting FREEslide, for 600 mm width
Product number:
8031082
- Lift fitting
- max. front weight for 600-gauge width 3.4–6.7 kg
- Cabinet width: 600 mm
Description
Door lift fitting FREEslide, for 600 mm width

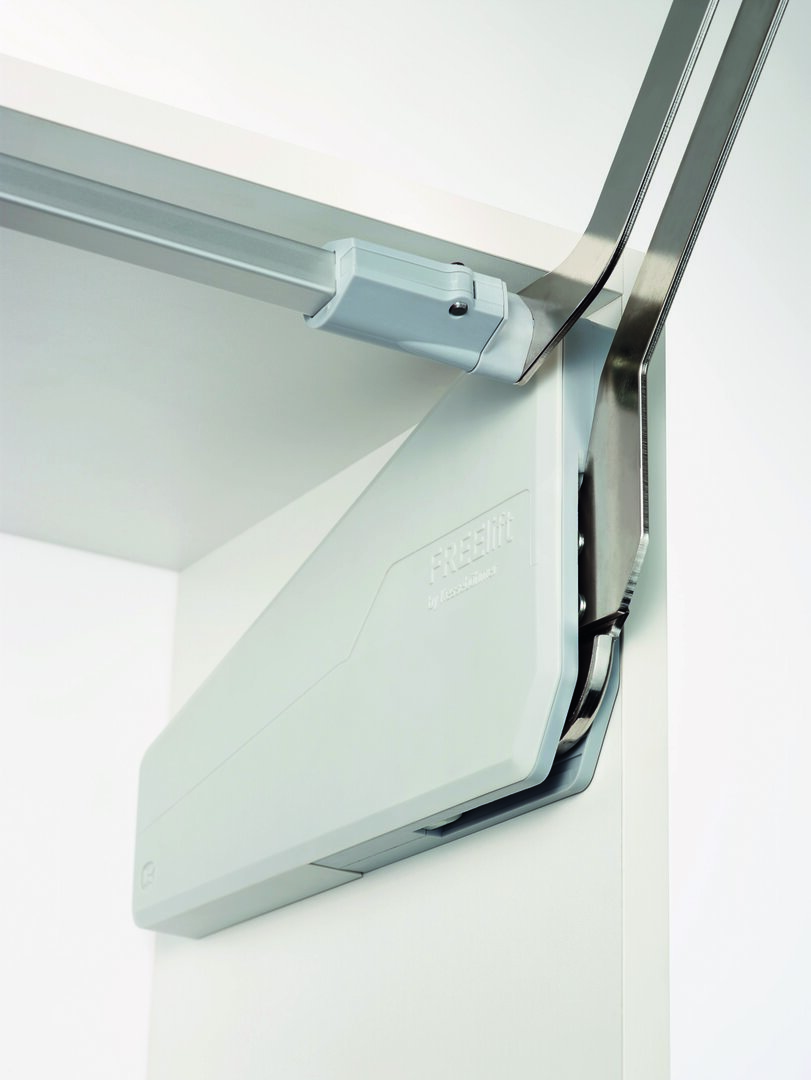

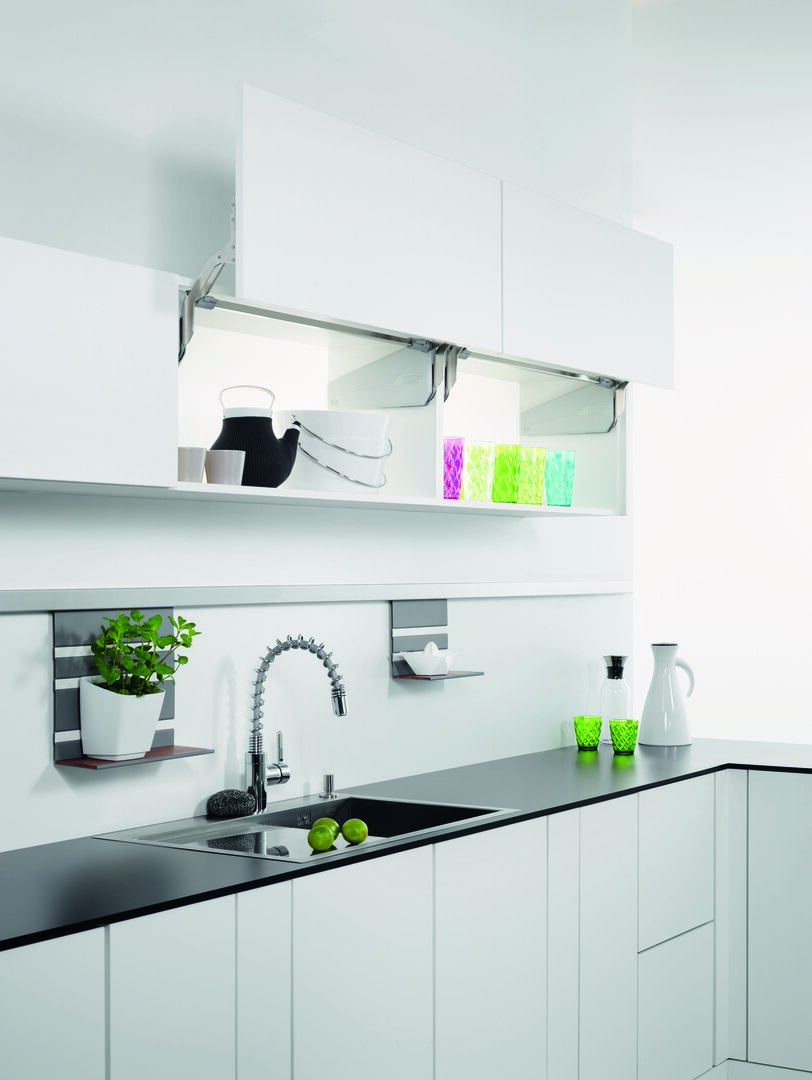

The parallel lift fitting FREEslide enables the hinge-free connection of front flaps. It is intended for use in wall cabinets in kitchen planning. The cabinet fitting ensures that the front moves straight up. This makes the stored goods easy to reach. Opening support and closing damping are integrated, as well as a multi-position stop that ensures an immediate and secure hold in any position. The spring force can be adjusted to different front weights. The fitting is equally suitable for side panels of 16 and 19 mm thickness. It is designed for a front weight of 60 cm carcase width.
Parallel lift fitting for hinge-free connection of front doors. Suitable for 16 mm and 19 mm side walls.
Parallel lift fitting for hinge-free connection of front doors. Suitable for 16 mm and 19 mm side walls.
Article type:
Lift fitting
Cabinet width:
600 mm
Carrying capacity:
max. front weight for 600-gauge width 3.4–6.7 kg
Colour:
white
Depth:
277 mm
For sidewall thickness:
16/19 mm
Mounting/Fixing:
Parallel lift fitting for hinge-free connection of front doors, cabinet wall, the front connection is made using ClickFixx
Soft closing:
Yes
Width:
600 mm
Downloads
Assembly
