Product information:

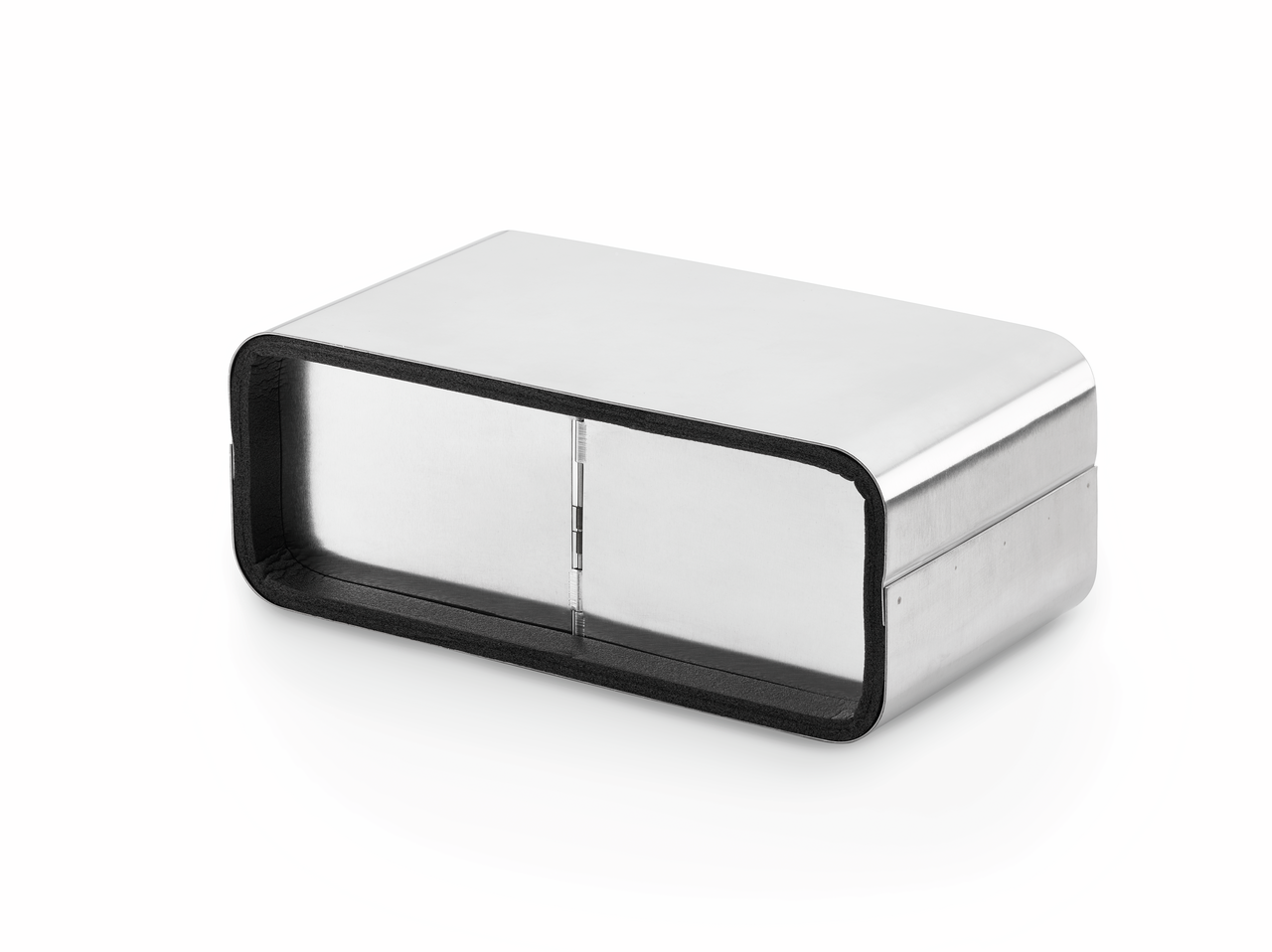

Backflow trap angular, stainless steel
Product number:
4043034
- Connecting element
Description
Backflow trap angular, stainless steel
The COMPAIR® angular stainless steel backflow flap is specially designed for insertion into the F-VRO 150 ventilation pipe from the COMPAIR® flow range. Installation prevents cold outside air from entering the kitchen after the cooker bonnet has been switched off. To ensure that the non-return damper functions properly, it is only installed horizontally.
For insertion into ventilation pipe F-VRO (4043001).
Not suitable for installation in a vertical pipe.

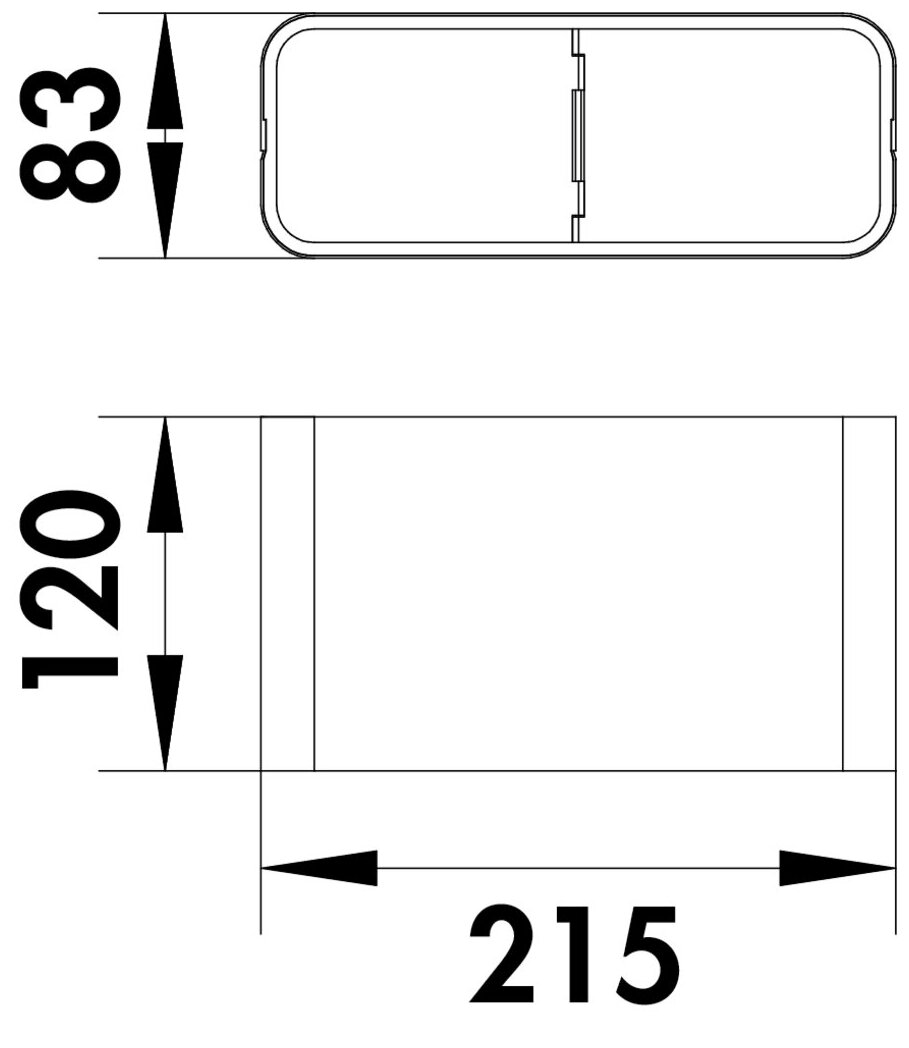

— depth 120 mm
For insertion into ventilation pipe F-VRO (4043001).
Not suitable for installation in a vertical pipe.
— depth 120 mm
Artikeltyp:
Connecting element
Anschlussdurchmesser:
150 mm
Anschlussform:
angular
Breite:
215 mm
Farbe:
Stainless steel
Form:
angular
Hinweis:
not suitable for installation in a vertical pipe
Höhe:
85 mm
Material:
stainless steel
Tiefe:
120 mm
Zertifizierung:
stainless
geeignet für:
For insertion into ventilation pipe F-VRO (4043001)
