125 wall connector 1, white
Product number:
4020040
- Connecting element
- Plug-in system for subsequent gluing
Description
125 wall connector 1, white
The COMPAIR® flow 125 wall connection pipe 1 creates a connection between the wall opening and the pipe and is intended for use in chimney shafts. It is suitable for connection to a round pipe with a diameter of 125 mm and a length of 350 mm. Due to the pipe diameter of 125 mm, a wall opening of approx. 132 mm is provided. The practical backflow flap reliably prevents air from flowing through the pipe from the outside.
For use in chimney shafts. For connection to round pipe 125.
— with backpressure shutter.

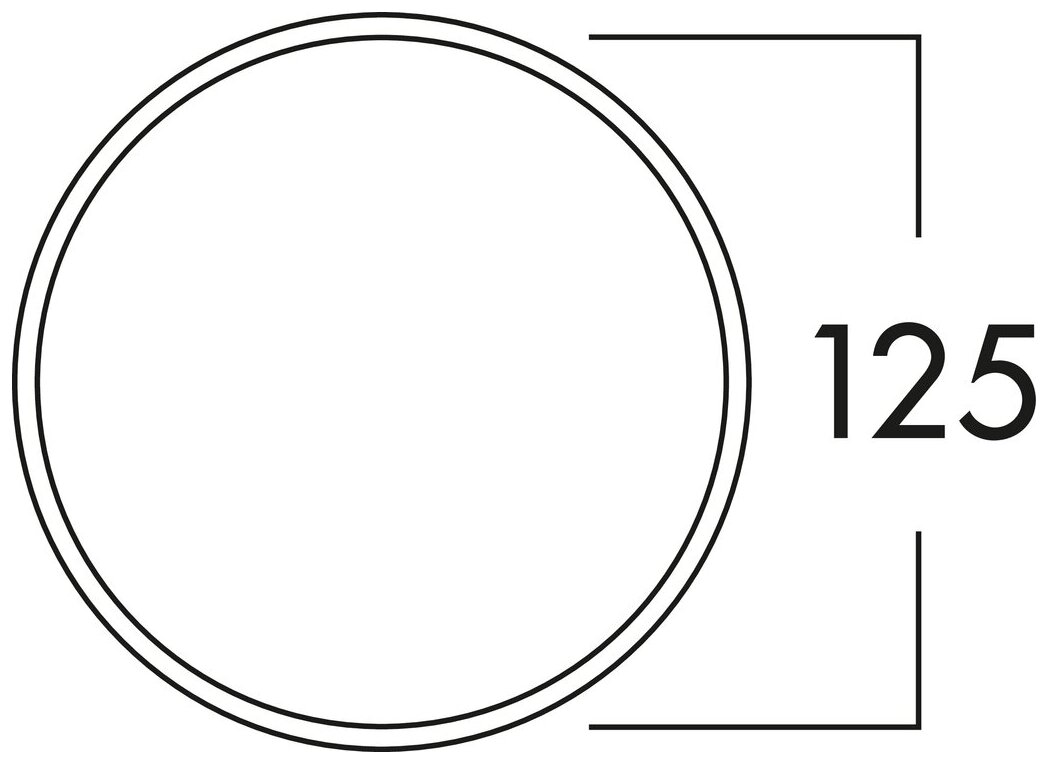

— hose/tube connector Ø 125 mm
— connector depth 24 mm
— round tube with a length of 350 mm
— wall penetration Ø ca. 132 mm
For use in chimney shafts. For connection to round pipe 125.
— with backpressure shutter.
— hose/tube connector Ø 125 mm
— connector depth 24 mm
— round tube with a length of 350 mm
— wall penetration Ø ca. 132 mm
Article type:
Connecting element
Colour:
white
Connection diameter:
125 mm
Form:
round
Mounting/Fixing:
Plug-in system for subsequent gluing
Output drive:
round
Support depth:
24 mm
System dimension:
125
