STEEL flow SF-Klima-E 150 wall conduct, galvanized steel, stainless steel
- Wall sleeve
- installation in the wall
- plug-in system
Prices will only be shown once logged in.

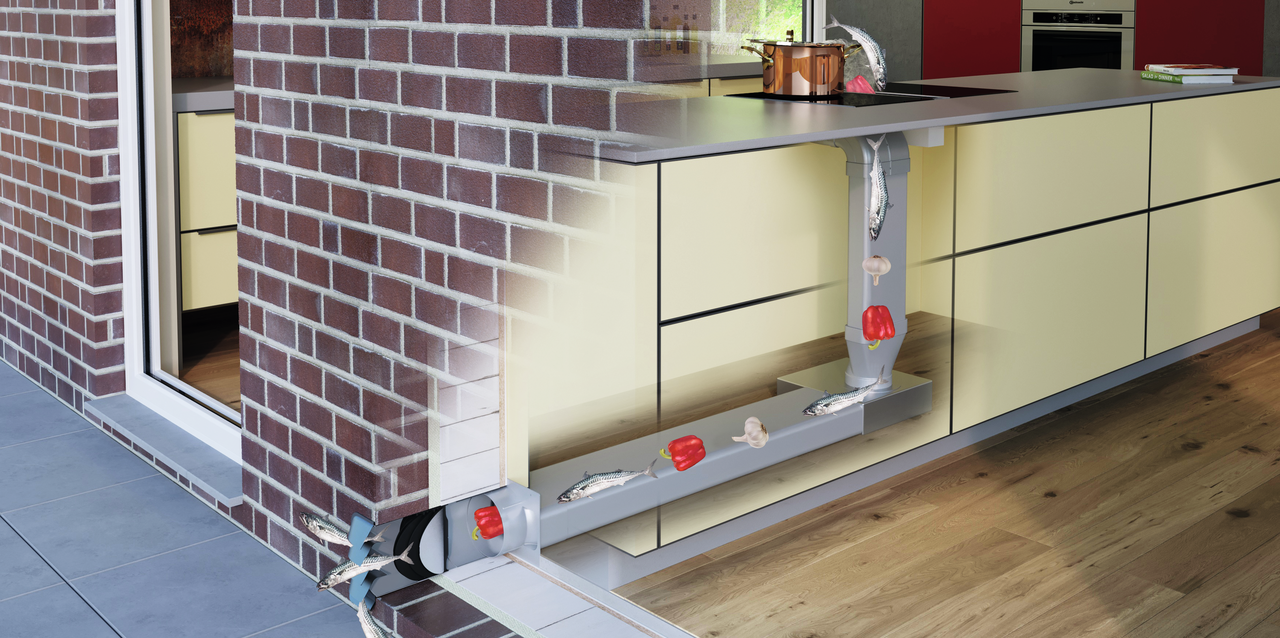

The COMPAIR® STEEL Flow SF-Klima-E 150 wall box is designed to direct the exhaust air generated in the kitchen out of the building. In combination with the patented COMPAIR® flow air duct system, complex exhaust air systems can be created using all the associated individual components. One of the advantages is that the exhaust air flows almost silently around bends. A wall opening with a core hole diameter of approx. 155 mm is required for the installation of the telescopic pipe. The installation depth is adjustable and ranges from 420 to 620 mm. The duct itself can be cut to length as required, down to a maximum of 175 mm. The integrated non-return flap proves to be a particular advantage. It closes automatically once the cooker hood is switched off, preventing odours and cold air from entering the room. The outer end is fitted with a weather-resistant stainless steel louvre in a decorative slat design.
Stainless steel external blind with backflow trap.
— can be shortened

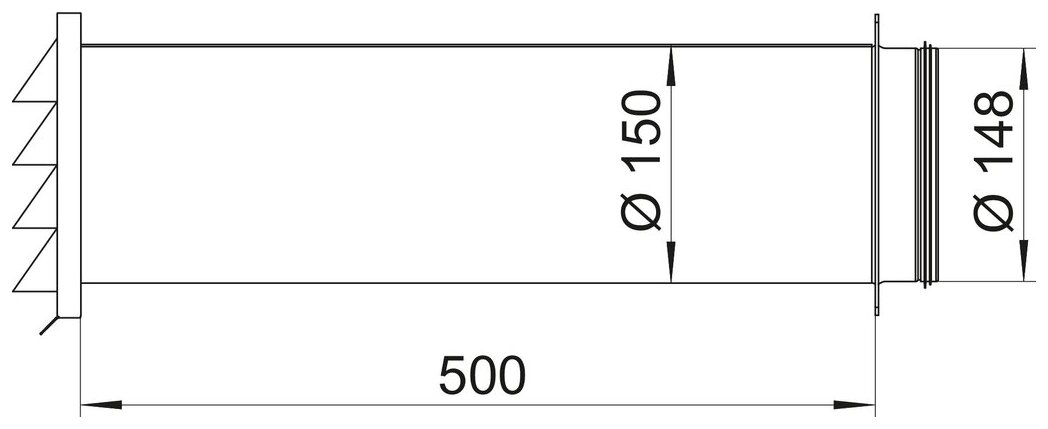

— installation depth 500 mm, can be shortened to 190 mm
— wall penetration Ø ca. 155 mm
— suitable for round pipes SR-R flex and SR-R
— connection to a plastic round pipe possible
Downloads
Assembly
Data sheet
Measures
