STEEL flow SF 150 pipe set for downdraft ventilation, galvanized steel
- Connecting element
- installation in the wall
- plug-in system
Prices will only be shown once logged in.
The COMPAIR® STEEL flow SF 150 duct set allows for a flexible and space-saving arrangement of extract air ducts for cooker hoods. It has been specially developed for downdraft or recessed extractor fans and can be installed in floor coverings as well as in screed or concrete. The presence of underfloor heating does not pose a problem. Thanks to its flat design and the centre web, which can be integrated in various ways, it can withstand a high live load of up to 100 kg. It can also be laid freely on the floor or beneath the kitchen ceiling. The duct system is made from galvanised steel and is therefore non-combustible. It is compatible with all components of the COMPAIR® flow system. The connection dimensions of 222 x 89 mm are designed for direct connection to the extraction system. The direction of flow can be changed from left to right simply by repositioning the connector. The connecting element is suitable for the SF-VRO flex and SF-VRO flat ducts made of aluminium or galvanised steel, which are available separately.
The pipe set allows for a space-saving arrangement of the exhaust pipes at extractor hoods with downdraft or hob ventilation.
— connection size (222 x 89 mm) for direct connection to the extraction system
— guidance direction (left/right) can be changed by replugging
— suitable for flat ducts SF-VRO flex and SF-VRO
Downloads
Assembly
Data sheet

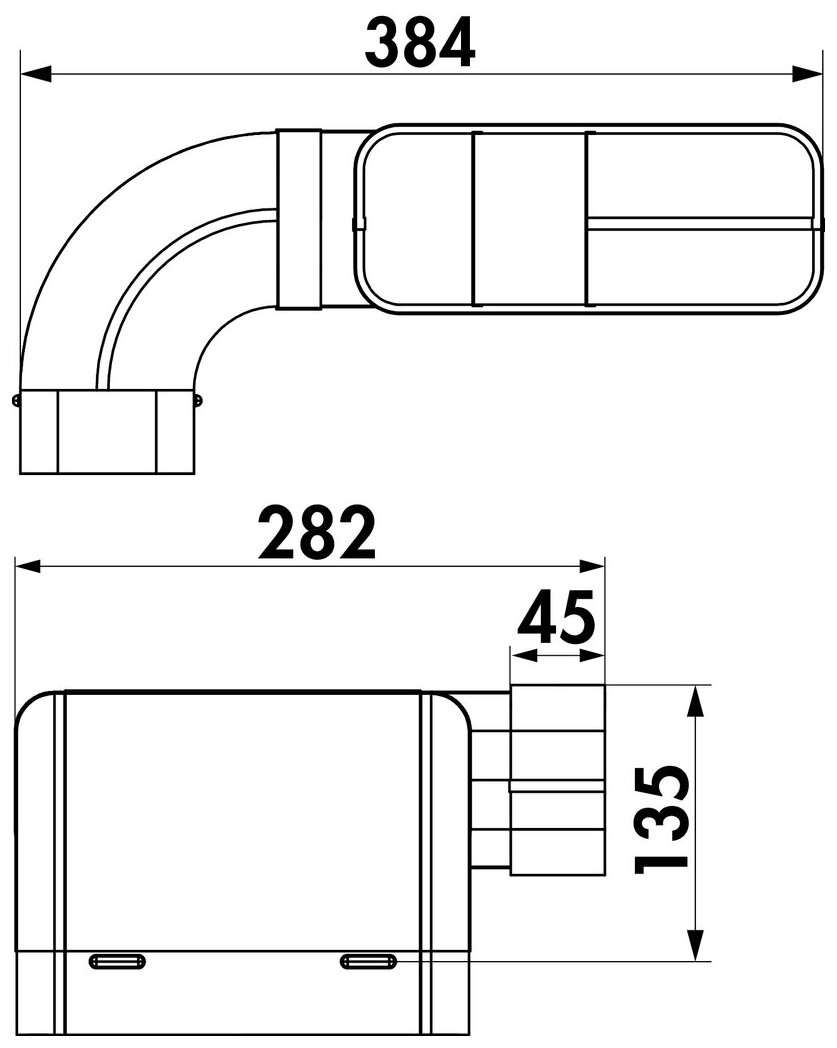

Measures
