Description

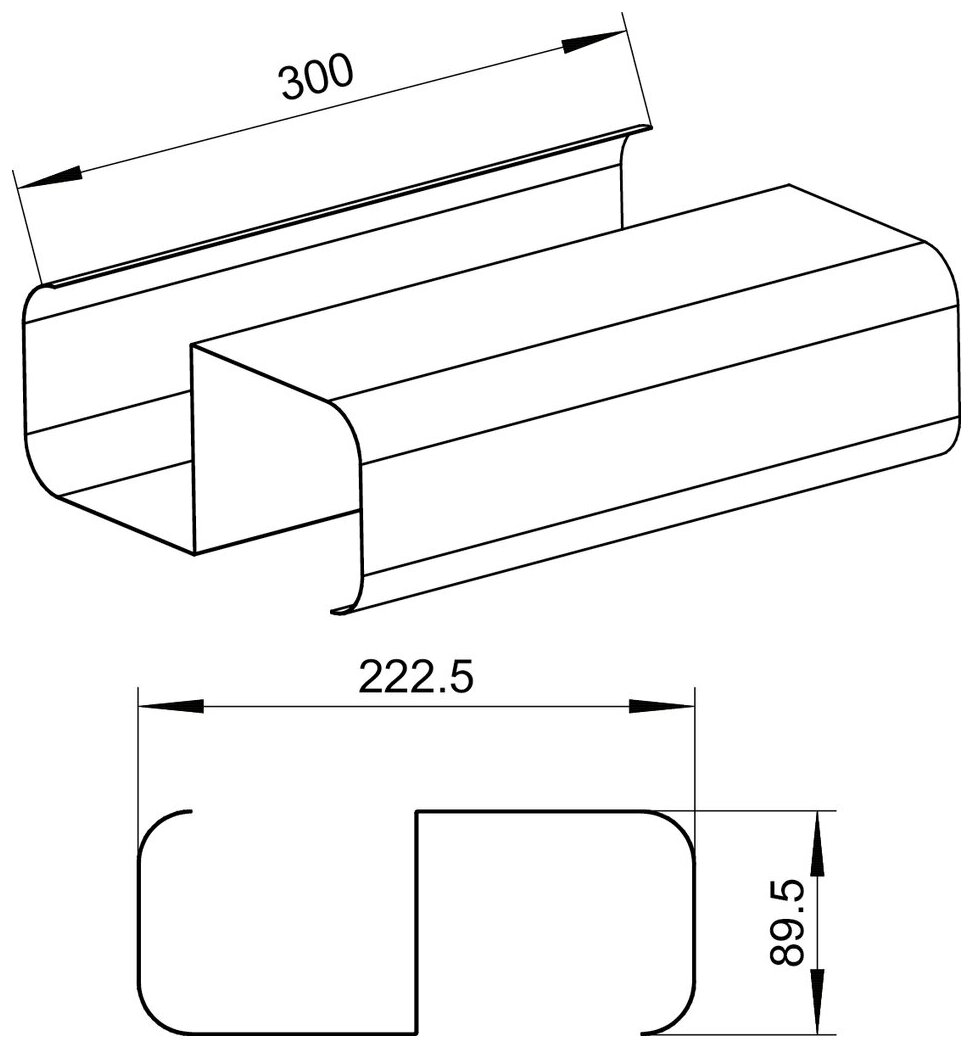

STEEL flow SF-VRO 150 support, galvanized steel, L 300 mm
The innovative COMPAIR® STEEL flow SF-VRO 150 support bar in double U-shape is used to reinforce the flat duct in the kitchen exhaust air system. It allows the ducts to be laid in the floor structure and provides a step load of up to 100 kg. The bar is intended for insertion into the SF-VRO flat duct. The sustainable and recyclable reinforcement element is made of galvanised steel with non-flammable properties. It provides a length of 300 mm. One bar is sufficient for the 50 cm long flat duct, two bars are required for the 100 cm long version.



— insertion into flat duct SF-VRO 500/1000, for laying in the floor construction
— 1 support for SF-VRO 500 required
— 2 supports for SF-VRO 1000 required
— standing load 100 kg



Article type:
Exhaust air accessorie
Brand:
STEEL flow
Colour:
grey
Discontinued item:
No
Form:
angular
Height:
89,5 mm
Length:
300 mm
Material:
galvanized steel
Mounting/Fixing:
plug-in system
Note:
1 support for SF-VRO 500 required, 2 supports for SF-VRO 1000 required
Outer diameter:
150 mm
Output drive:
angular
Width:
222,5 mm
