WESCO® Table support TG80, stainless steel-coloured brushed, W 1460, D 710 mm
Product number:
3032024
- Table frame
- Table frame
- Carrying capacity: 120 kg
Description
WESCO® Table support TG80, stainless steel-coloured brushed, W 1460, D 710 mm

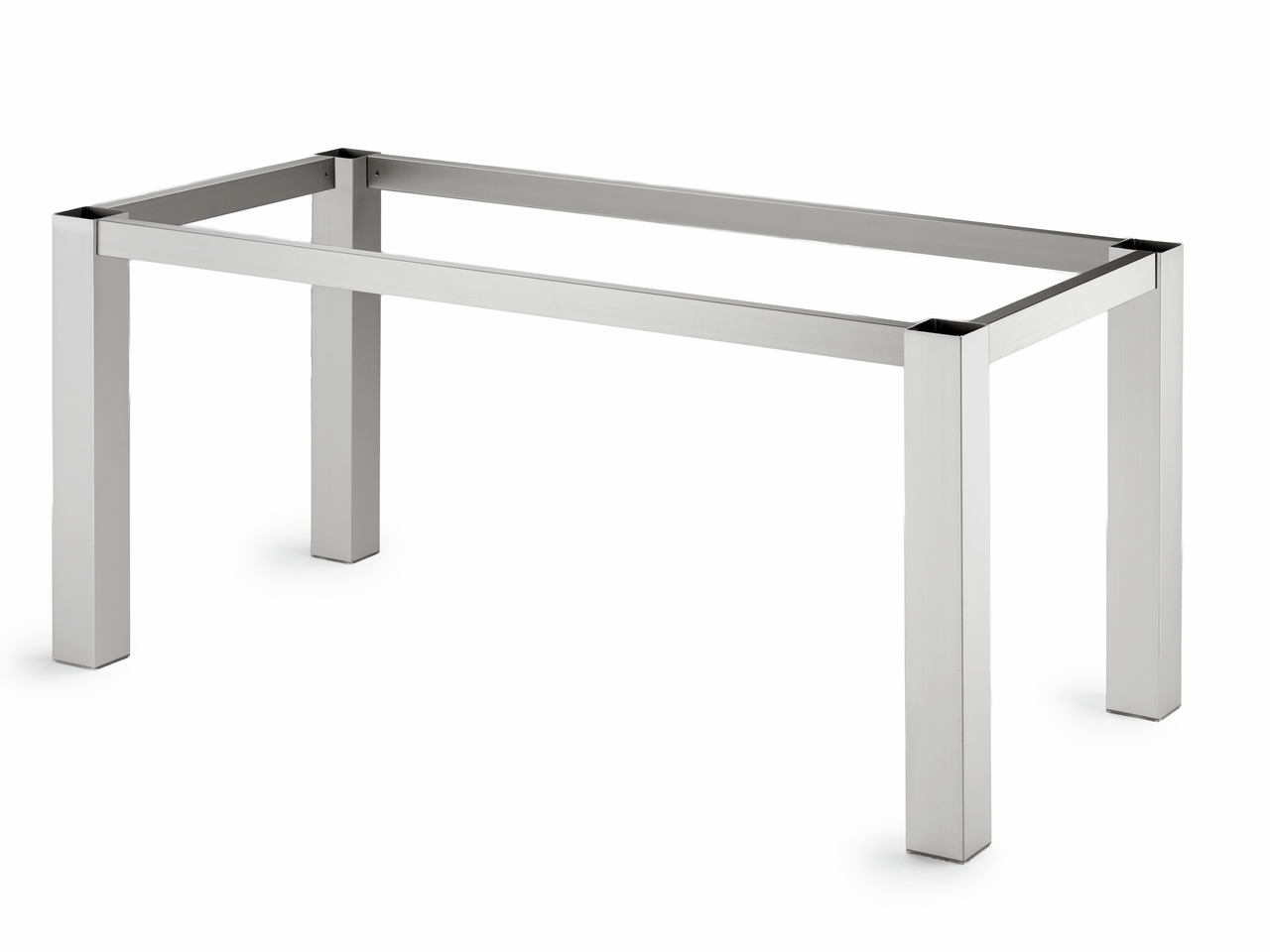

A dining table according to individual ideas can be realised with the TG80 table frame. Its linear and elegant design creates a modern atmosphere in the kitchen or dining room. It is constructed as a four-legged frame with block legs that are 80 x 80 mm thick. The connecting elements are upright crossbars with a cross-section of 60 x 30 mm. This results in a stable base with a high load-bearing capacity of up to 120 kg. The frame can be combined with any table top made of wood or glass. When using a kitchen worktop, the corresponding pre-drilled holes can be used. The table base is made of high-quality aluminium profiles. You can choose between trendy surface finishes and different dimensions. The disassembled metal frame is assembled with a stable screw connection. A glass adapter plate set and an aluminium height adjuster are available as accessories.
— feet 80 x 80 mm
— cross bar 60 x 30 mm upright
— height without worktop 720 mm
— plastic glides
— pre-drilled for worktop
— assembly required, max. load bearing capacity 120 kg
— from a height of 850 mm only available as high table frame
— max. 850 x 2400 x 1200 mm (H x W x D)
For special sizes prices on request (3504999).
— feet 80 x 80 mm
— cross bar 60 x 30 mm upright
— height without worktop 720 mm
— plastic glides
— pre-drilled for worktop
— assembly required, max. load bearing capacity 120 kg
— from a height of 850 mm only available as high table frame
— max. 850 x 2400 x 1200 mm (H x W x D)
For special sizes prices on request (3504999).
Article type:
Table frame
Brand:
WESCO®
Carrying capacity:
120 kg
Colour:
stainless steel-coloured brushed
Depth:
710 mm
Dimensions profile crossbar:
cross bar 60 x 30 upright
Dimensions profile foot/floor plate:
80 x 80 mm
Form:
angular
Frame type:
Table frame
Furniture glides:
plastic glides
Height:
720 mm
Height without APL:
720 mm
Material:
aluminium
Material floor glides:
plastic
Max. Dimensions for table top:
2400 x 1200 mm
Mounting/Fixing:
pre-drilled for worktop
Note:
assembly required
Preparation for:
APL plate
Suitable for:
freestanding tables
Surface/coating:
brushed
Width:
1.460 mm
Downloads
Assembly
Accessories
2
variations available

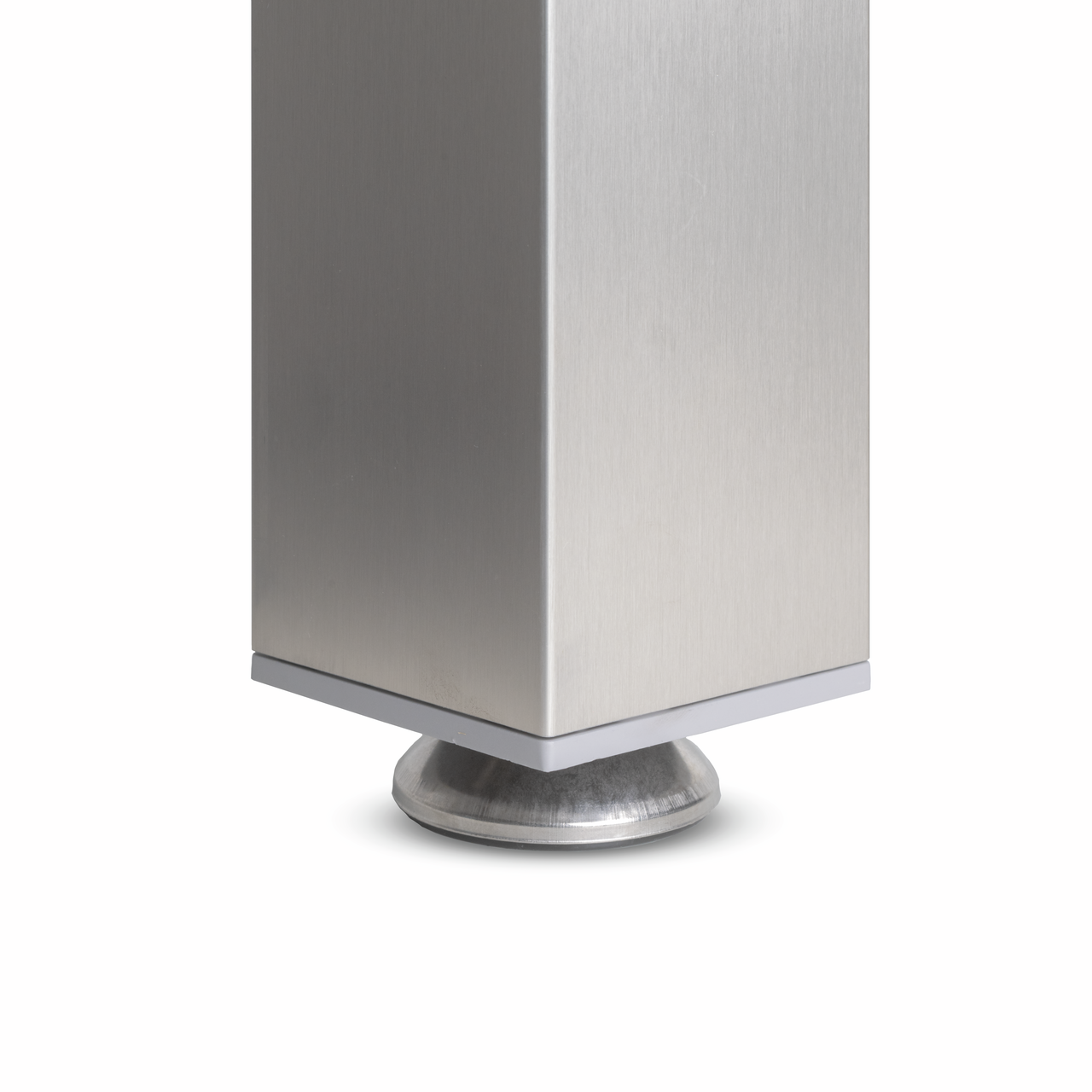

Height adjuster 80, with stainless steel cap
Subscription
Product number:
3032139
- Accessory
- for table frame with 80 x 80 mm
- round
2
variations available

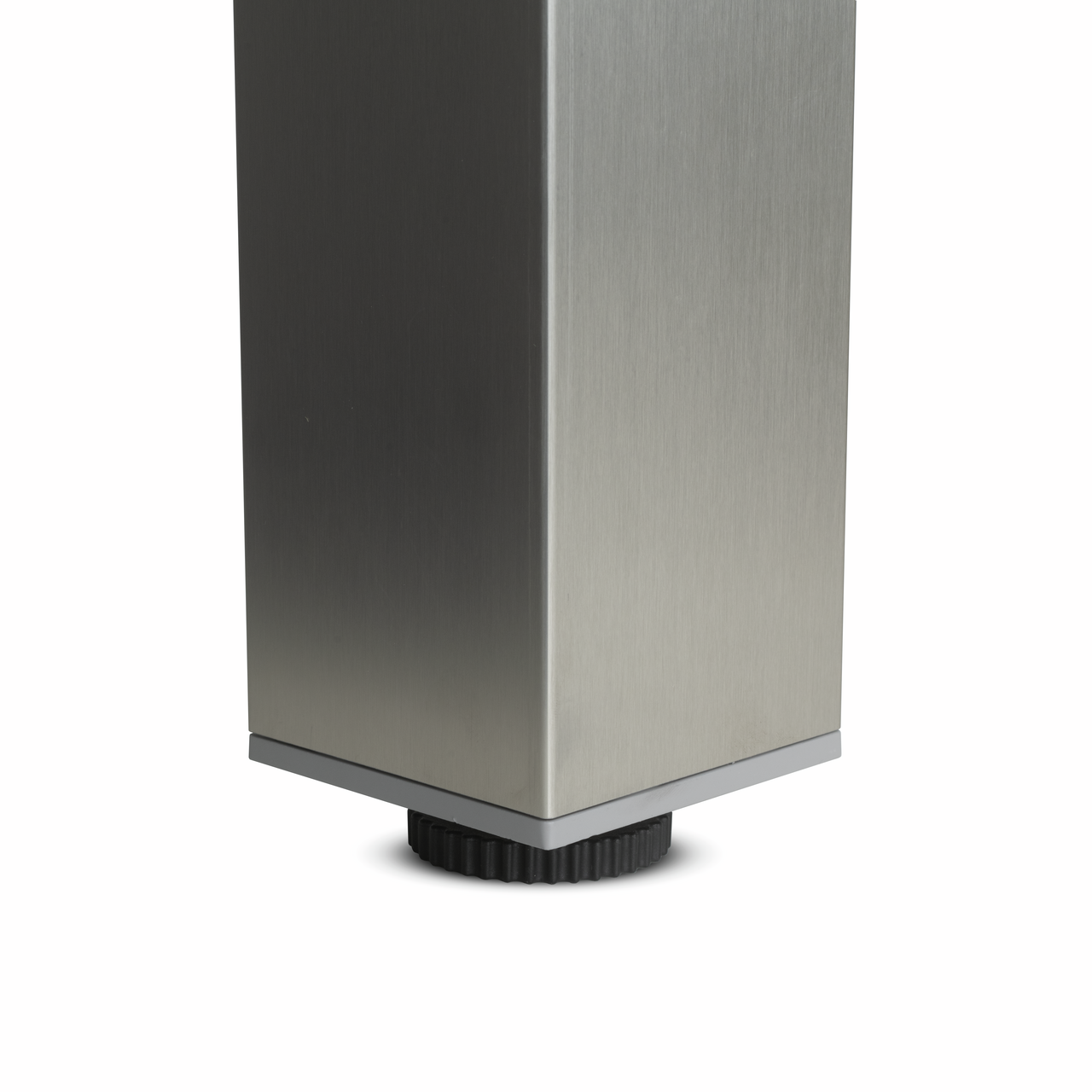

Height adjuster 80, plastic
Subscription
Product number:
3032168
- Accessory
- for table frame with 80 x 80 mm
- round
