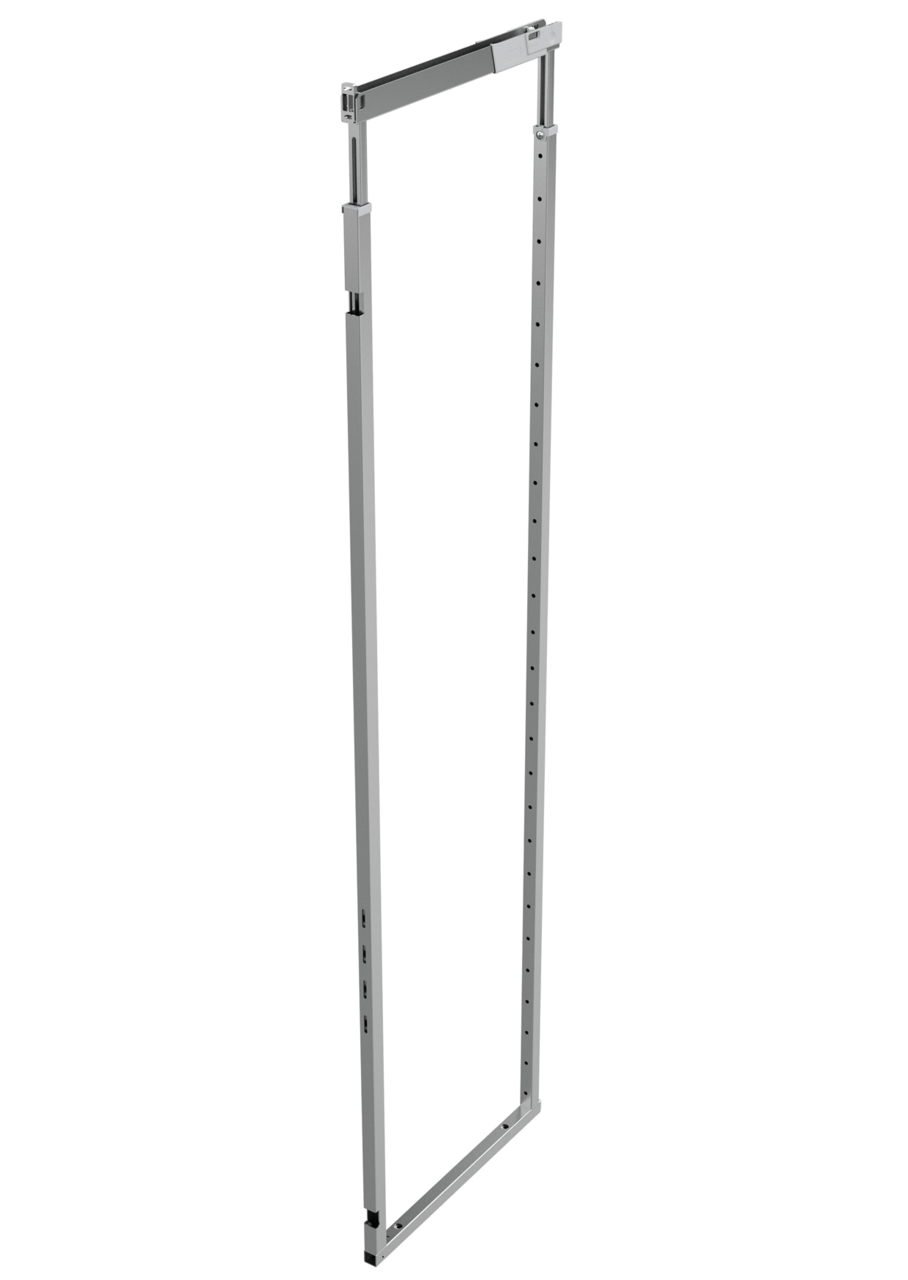

VS TAL Larder frame, H 1200–1450 mm, up to 4 baskets, anthracite

Product number: 8037153

Tall cupboard pull-out
Cabinet width: for 300 and 400 mm body widths

Height

1.200 - 1.450 mm

1.450 - 1.700 mm

1.700 - 1.950 mm

1.950 - 2.140 mm

1.900 - 2.140 mm

Max. number of storage elements

Colour

silver

anthracite

Prices will only be shown once logged in.

Description

VS TAL Larder frame, H 1200–1450 mm, up to 4 baskets, anthracite

The VS TAL Larder support frame with telescopic height is part of the VS TAL Larder tall cabinet pull-out and is used in the pharmacist's cabinet belonging to the series. A system is available that noticeably facilitates access to all utensils stored in the kitchen cabinet, from food supplies to drinks. Practical features include adjustable installation height with a margin of 1200 to 2140 mm to suit personal needs. The cabinet fitting is connected to the guide rails of the full-extension runner in the upper and lower sections without tools. The maximum load capacity is 80 kg. Variants with different pull-out heights for 4 and 5 storage baskets are available.

For tall cupboard pull-out VS TAL Larder.
— cabinet width 300 and 400 mm
— installation depth min. 503 mm
— installation height 1200 to 2140 mm
— support frame height telescopic
— tool-free mounting of the frame on the lower and upper runners
— load capacity max. 80 Kg
— individual height adjustment of the baskets
— 3D front adjustment

Please note:
Runners and baskets need to be ordered separately!

Article type:

Tall cupboard pull-out

3D front adjustment:

Yes

Cabinet width:

for 300 and 400 mm body widths

Colour:

anthracite

Height adjustment of storage elements:

individual height adjustment

Installation depth:

min. 503 mm

Load capacity of the system:

176,3696 lb

Location:

tall cabinet

Mounting/Fixing:

tool-free mounting of the frame on the lower and upper runners

Note:

Runners and baskets need to be ordered separately!

Telescopic function:

support frame height telescopic

Height:

1.200 - 1.450 mm

Downloads

Data sheet
