PRIME flow P-MRBS 150 wall conduct construction set, light grey
Product number:
4051029
- Accessory
- Wall mounting
Description

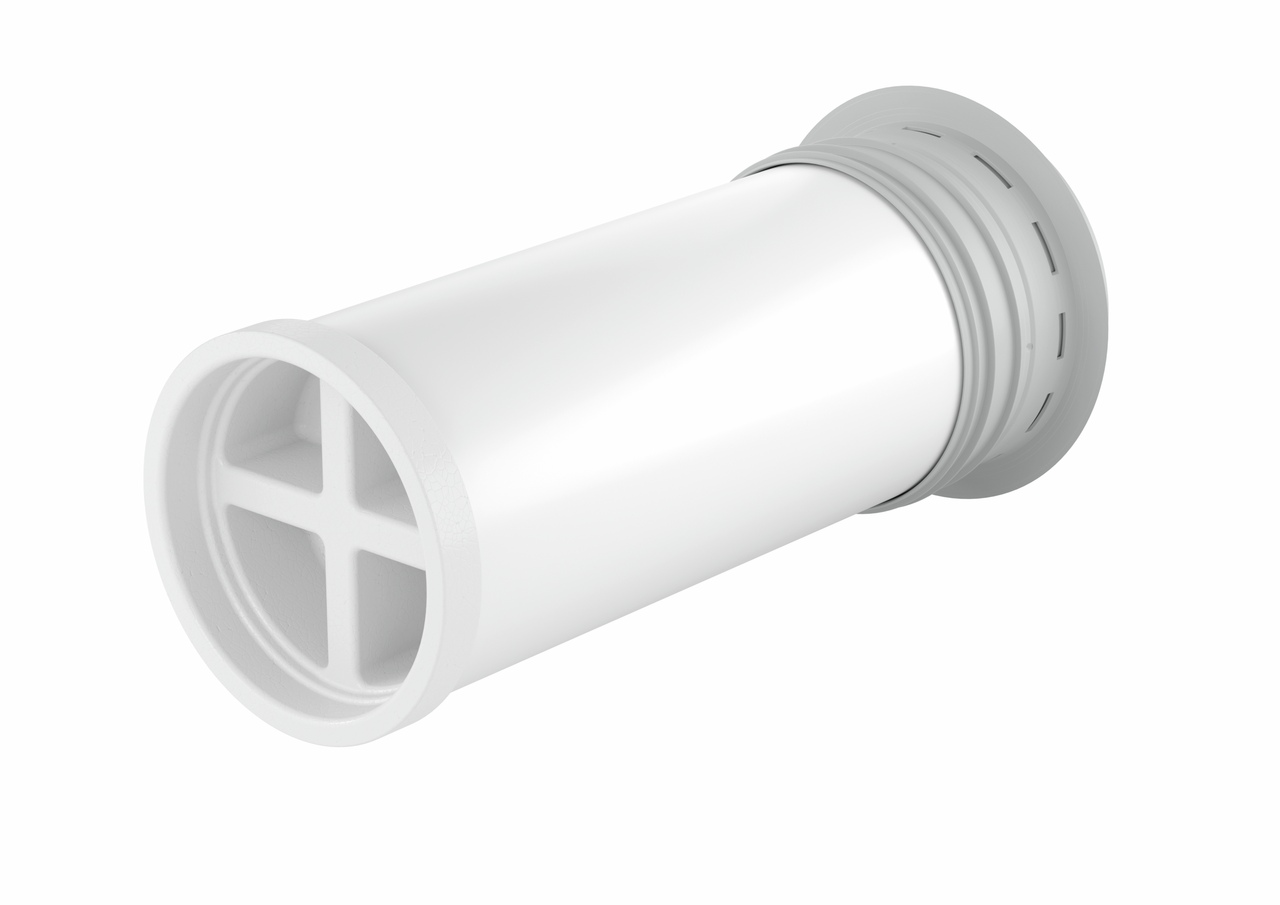

PRIME flow P-MRBS 150 wall conduct construction set, light grey

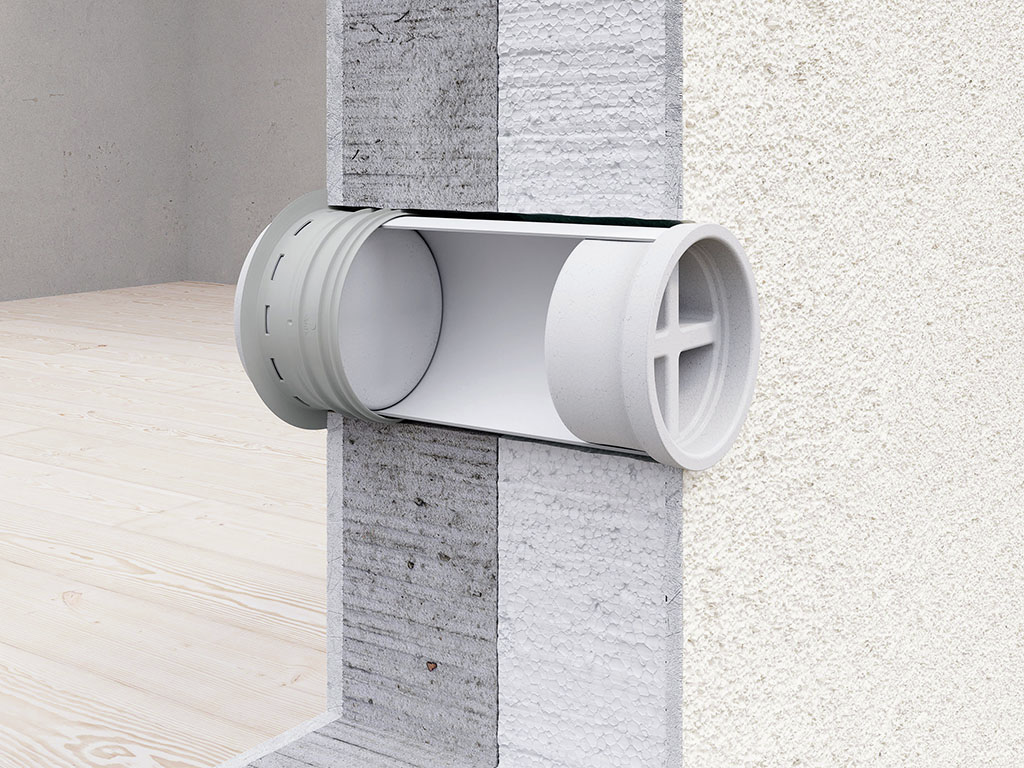

The COMPAIR® PRIME flow P-MRBS 150 wall box rough-in kit facilitates the planning and realisation of an extractor system entirely without tools or silicone. As a model from the patented COMPAIR® PRIME flow system, this is not only an innovative but also ecological ventilation solution whose individual parts come from socially responsible production. The set includes a P-RRO 150 round duct with a length of 500 mm and a wall connection sleeve with three lip seals. Thanks to the intelligent design, the pipe of the wall box is fixed and at the same time shielded from the inside wall. The two hard foam plugs with plastering edge provided for inside and outside prevent the penetration of dirt and dust during the shell construction phase. The integrated alignment aid is particularly practical. The plugs can be easily removed in the next construction phase in order to install the exhaust air wall box provided for this purpose inside the duct.
— for on-site installation and in preparation for wall conduct installation
— connection of round pipe and round pipe bends
Set consisting of:
— 1 x P-RRO 150 round pipe, 500 mm
— 1 x wall connection sleeve

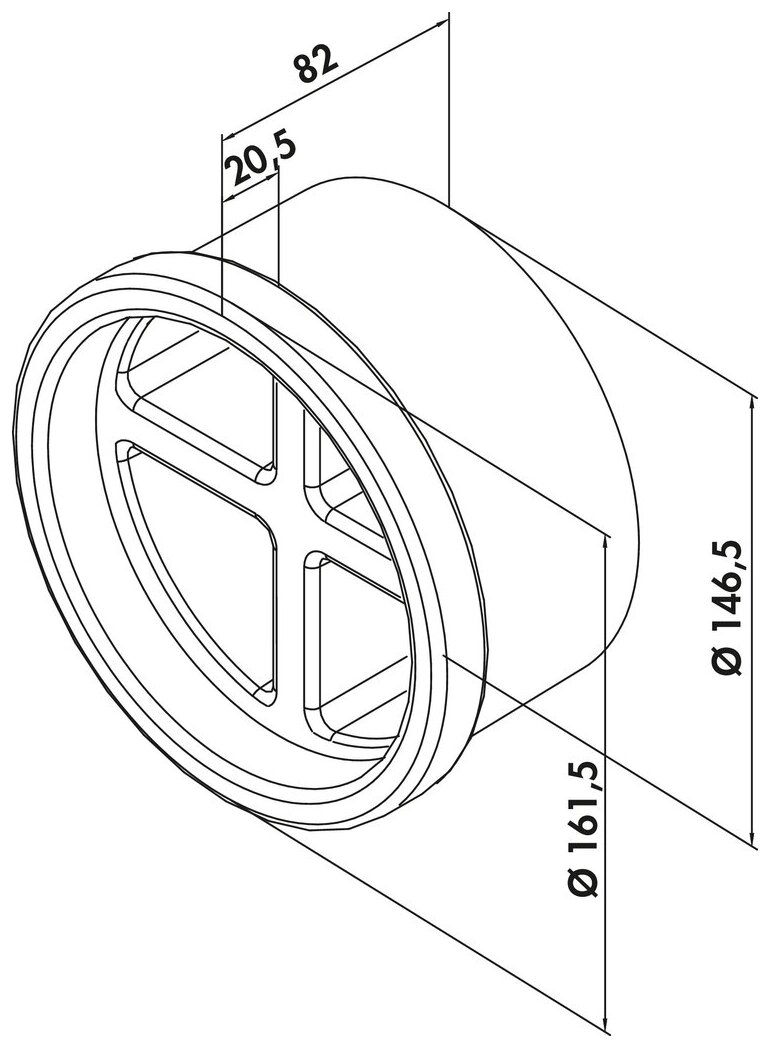

— 2 x hard foam plugs
— for on-site installation and in preparation for wall conduct installation
— connection of round pipe and round pipe bends
Set consisting of:
— 1 x P-RRO 150 round pipe, 500 mm
— 1 x wall connection sleeve
— 2 x hard foam plugs
Article type:
Accessory
Brand:
PRIME flow
Colour:
white/light blue
Form:
round
Length:
220 - 550 mm
Mounting/Fixing:
Wall mounting
Output drive:
round
System dimension:
150
Width:
190 mm
