Lupo LED, L 450 mm, 8 W, aluminium coloured
Product number:
7062253
- linear light
- Under-cabinet/niche light
- 3900 K neutral white
Description
Lupo LED, L 450 mm, 8 W, aluminium coloured

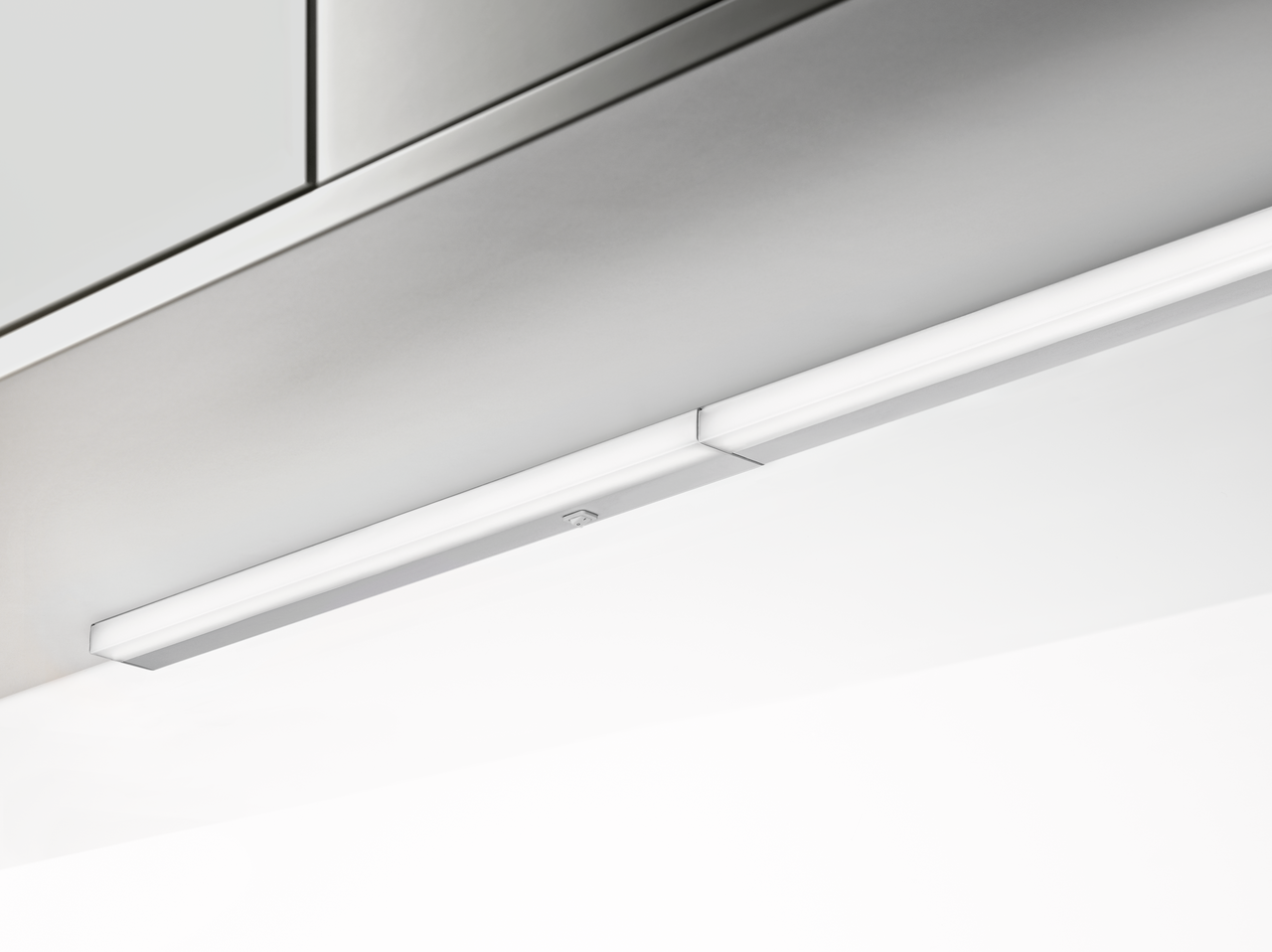

The Lupo LED under-cabinet luminaire with elegant aluminium housing and a plastic cover is mounted on the underside of the wall cabinets belonging to the kitchen unit. It blends harmoniously into contemporary kitchen architecture and provides balanced lighting for the work area. At 3900 K, the light colour corresponds to a neutral white tone that enables all kitchen tasks to be carried out efficiently. The switch is easily accessible on the underside of the housing. To extend the illumination area, several under-cabinet luminaires up to a maximum of 200 W can be mounted head to head or with the desired spacing. The required connection cables are part of the respective basic equipment. The cable outlet is located on the left side of the housing, whereby a connection to the side or to the rear is possible. The connecting cable can be ordered separately. To meet individual requirements, the LED luminaire is available in different lengths.
Lamp mounted from below. Aluminium body with plastic cover, head to head installation possible.
Individual lamp with switch
— 230 V (high voltage), 3900 K neutral white
— 75 lumen/watt
— 14 x 40 mm (H x W)
— 80 mm connection line
— cable outlet rear left side of lamp
— max. 200 watts can be connected
— mains connection HV (7062249 white or 7062269 black) to be ordered separately
This product contains a light source of energy efficiency class G.
Lamp mounted from below. Aluminium body with plastic cover, head to head installation possible.
Individual lamp with switch
— 230 V (high voltage), 3900 K neutral white
— 75 lumen/watt
— 14 x 40 mm (H x W)
— 80 mm connection line
— cable outlet rear left side of lamp
— max. 200 watts can be connected
— mains connection HV (7062249 white or 7062269 black) to be ordered separately
This product contains a light source of energy efficiency class G.
Article type:
Luminaire
Certification:
CE
Colour:
aluminium coloured
Colour temperature:
3900 K neutral white
Connection:
One-sided
Design:
Under-cabinet/niche light, linear light
Energy efficiency class:
G
Form:
angular
Height:
14 mm
Illuminant included:
Yes
Illuminant power:
8 watts
Illuminant type:
LED
Length:
450 mm
Length of the supply line (primary):
80 mm
Light yield:
75 lumen/watt
Mains voltage:
230 V
Material cover:
plastic
Material housing:
aluminium
Mounting/Fixing:
Base unit installation (wall unit/shelf)
Note:
max. 10 lamps can be connected
Replaceable illuminant:
No
Switch:
Yes
Transformer / converter required:
No. Mains cable HV must be ordered separately.
Width:
40 mm
