Gliera EHV 1, incl. base plate 550 x 550 mm

Product number: 3033001

Table frame
Table frame
Adjustable

Dimensions profile foot/floor plate

550 x 550 mm

650 x 650 mm

Prices will only be shown once logged in.

Description

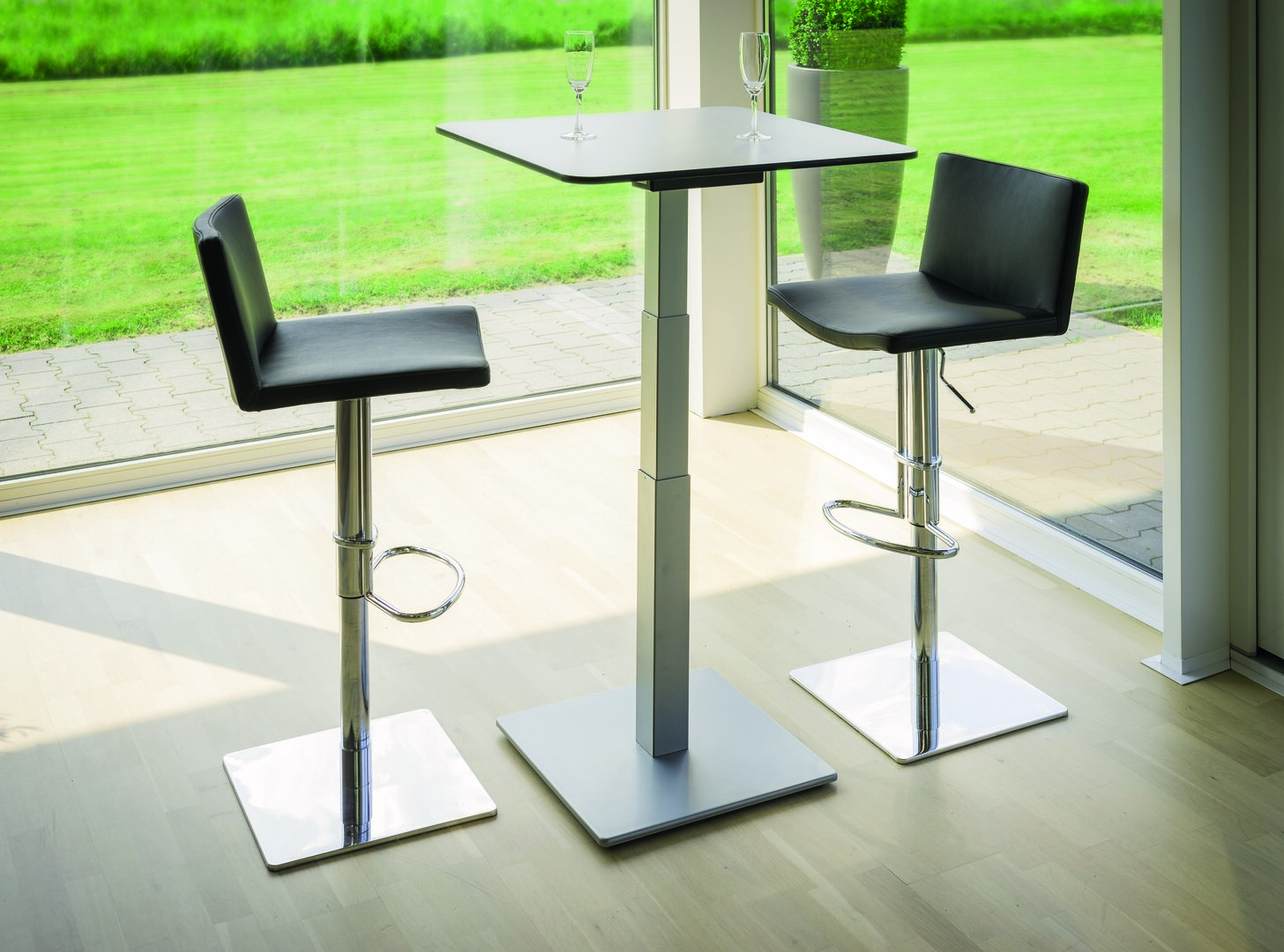

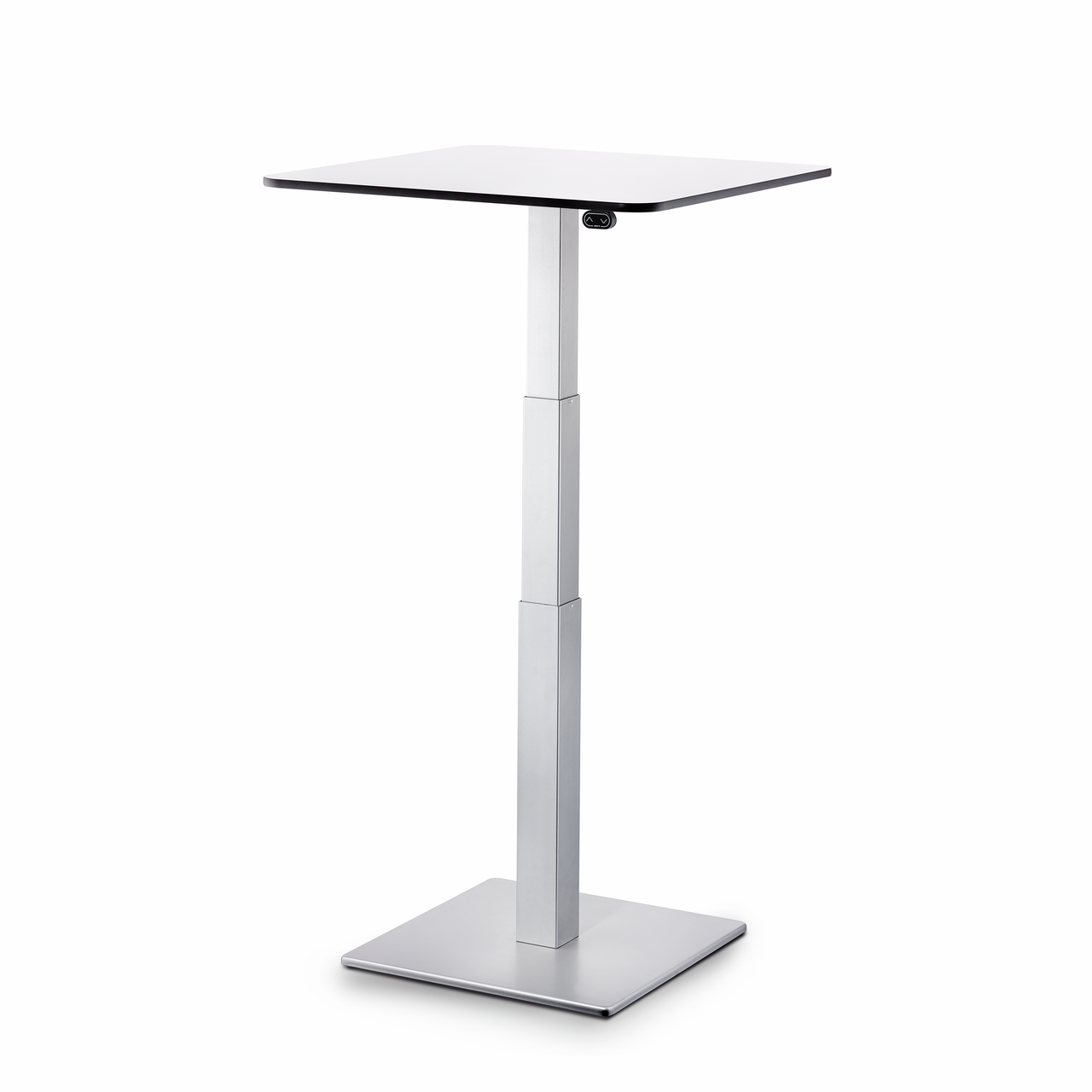

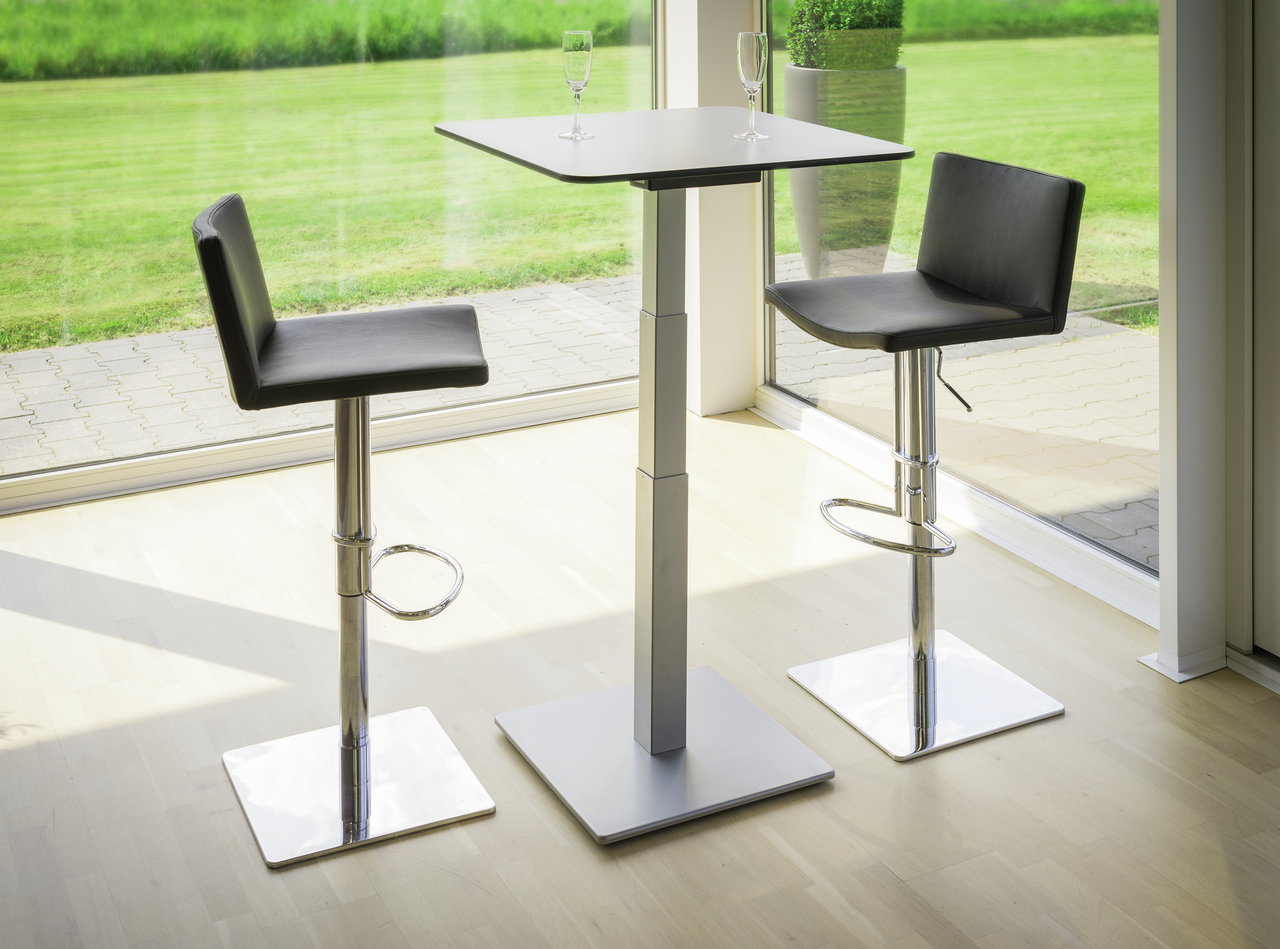

Gliera EHV 1, incl. base plate 550 x 550 mm

The Gliera EHV 1 table column forms an elegant and elegant basis for individual table solutions in the kitchen as well as for other purposes. Visually, it impresses with clear contours that gain radiance through finely polished surfaces with a stainless steel finish. A real highlight is the infinitely variable height adjustment of the metal frame with electric drive. A battery box for cordless operation is available as an option. The material of the tabletop can be freely selected to set the desired accent. In order to maintain stability, the maximum sizes should be taken into account when searching. They differ depending on the dimensions of the two base plate versions. As a further accessory, the EHV-M control element is recommended for maximum comfort. It is mounted underneath the table top and enables presetting of three different heights via the memory function.

Height adjustable, single-column table frame with base plate. Incl. operating element for height adjustment.
— pipe 70 x 70 mm
— stainless steel coloured coated
— lifting capacity 50 kg
— infinite electrically-driven height adjustment from 550 to 1210 mm
— 3000 mm mains connection line
— table top for 3033001 max. 800 x 800 mm
— table top for 3033002 max. 1000 x 1000 mm
— table top not included in scope of delivery
— optional battery box (ordered separately)

By using the rechargeable battery box with 3000 mm mains connection line, height adjustment is also possible without permanent power supply.

Article type:

Table frame

Adjustment:

continuously variable

Colour:

stainless steel coloured coated

Column/tube shape:

square

Dimensions column/tube:

70 x 70 mm

Dimensions profile foot/floor plate:

550 x 550 mm

Frame type:

Table frame

Height compensation:

incl. operating element for height adjustment

Height without APL:

550 - 1.210 mm

Length of the supply line (primary):

3.000 mm

Lifting force:

50 kg

Max. Dimensions for table top:

800 x 800 mm

Note:

optional battery box (ordered separately), table top not included in scope of delivery

Number of columns/pipes:

Preparation for:

APL plate

Properties:

Adjustable

Shape:

square

Suitable for:

freestanding tables

Type of height adjustment:

electrically

Material:

steel

Height:

550 - 1.210 mm

Downloads

Data sheet

Accessories

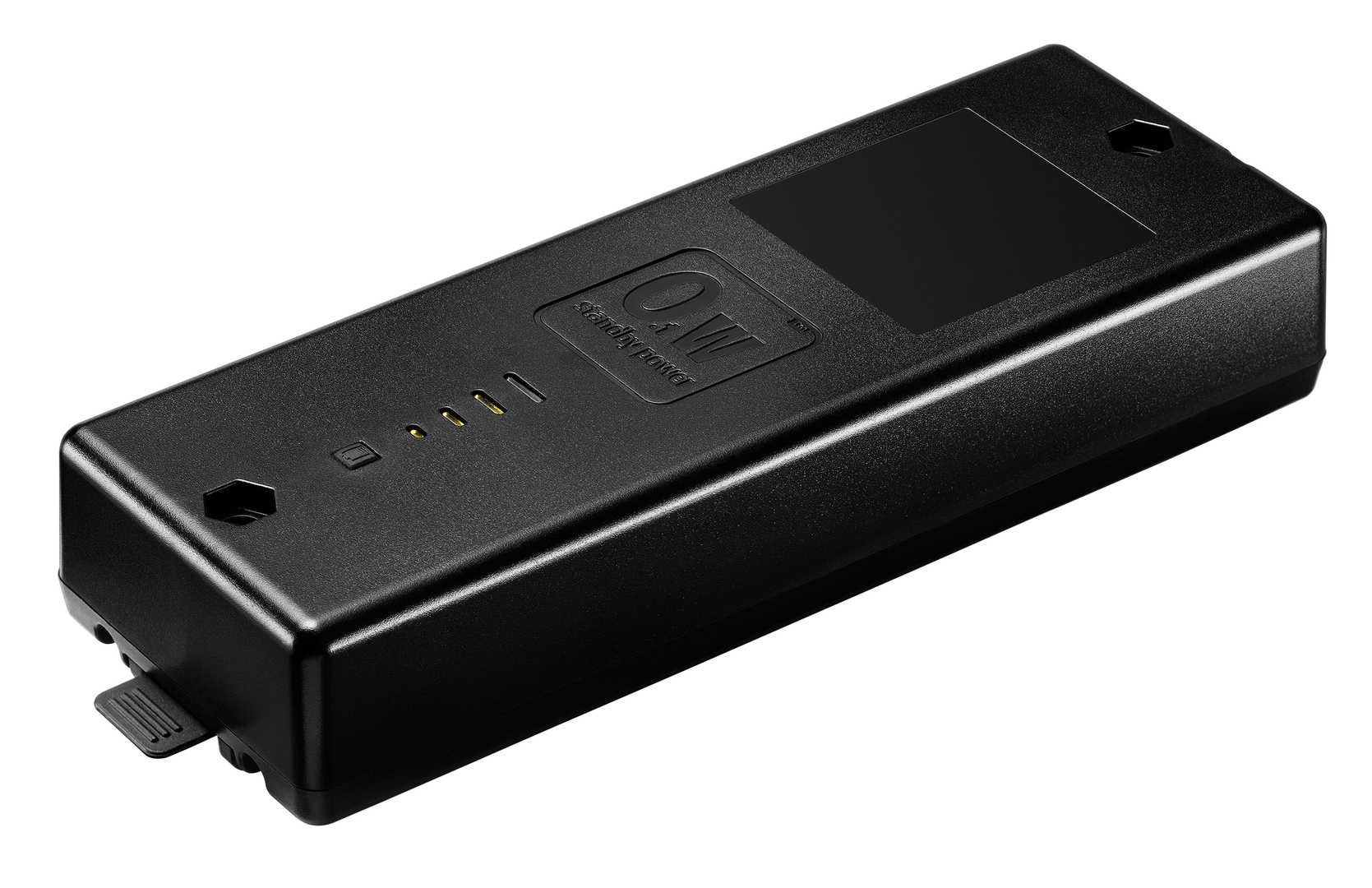

Battery box, for indirect current circuit

Product number: 3033010

Accessory

Subscription

Details

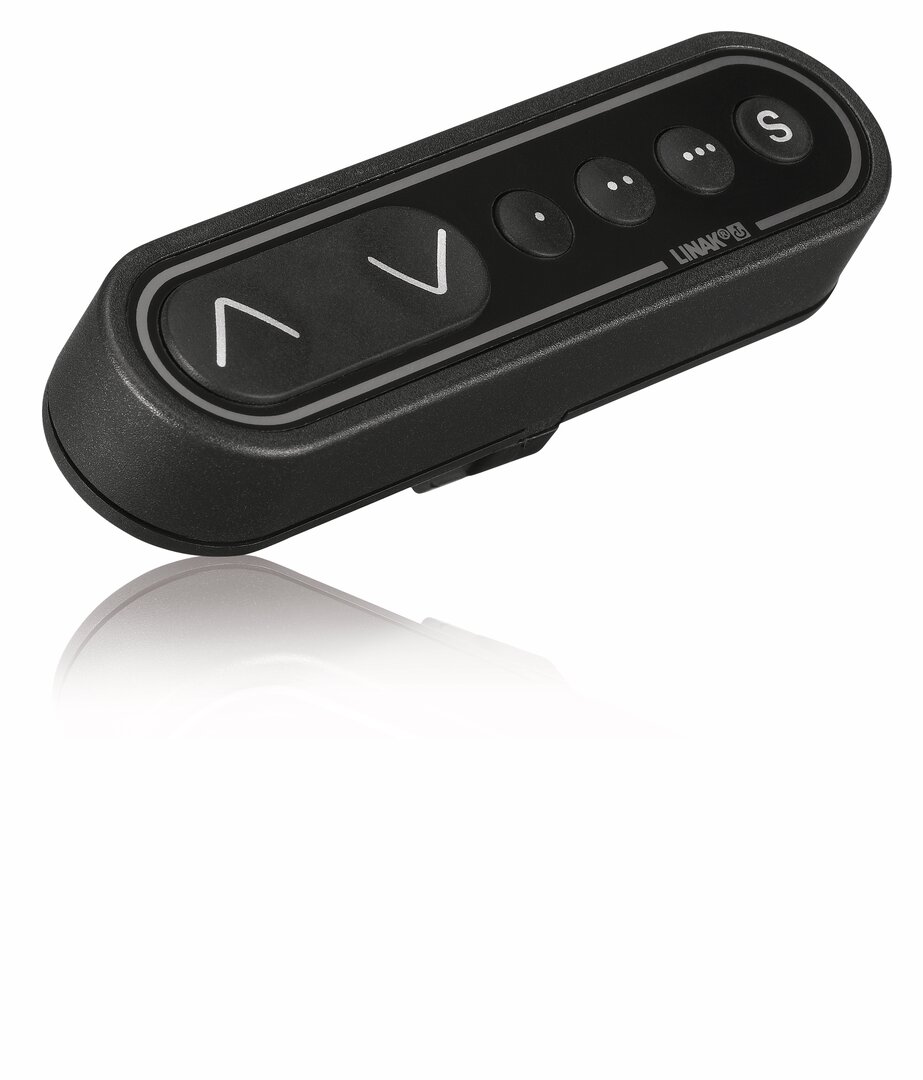

Control element EHV-M, black

Product number: 3033004

Accessory

Subscription

Details
