Description
Undersink unit TR 3500, white
The smart TR 3500 hot water tank for low-pressure taps with drip and pressure stop provides a lot of comfort when washing up and cooking. It reliably supplies a high mixed water volume of 14 l with 40 °C hot water. At the same time, the under-sink unit avoids annoying dripping from the tap spout when heating up and thus does not waste any water. This means that the sink stays clean while at the same time being environmentally friendly. Thanks to the integrated pressure cut-off, overpressure and malfunctions are avoided. The easily accessible rotary switch in the front allows the desired water temperature to be set continuously within a range of 35 - 85 °C. In addition, a frost protection or energy-saving setting can be selected. The tank is made of durable plastic with high-quality Lambdapor insulation. This ensures that the temperature of the water is retained. The undersink storage tank is equipped with the advanced CLICKFIX mounting technology, which enables uncomplicated and quick wall mounting. In addition, the colour-coded brass water connections facilitate safe installation.



Drip stop prevents dripping during heating, saves water and reduces lime scale. The pressure stop shows the calcification and recognises incorrect water connection from 0.25 MPa (2.5 bar).
— small water heater 5 litres, white. Open (pressure-free).
— with drip and pressure stop
— CLICKFIX assembly technology saves time and money
— container material in plastic with high-quality EPS expanded polystyrene insulation
— temperature continuously variable from approx. 35 °C to 85 °C with engaged positions at "*", "I" and "e" • frost protection setting
— power indicator lamp
— power-saving cover plate
— mixed water volume display on the power-saving cover plate
— the outlet of a faucet should always be free
— if possible, do not use a shower fitting
— high mixed water quantity 14 liters 40 °C hot water
— grounding contact easily accessible from the outside for the electrical safety testing according to BGV A3
— lowest standby power consumption of only 0.18  kWh/d
— secure metal water connections in brass, colour-coded
— switchable safety temperature limiter
— contact/moisture protection IP24D
— electricity supply 230 V, ready to plug in, connected load 2.2 kW
— weight with water 7.7 kg

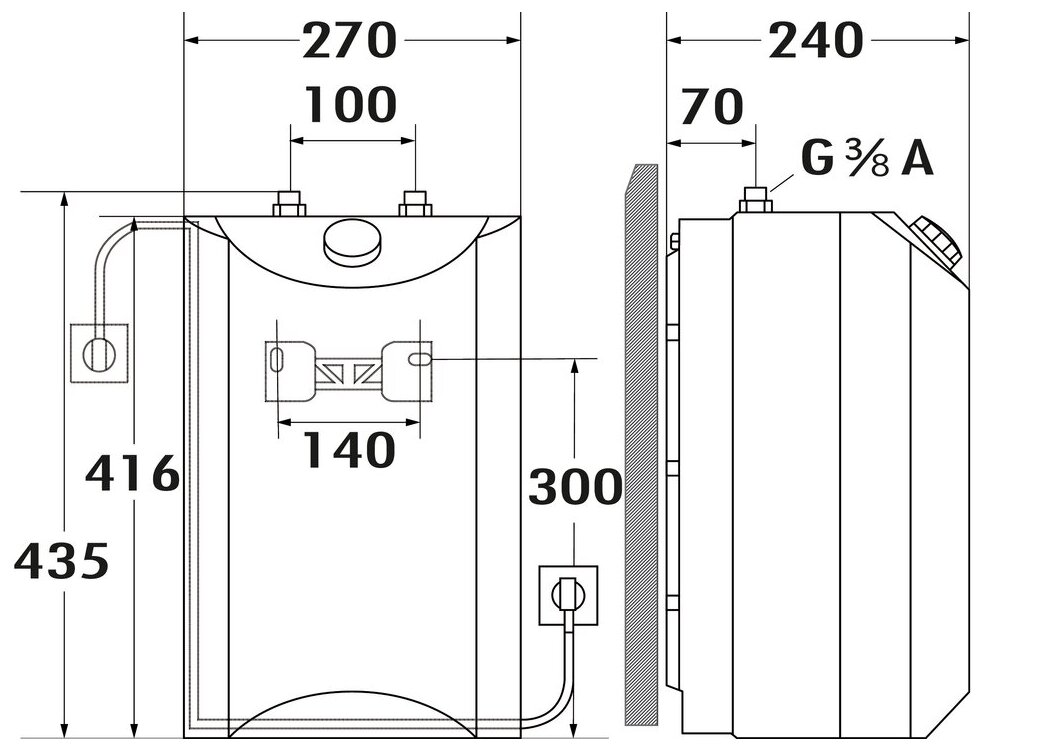

— device dimensions (H x W x D) 435 x 270 x 240 mm





Article type:
Hot water tank
Certification:
CE, VDE
Colour:
white
Depth:
240 mm
Discontinued item:
No
Energy efficiency class:
A
Height:
435 mm
Integrated display:
mixed water volume display on the power-saving cover plate, power indicator lamp
Mains voltage:
230 V
Material:
plastic
Material connections:
brass
Material container:
plastic with high-quality EPS expanded polystyrene insulation
Mixed water quantity:
40 °C 14 l
Mounting/Fixing:
CLICKFIX assembly technology saves time and money
Note:
grounding contact easily accessible from the outside for the electrical safety testing according to BGV A3, if possible, do not use a shower fitting, ready to plug in, connected load 2.2 kW, the outlet of a faucet should always be free
Operating mode:
Cable
Operating pressure:
low pressure
Protection class:
IP24D
Protection class:
I
Standby energy consumption:
0,18 kWh/d
Temperature setting:
continuous temperature setting of 35–85 °C
Under-sink unit version:
Resettable safety temperature limiter, With drip and pressure stop, With frost protection setting
Volume/Content:
5 l
Weight with water filling:
16,975574 lb
Width:
270 mm
