AEG under-sink device Small U5, white
- Hot water tank
- pressure-free (open)
- low pressure
Prices will only be shown once logged in.

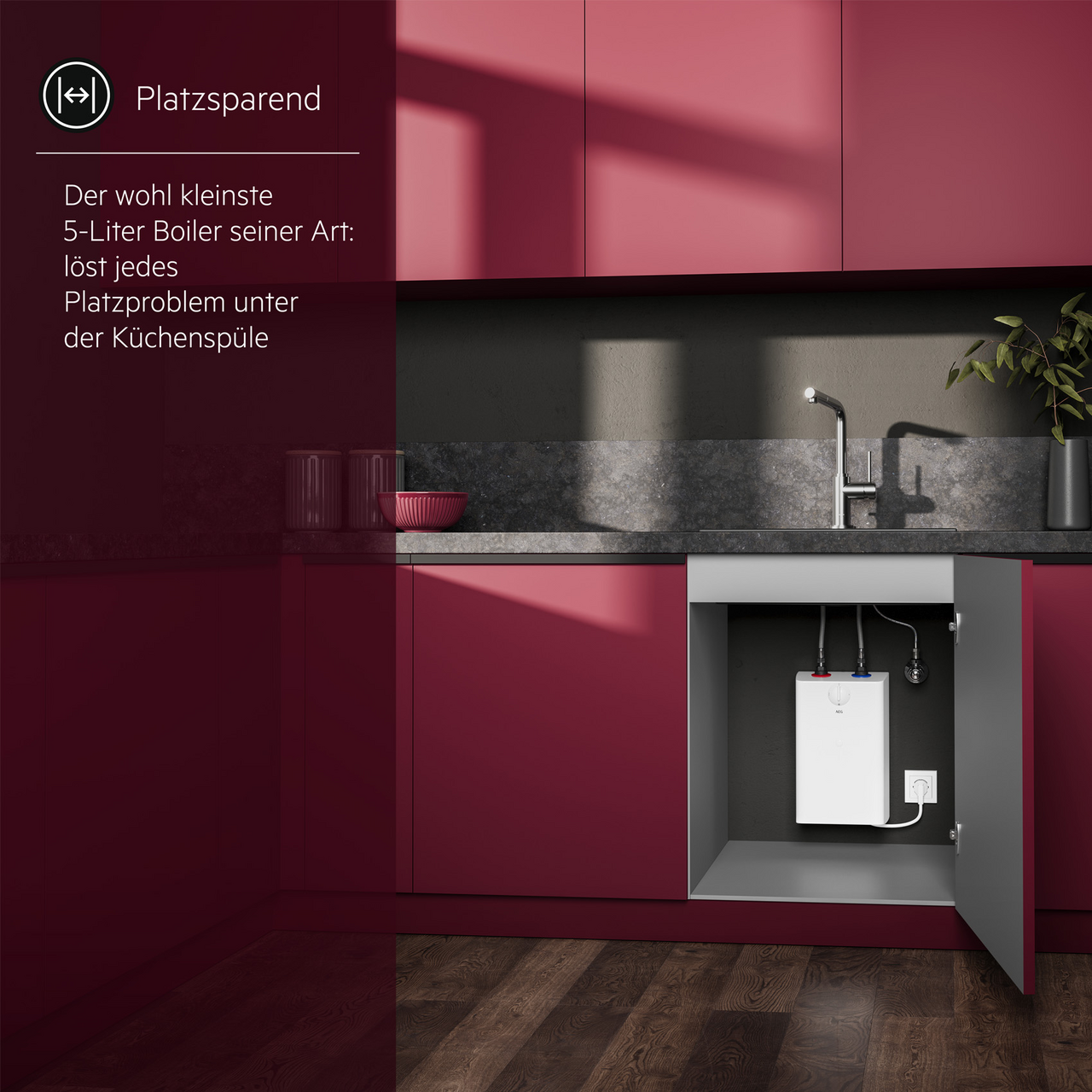

Thanks to its compact dimensions of 365 x 230 x 155 mm (H x W x D), the AEG U5 compact water heater solves virtually any space problem under the kitchen sink, meaning the free space in the cupboard can be used for other purposes. What’s more, the temperature of the outgoing water can be adjusted continuously from 30–85 °C. This means the U5 not only maintains the set temperature consistently but also heats up particularly quickly thanks to its 2 kW heating element. Lower water and electricity consumption therefore save you money. The tank is made of robust and durable plastic. Furthermore, compact thermal insulation keeps heated water warm for a long time. The AEG U5 small storage tank has been awarded energy efficiency class A for its efficient operation. The small storage tank is supplied ready for easy installation – complete with a safety plug and wall mounting bracket.

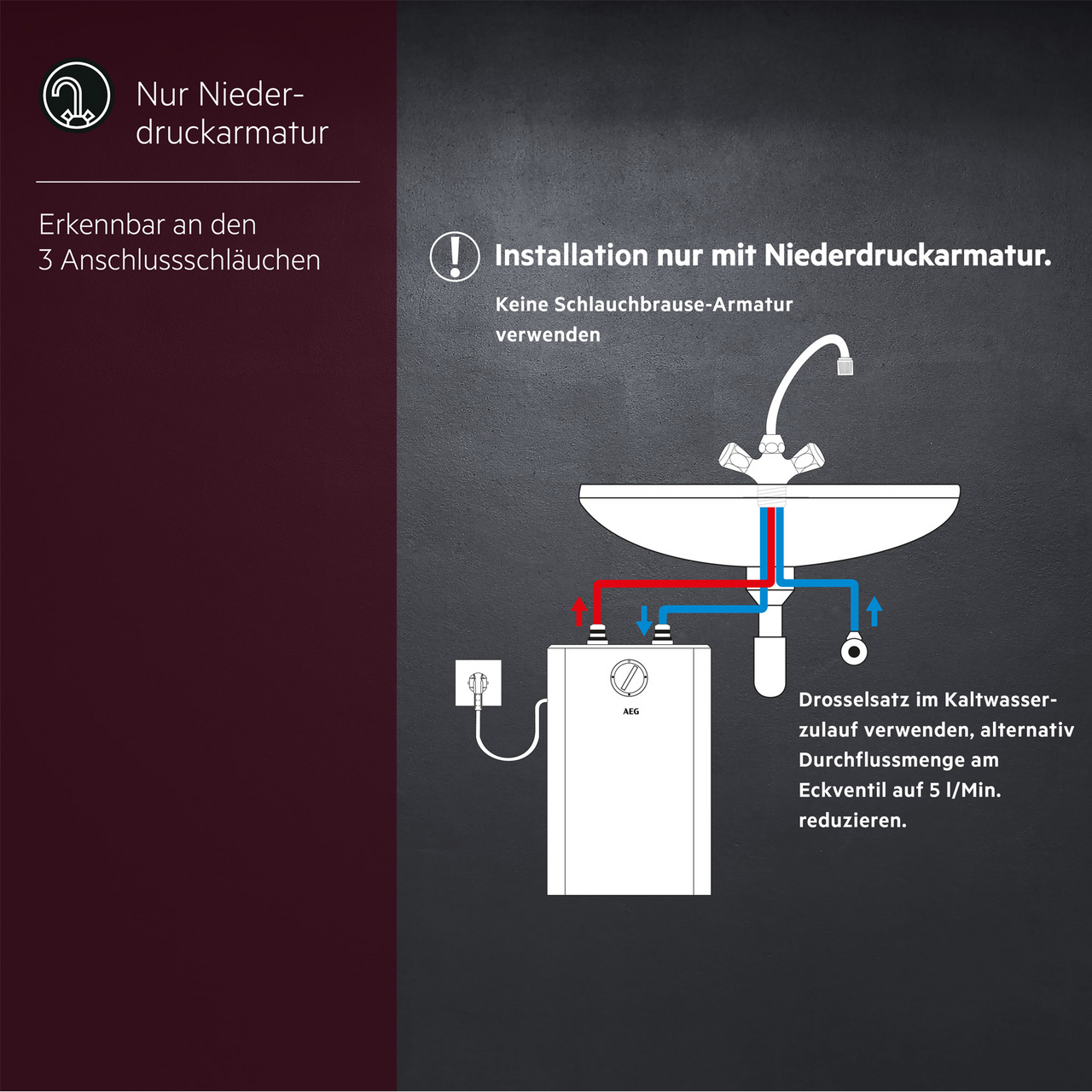

The AEG U5 electric hot water storage tank must only be operated with a suitable low-pressure tap. You can recognise this by the three connection hoses. Installation takes place at the cold water connection in the kitchen.
Please note that the appliance must not be exposed to direct water pressure. The tap spout also serves to vent the system. Limescale deposits can block this spout, which may cause pressure to build up inside the appliance.
Storage water heater.
— installation depth only 155 mm
— small water heater 5 litres, white. Open (pressure-free).
— container material in plastic
— compact insulation
— continuous temperature setting of 30–85 °C
— mixed water volume 40 °C 7.5 l
— the outlet of a faucet should always be free
— only use special flow regulators for pressure-free hot water storage heaters
— do not use a hose to extend the outlet of the faucet
— avoid using shower faucets where possible to prevent back pressure

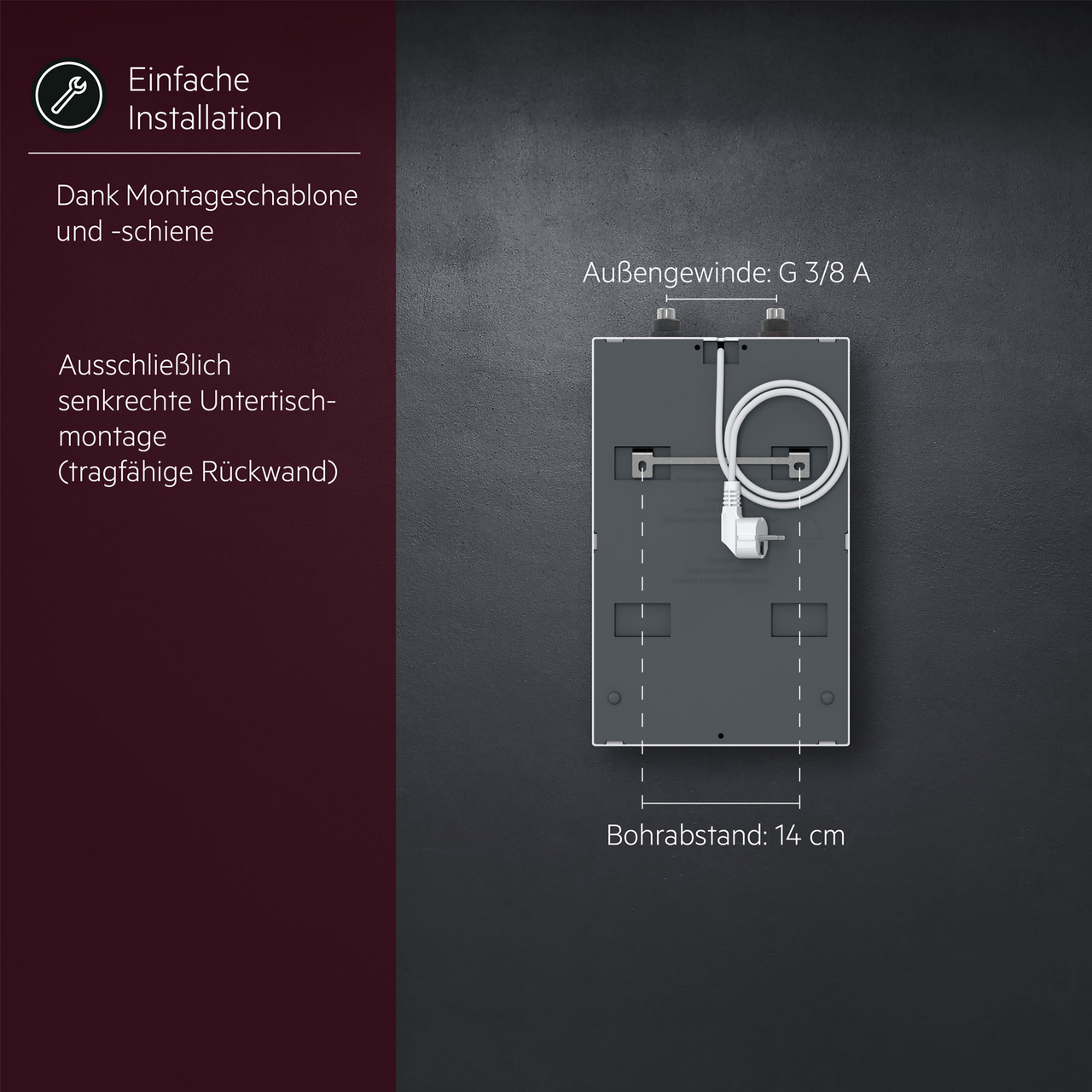

— with earthing contact plug and wall mounting strip
— safety temperature limiter can be reset by pulling the mains plug
— contact/moisture protection IP24
— power supply 230 V, 50 Hz, 10 A
— ready to plug in, connected load 2 kW
— weight with water 7.4 kg

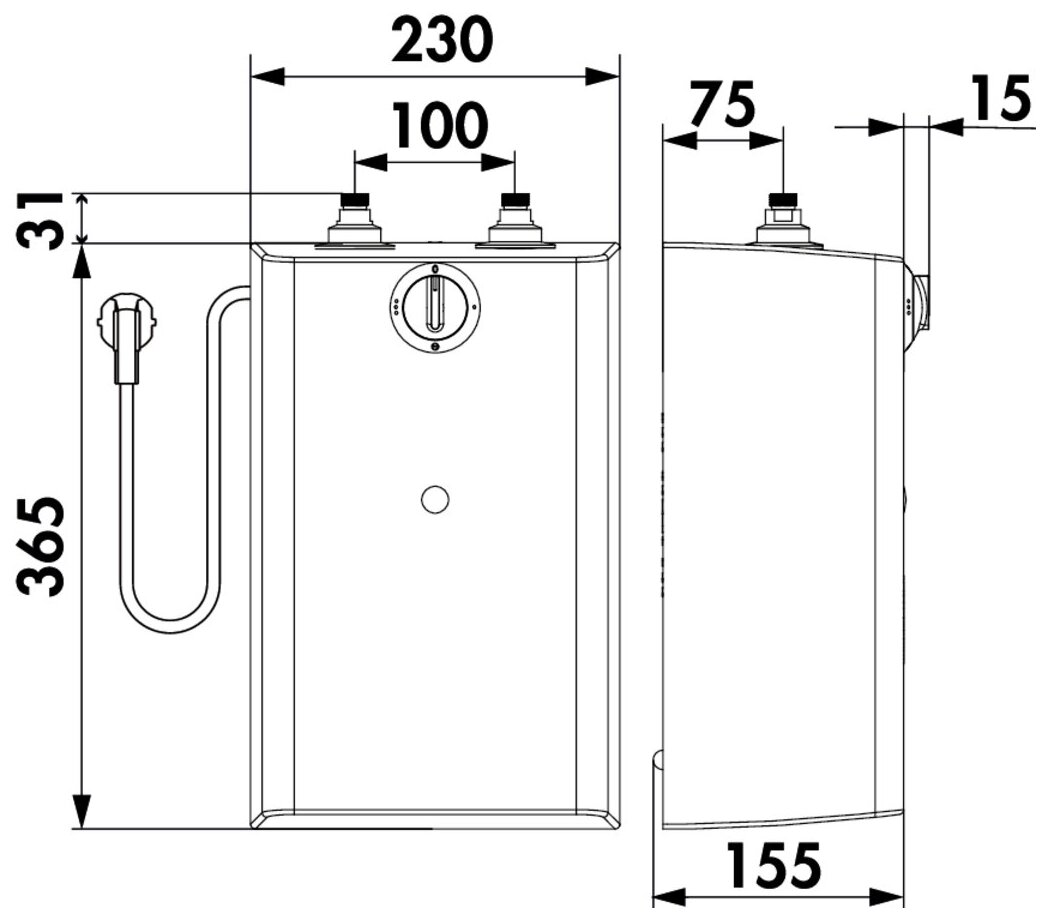

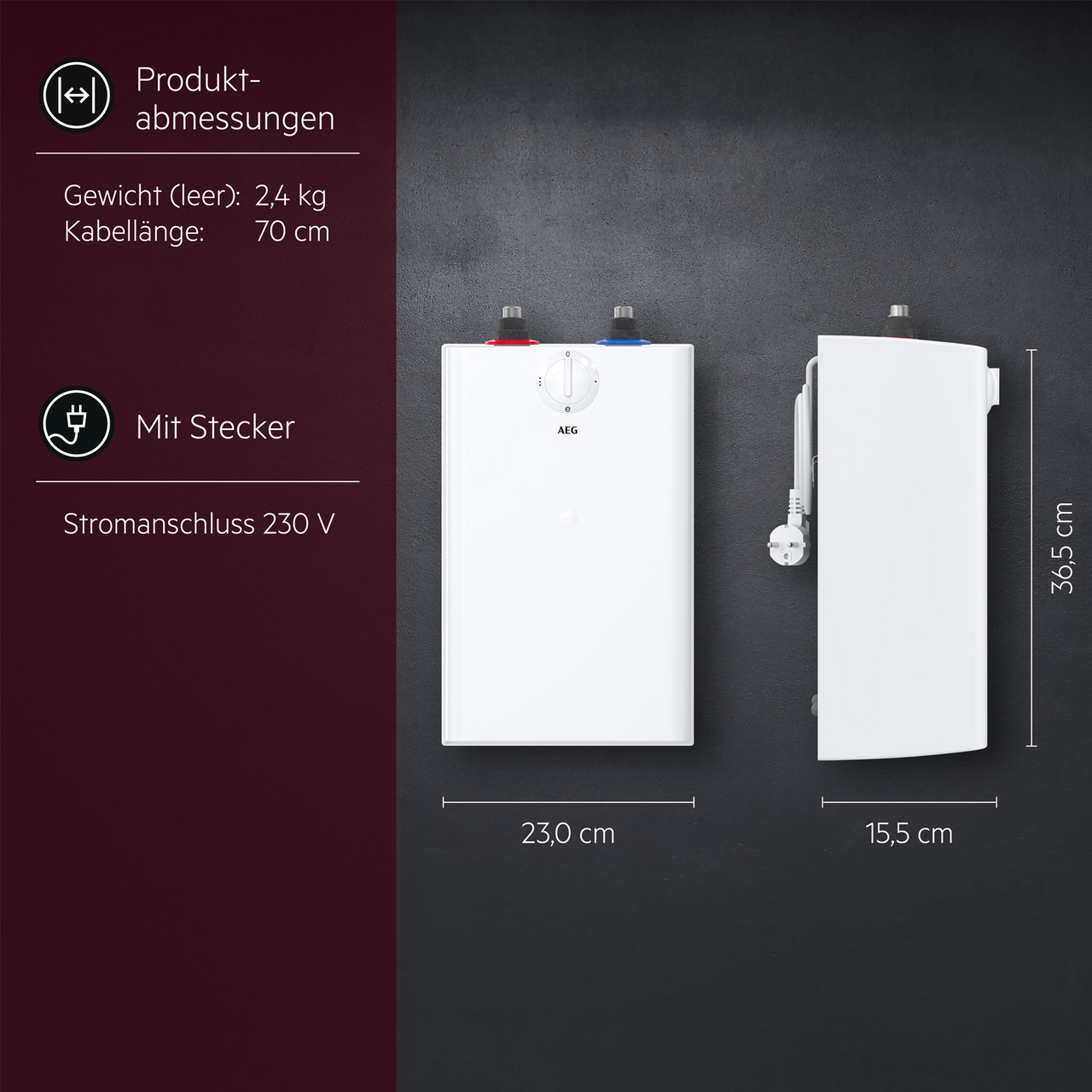

— device dimensions 365 x 230 x 155 mm (H x W x D)
— maximum water pressure 4 bar
— max.water flow 5 l / min.
