Product information:

E-Jal Col® 125 wall conduct incl. THERMOBOX, white, stainless steel

Product number: 4022046

Wall sleeve
installation in the wall

Prices will only be shown once logged in.

Description

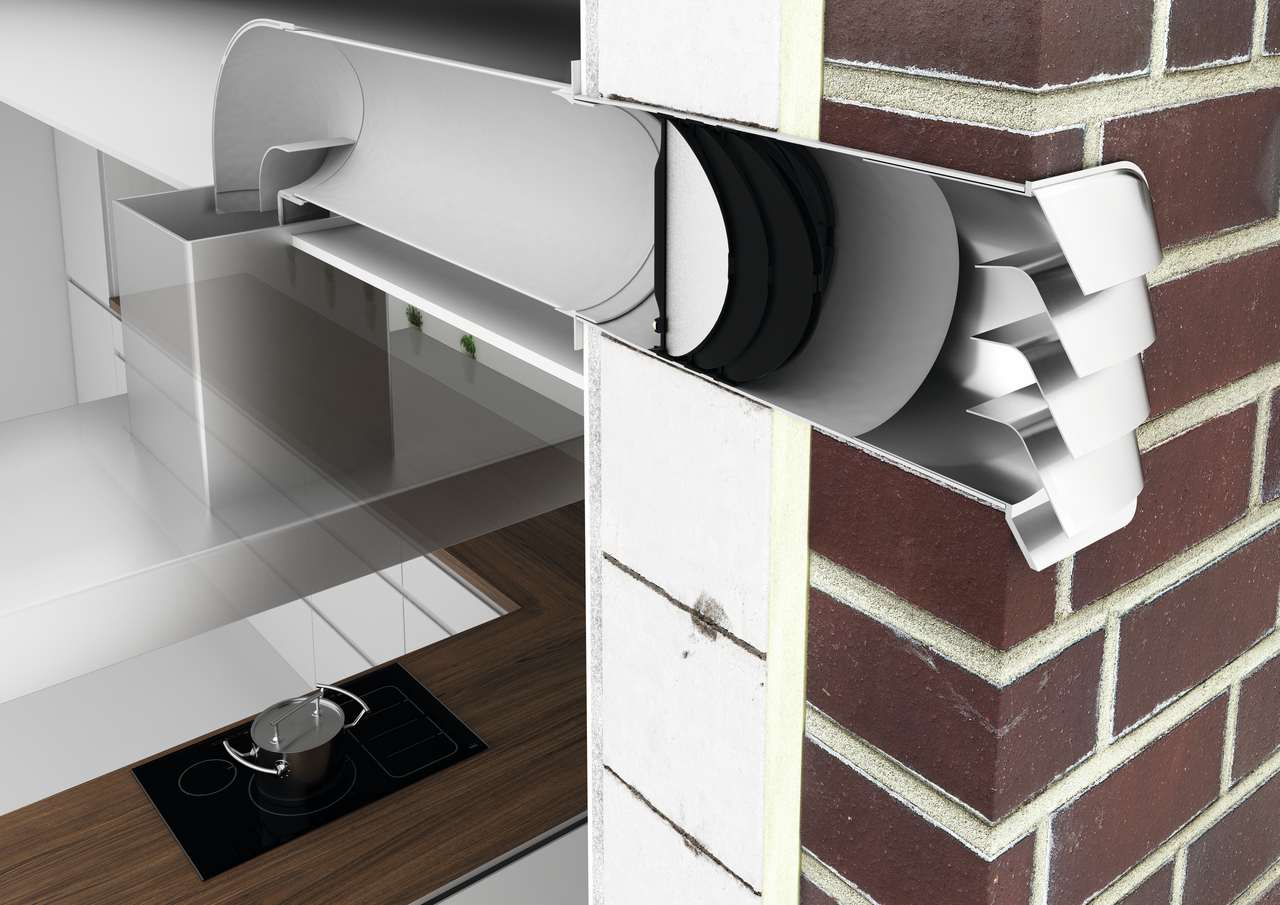

The telescopic COMPAIR^® flow E-Jal Col^® 125 wall box creates a pleasant room climate when using an extractor bonnet in the kitchen. Thanks to its THERMOBOX, the wall duct offers additional comfort. Furthermore, the exhaust air wall box has the stainless steel external louvre E-Jal Col^®. Special guide bodies on the louvres of the louvre ensure optimised flow guidance. In this way, vapours are reliably conveyed to the outside. The wall duct is part of the patented COMPAIR^® flow air duct system, which achieves an energy-efficient and quiet air flow through insulated guide bodies. The associated THERMOBOX is also an innovative heat retention system that prevents draughts from outside and is characterised by a 20-fold reduction in heat loss compared to standard systems. It opens at a pressure of 65 Pa and enables magnetic opening and closing without rattling noises or vibrations. Furthermore, the insulation system convinces with its Blower Door certification. The connection is made via a round duct with a diameter of 125 mm. The connection depth is 24 mm. The total installation depth of the variable wall duct can be adjusted from 350 to 500 mm and shortened to 205 mm if required. A wall opening with a diameter of 132 mm is required for installation.

Wall conduct with telescopic pipe, incl. built-in heat retention system THERMOBOX and stainless steel external E-Jal Col®. Guide vanes on the slats of the blind ensure optimised flow guidance.
— hose / pipe connection Ø 125 mm
— connection depth 24 mm
— installation depth 350–500 mm, can be shortened to 205 mm
— wall penetration Ø ca. 132 mm
— Blower-Door certified (required opening pressure >65 Pa)

Article type:

Wall sleeve

Certification:

stainless

Colour:

stainless steel/white

Installation depth:

350–500 mm

Mounting/Fixing:

installation in the wall

Opening pressure:

> 65 Pa

Outer diameter:

125 mm

Output drive:

round

Properties:

can be shortened

Shape:

angular

Shortenability:

can be shortened to 205 mm

Support depth:

24 mm

System dimension:

125

Material:

stainless steel

Height:

194,3 mm

Width:

198,4 mm
