PRIME flow COMPAIR Control®, white

Product number: 4043081

Exhaust air accessorie

Prices will only be shown once logged in.

Description

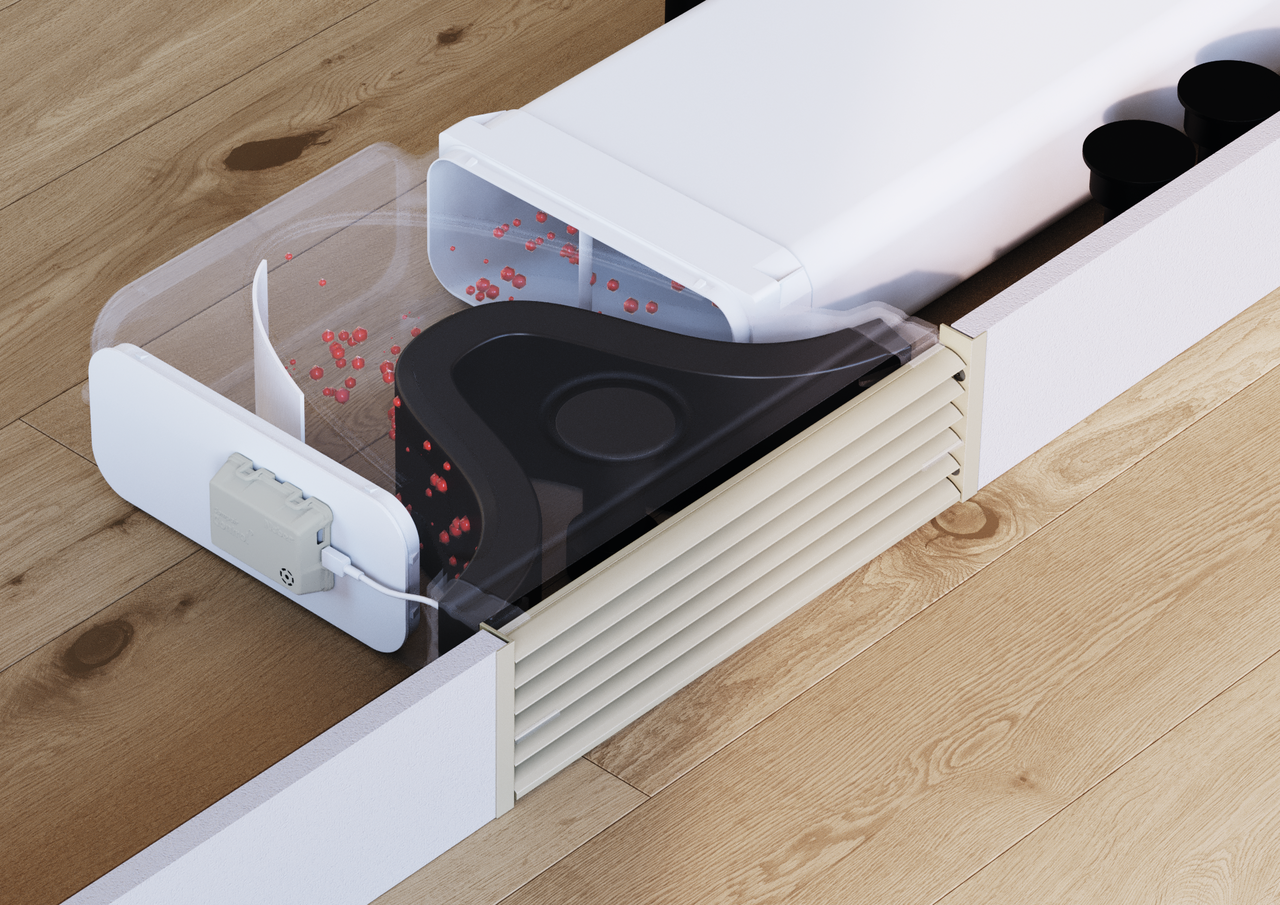

The main task of the COMPAIR GREENflow Control^® control unit is to determine the optimum time for a filter change within the GREENflow filter system. This is used as an innovative recirculation solution in downdraft recirculation systems, which also include trough fans. The control unit can be retrofitted and is connected directly to the GREENflow filter box, which contains the high-performance OMEGA filters. Regardless of the service life, the filter load is checked and classified on the basis of the cooking behaviour. A signal tone when the fan is switched on and off indicates in three stages whether regeneration or replacement of the filters is necessary. In stages 2 and 3, the signal also sounds every 5 minutes or every 5 seconds while the fan is in operation. Based on the intervals, the urgency of the change is emphasised acoustically. The control unit allows simultaneous use of up to four filter boxes, which significantly increases the running time. When the filters are removed, the control unit is automatically reset via the integrated light sensor.

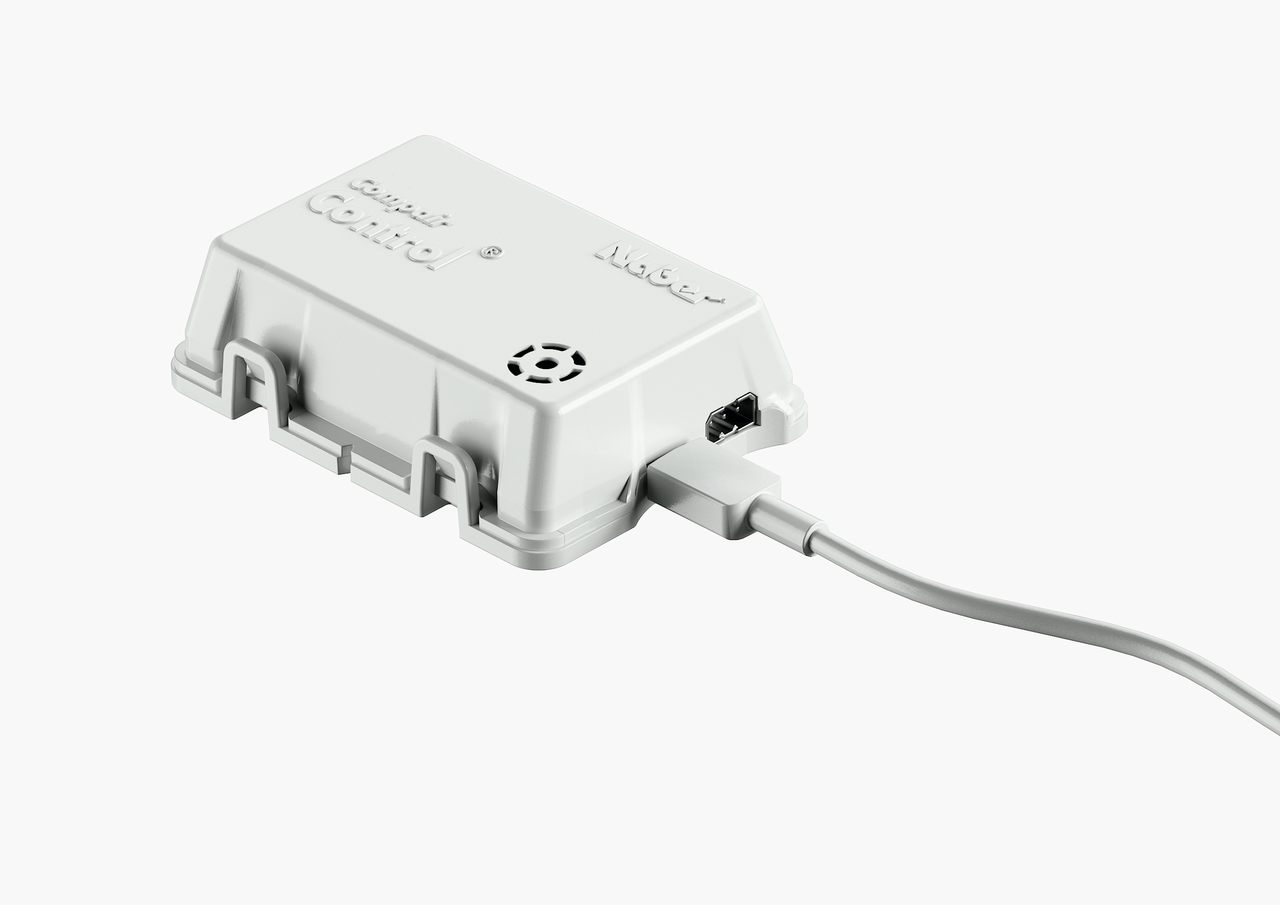

Control unit for monitoring the filter in GREENflow. The filter load is determined as a function of the cooking behaviour and the necessity of filter regeneration is indicated acoustically.
— primary: 230 V, 50Hz, secondary: 5 V
— 1500 mm mains connection cable

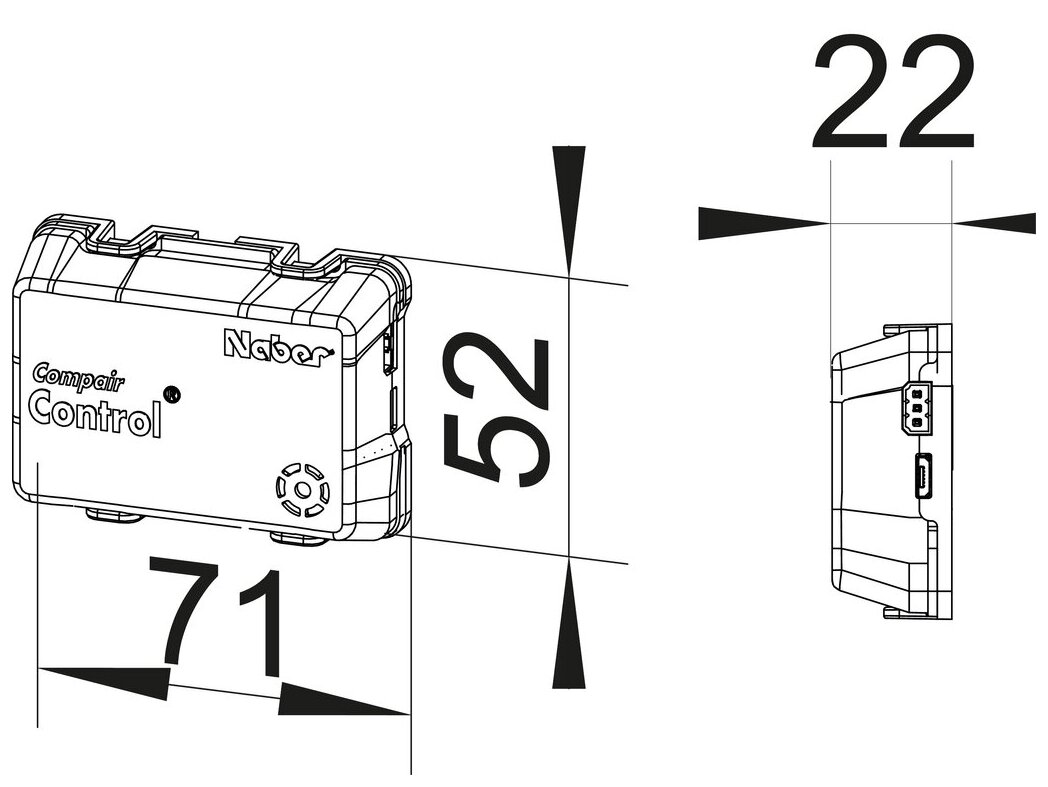

— dimensions of the mains adapter (L x W x H): 58 x 29 x 69 mm
— connection values: 230 V/50 Hz
— 1 watt
— use of a GREENflow filter box in combination with GREENflow OMEGA filter
— controlled replacement intervals
— can be used for up to four filter boxes
— automatic reset when the filter is removed

Article type:

Exhaust air accessorie

Brand:

PRIME flow

Certification:

CE

Colour:

white

Depth:

58 mm

Height:

69 mm

Length of the supply line (primary):

1.500 mm

Mains voltage:

230 V

Mounting/Fixing:

plaatsing van een GREENflow filterbox in combinatie met GREENflow OMEGA-filter

Note:

automatic reset when the filter is removed, can be used for up to four filter boxes, controlled replacement intervals

Shape:

angular

Width:

29 mm
