Product information:

E-Jal flow 150 wall conduct incl. THERMOBOX, white, stainless steel

Product number: 4043066

Wall sleeve
installation in the wall

Prices will only be shown once logged in.

Description

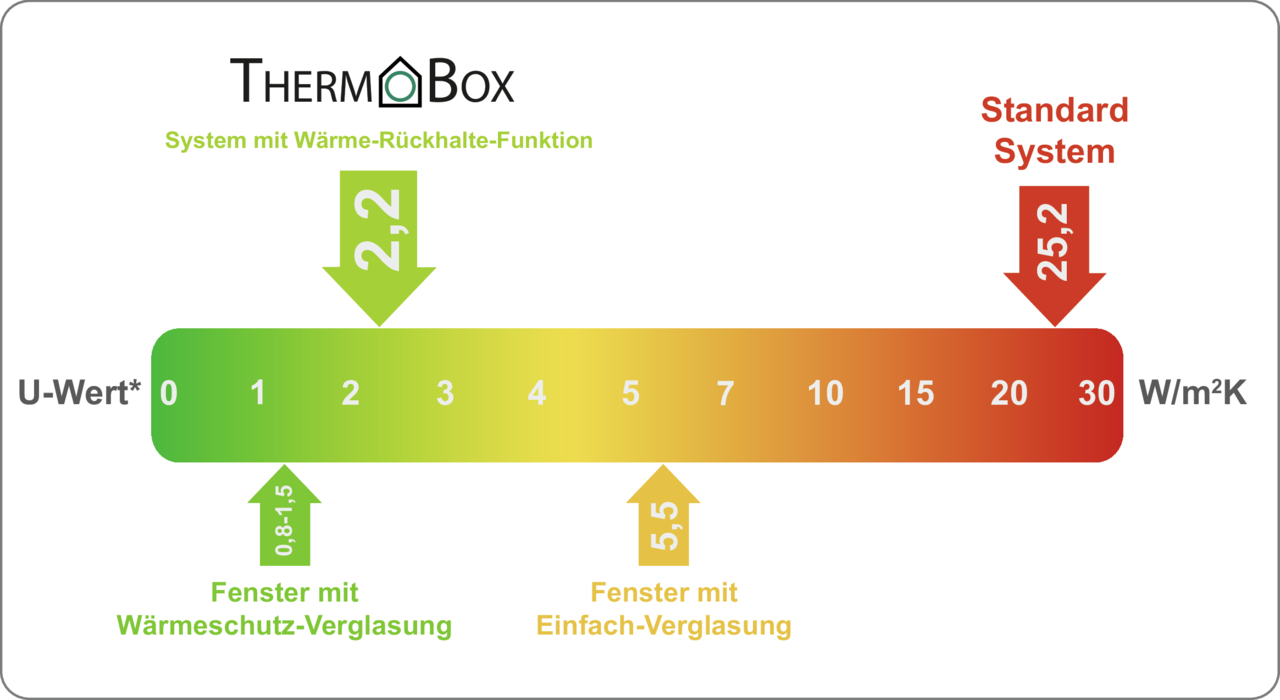

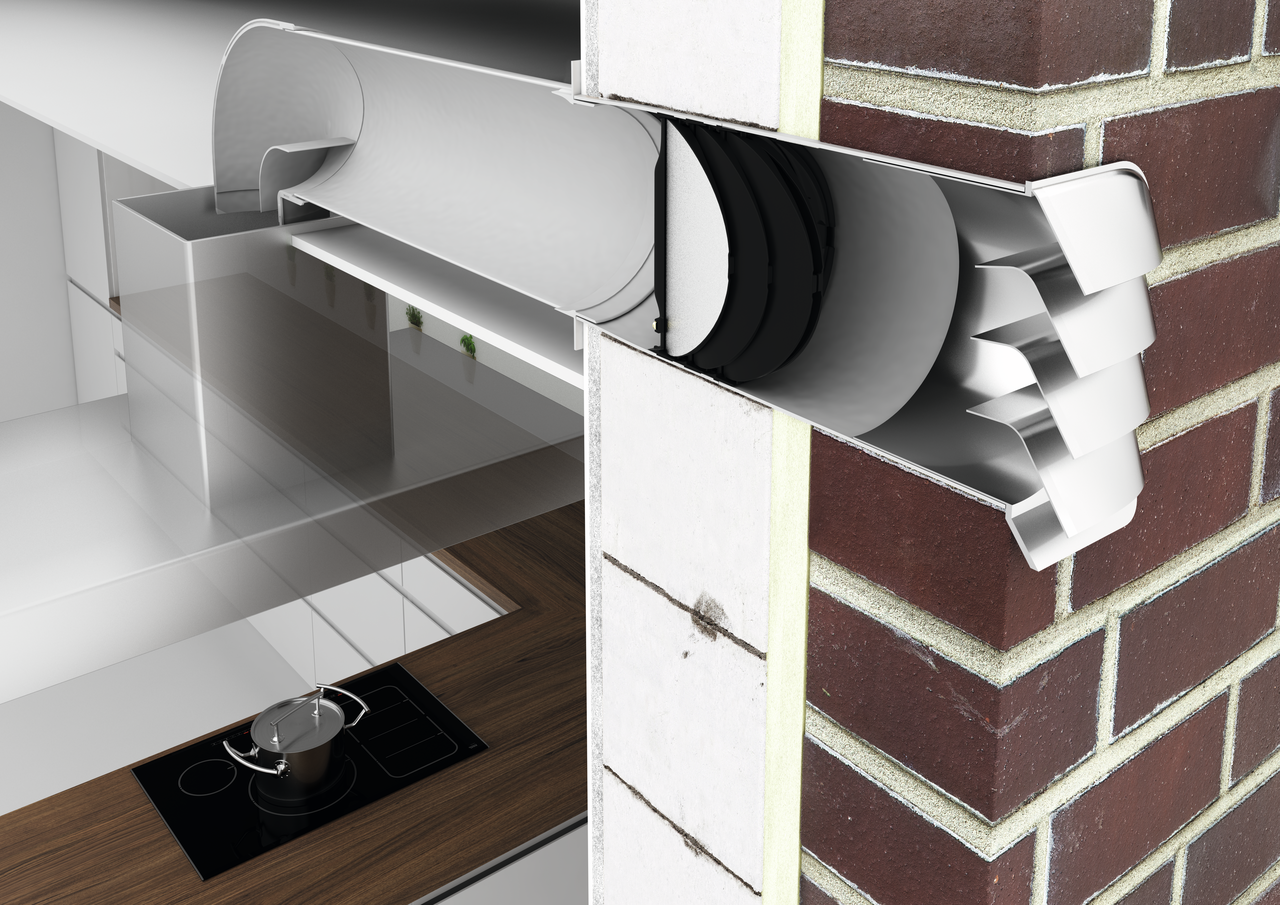

The COMPAIR^® flow E-Jal flow 150 wall box is an intelligent kitchen ventilation system for the cooker bonnet. It ensures targeted exhaust air transport and improves the room climate in the kitchen. This is made possible by the integration of a THERMOBOX and via the E-Jal stainless steel external louvre. The telescopic wall duct uses the innovative COMPAIR^® flow air duct system, which creates an energy-efficient and low-noise air flow. In the duct, an insulated THERMOBOX prevents draughts from entering. At the same time, the Blower-Door certified heat retention system effectively protects against unwanted heat loss in the room. With its U-value of only 2.2 W, the ShutterTec retention system ensures excellent insulation values. The exhaust air wall box is designed for a flat pipe socket with the dimensions 227 x 94 mm and a socket depth of 80 mm. Overall, installation depths of 350 to 500 mm can be realised with the duct. Shortening to 290 mm is possible. The diameter of the wall opening is 155 mm.

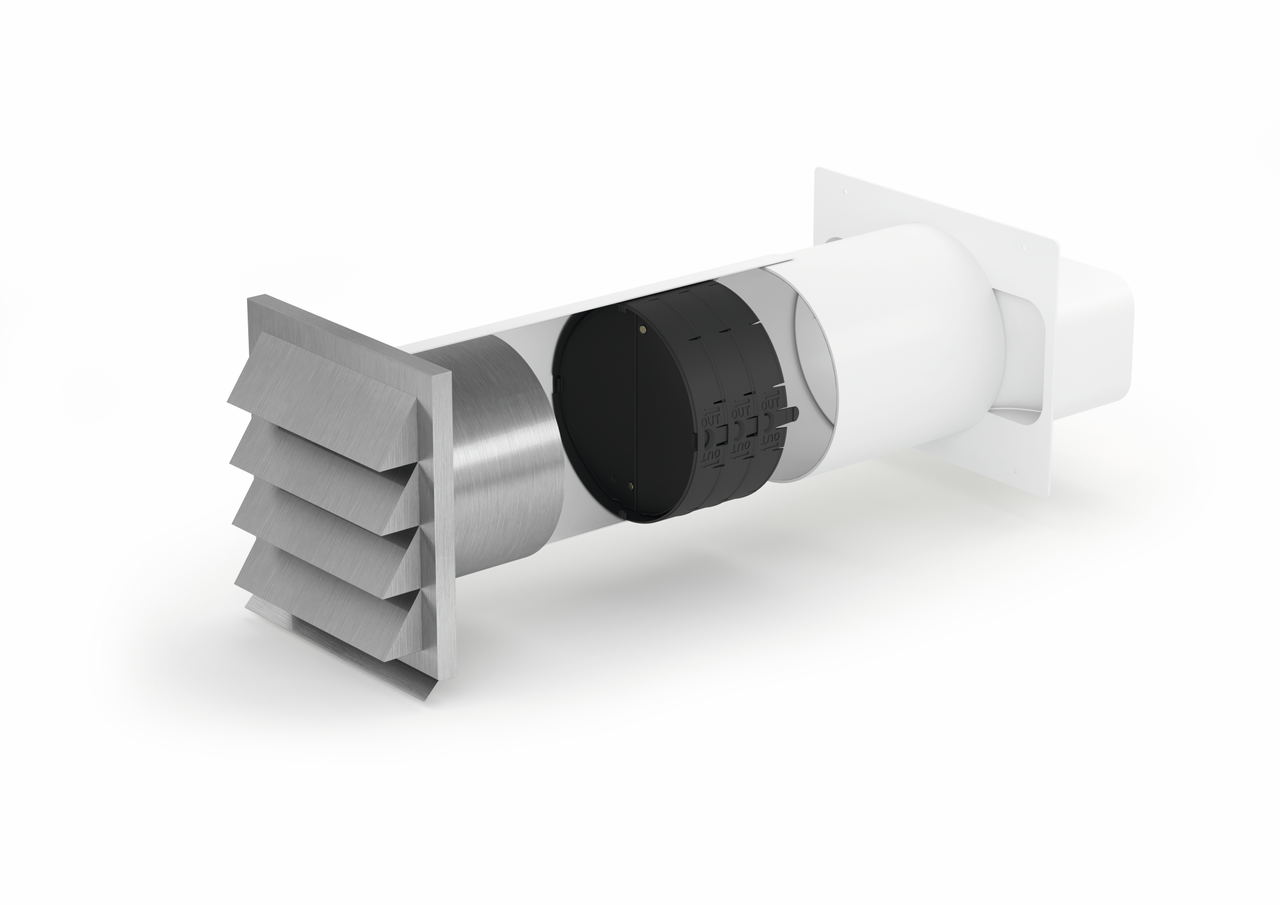

Wall conduct with telescopic pipe, incl. built-in heat retention system THERMOBOX and stainless steel external blind E-Jal.
— pipe connection 227 x 94 mm
— connection depth 80 mm
— installation depth 350–500 mm, can be shortened to 290 mm
— wall penetration Ø ca. 155 mm
— Blower-Door certified (required opening pressure >65 Pa)

Article type:

Wall sleeve

Certification:

stainless

Colour:

stainless steel/white

Connection diameter:

150 mm

Diameter wall opening:

155 mm

Installation depth:

350–500 mm

Mounting/Fixing:

installation in the wall

Opening pressure:

> 65 Pa

Outer diameter:

150 mm

Output drive:

angular

Properties:

can be shortened

Shape:

angular

Shortenability:

can be shortened to 290 mm

Support depth:

80 mm

System dimension:

150

Material:

stainless steel
