Product information:

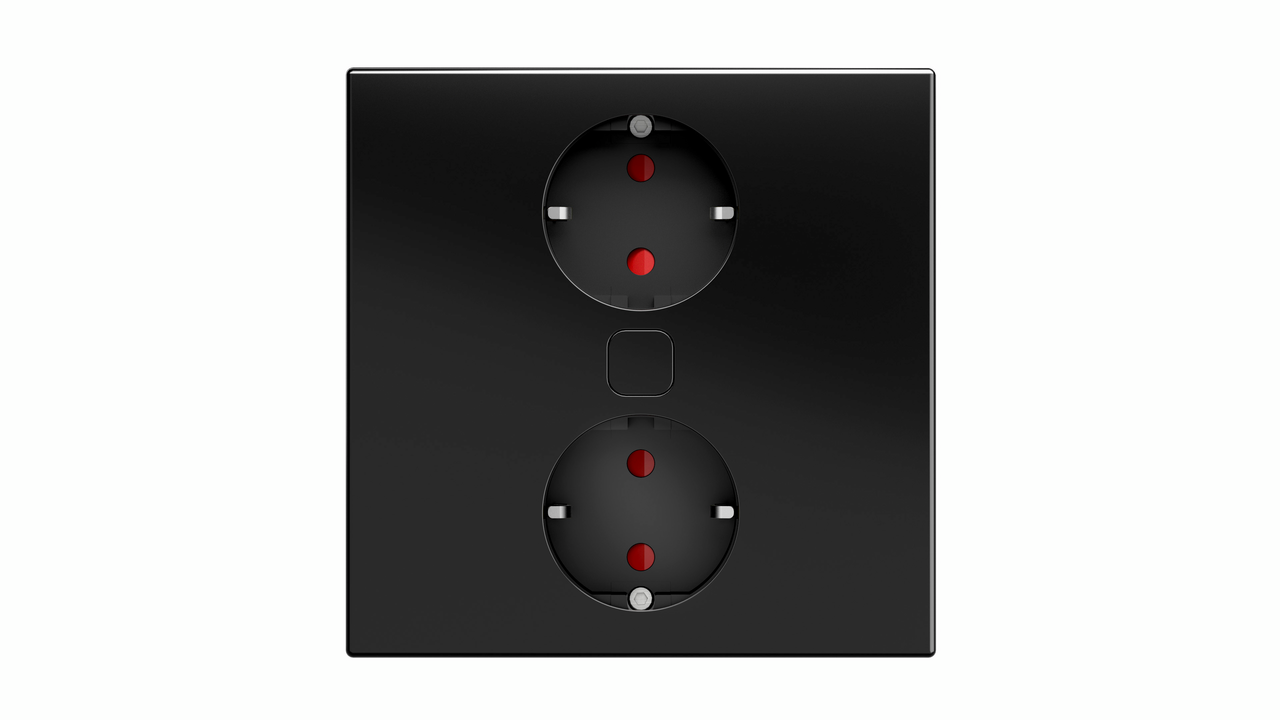

Duplex E double socket, square, with earthed plug sockets, black matt

Product number: 7054005

Built-in socket element
2 x earthed plug socket
square

Colour

Stainless steel

black matt

Shape

square

round

Prices will only be shown once logged in.

Description

Duplex E double socket, square, with earthed plug sockets, black matt

The CON-AKTIV^® Duplex E built-in socket outlet is a decorative highlight for the power supply within the kitchen unit. Visually, it stands out expressively thanks to the stainless steel used in its manufacture and sets a striking accent in the area of the worktop. Technically, the socket element convinces with the electrical opening and closing of the lids at the touch of a button. In addition, there is a practical and at the same time innovative plug insertion aid that makes it easier to connect various kitchen aids such as a mixer, a coffee machine and other consumers to the double socket. The necessary extra safety is provided by 3-pole protective contacts and increased protection against accidental contact. Another useful feature is the integrated water drain. Thanks to the low installation depth and space-saving cable routing to the side or downwards, installation above drawers is possible without any problems. In addition, the 2-way socket outlet is suitable for retrofitting. Alternatively, a version with matt black surfaces is available.

Socket element. Double. Electric opening at the push of a button.
— 3680 watt/16 A, 250 VAC, IP20
— H05VV-F 3G 1.5 mm2
— 3-pole with earthing contact
— 2000 mm mains connection line with earthing contact plug
— drill Ø 105 mm
— installation depth approx. 48 mm
— increased contact protection
— space-saving cable routing (downwards or side cable outlet)
— simple and quick installation
— retrofitting possible
— integrated water drain

Article type:

Socket element

Cable outlet:

cable outlet on the side or bottom

Certification:

CE, TÜV

Colour:

black matt

Colour bezel:

black matt

Colour socket:

black

Conductor cross-section:

1,5 mm²

Cover/blind type:

Electric

Drilling diameter:

105 mm

Further:

3-pole with earthing contact

Installation depth:

48 mm

Integrated water drain:

Yes

Length of the supply line (primary):

2.000 mm

Mains plug loosely enclosed:

Yes

Mains voltage:

250 VAC

Max. connected load:

3680 watt

Mounting/Fixing:

installation, in the worktop

Note:

can be retrofitted

Number of sockets (total):

Opening mechanism:

Push & Pull

Protection class:

IP20

Rated current:

16 A

Shape:

square

Surface/coating:

matt

Switch type:

Touch switch

Touch protection ("child safety lock"):

with increased contact protection

Type of socket element:

Built-in socket element

Version sockets:

2 x earthed plug socket

Wiring:

3-wire with free ends, bared

Depth:

45,5 mm

Height:

118 mm

Width:

118 mm

Downloads

Assembly

Data sheet

Measures

Accessories

9 variations available

Hole saw, Ø 105 mm, for Twist and Duplex

Product number: 7053024

Drilling diameter: 105 mm
Max. cutting depth: 38 mm
incl. centre drill
