WESCO® Table frame ATG420, stainless steel-coloured brushed

Product number: 3032257

Table frame
Table frame
Carrying capacity: 120 kg

Colour

stainless steel-coloured brushed

black matt

Prices will only be shown once logged in.

Description

WESCO® Table frame ATG420, stainless steel-coloured brushed

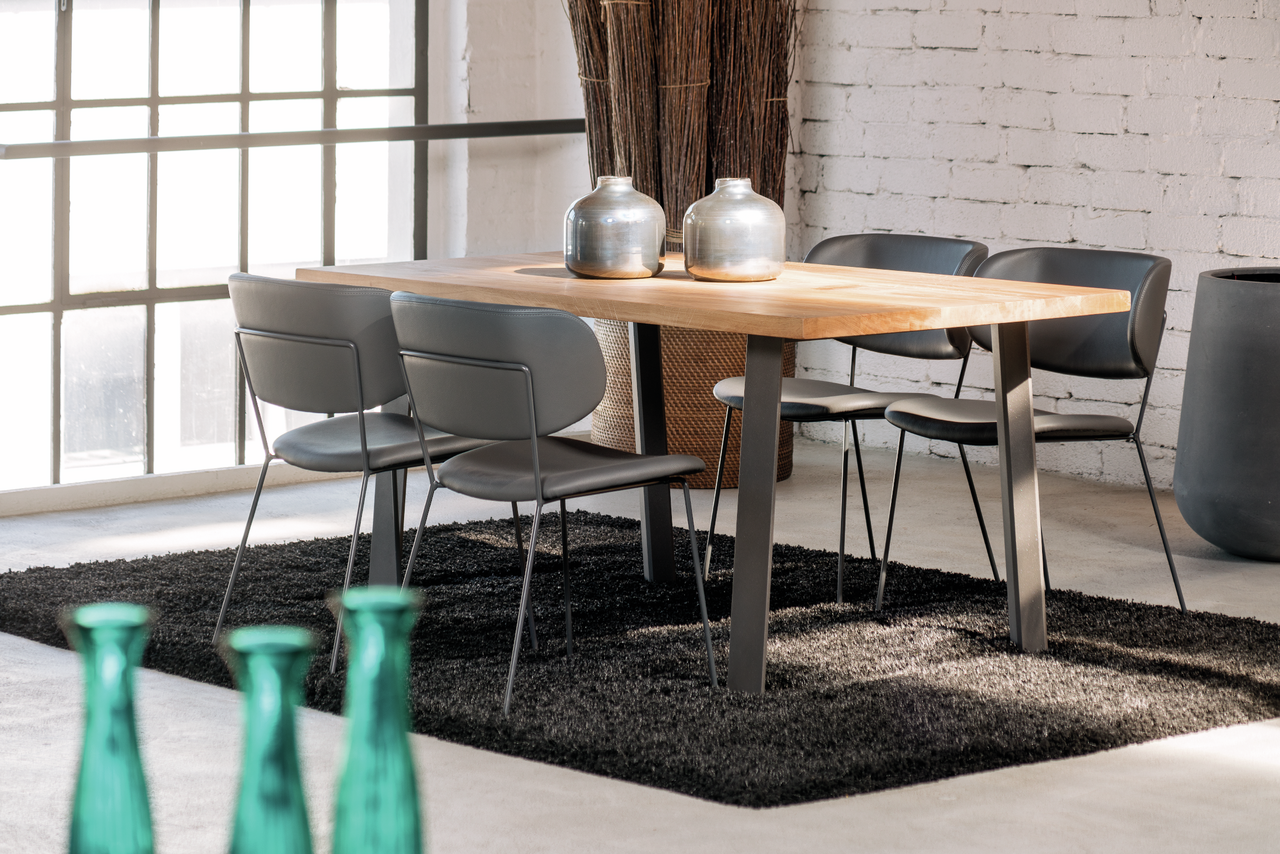

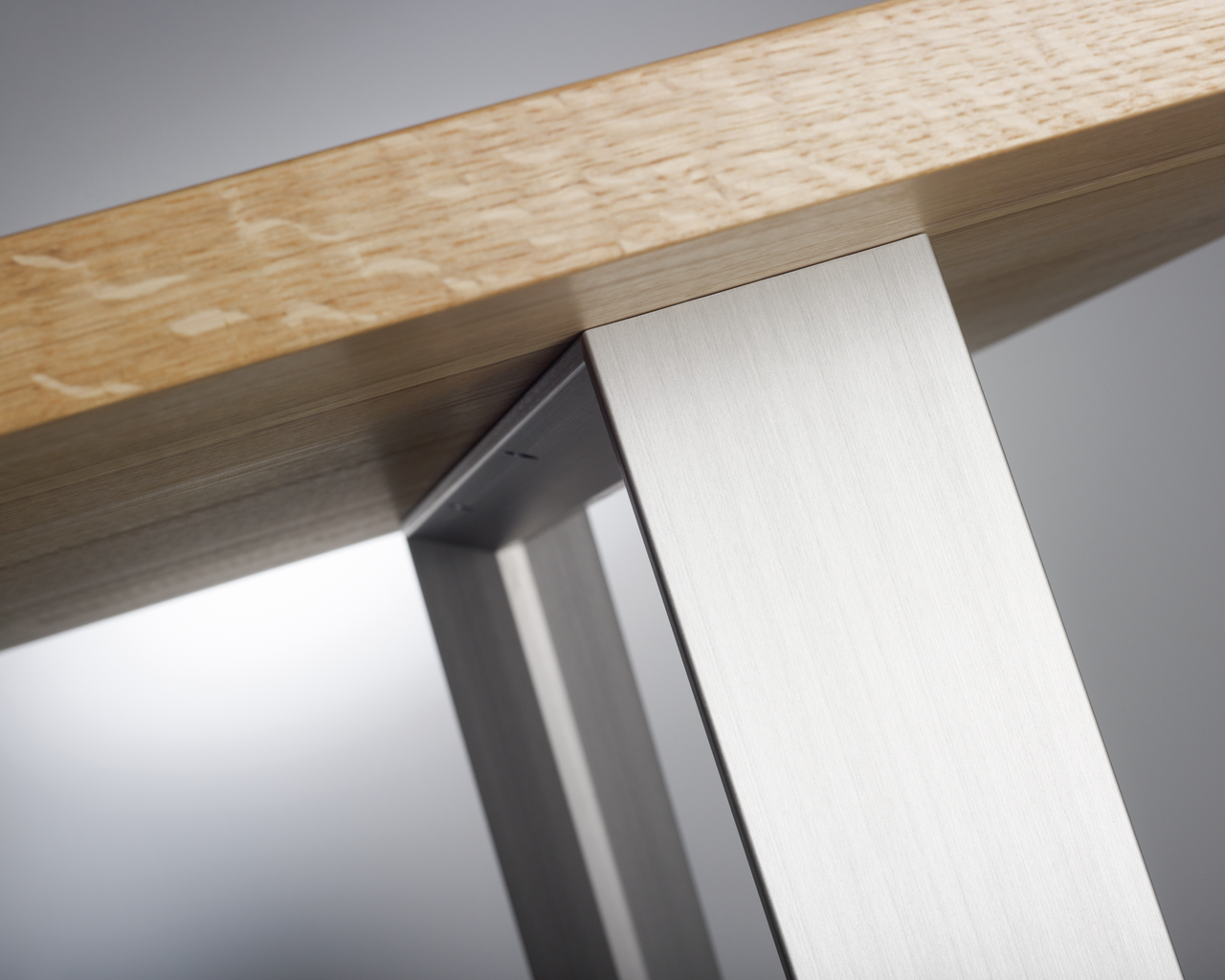

The ATG420 table skid, which is open at the bottom, perfectly accentuates a wooden top. The underframe impresses with its flared arrangement and timelessly elegant design. The straight lines and modern design harmonise with many living concepts. The table frame has angular profiles with a flat cross-section of 100 x 30 mm. This provides a wide support surface for any wooden table top, which can be screwed in place from below. Two of these runners are needed for a dining table, so that a load capacity of up to 120 kg is given. The profiles are made of aluminium. Different surface finishes are available for an individual look. The scope of delivery consists of one metal runner.

Frame in contemporary design.
— profile foot 100 x 30 mm
— frame dimensions 720 x100 x 800 mm (H x W x D)
— 1 PU = 1 skid

All items are manufactured to order in Germany based on customer requirements.

Max. load bearing capacity: 120 kg (per pair)
Max. dimensions of the table top: 2400 x 1200 mm

Use of glass, ceramic and granite plates not possible.

Dimensions for custom-made frames (3504999):
min. 250 x 400 mm (H x D)
max. 1100 x 1200 mm (H x D)

Article type:

Table frame

Brand:

WESCO®

Carrying capacity:

120 kg

Colour:

stainless steel-coloured brushed

Dimensions profile:

100 x 30 mm

Dimensions profile foot/floor plate:

100 x 30 mm

Dimensions upper mounting plate:

100 x 673 mm

Frame type:

Table frame

Height without APL:

720 mm

Max. Dimensions for table top:

2400 x 1200 mm

Note:

All items are manufactured to order in Germany based on customer requirements., Use of glass, ceramic and granite plates not possible., table top not included in scope of delivery

Preparation for:

APL plate

Shape:

slanted

Suitable for:

freestanding tables

Surface/coating:

brushed

Top width:

673 mm

Width below:

800 mm

With mounting plate:

Yes

Material:

aluminium

Depth:

800 mm

Height:

720 mm

Width:

100 mm

Downloads

Assembly

Data sheet
