Description

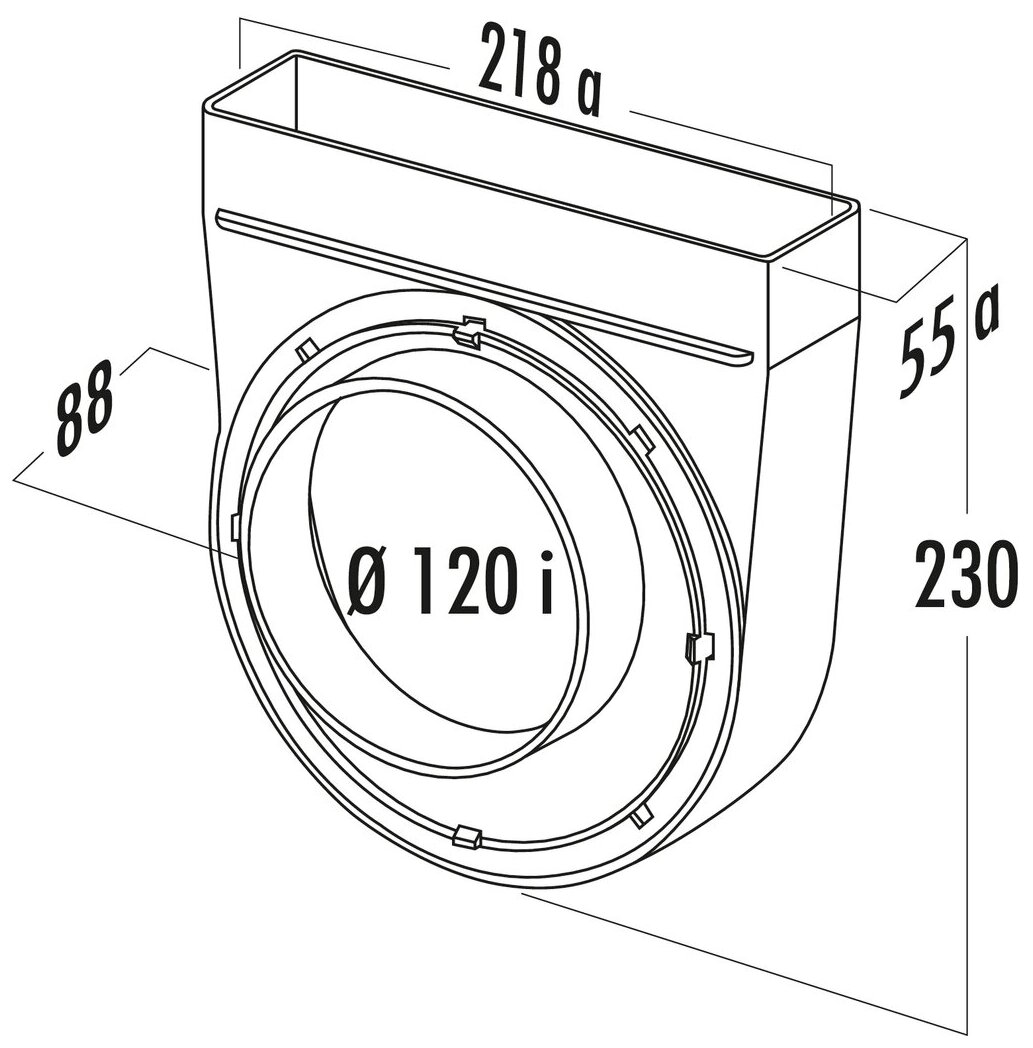

T-UR-EX 125 deflector 90°, eccentric, white
The COMPAIR® top T-UR-EX 125 90° deflector is used to integrate common 125 mm extractor bonnets into the ventilation system. The eccentric and adjustable connection piece enables installation even if the bonnet outlet is too close to the wall. The connection piece has a diameter of 120 mm with a depth of 14 mm. The ventilation moulding is securely connected to the planned system components of the series without tools by means of click assembly.



For 125-gauge hood connection with adjustable, eccentric connector piece for hood outlets too close to the wall.
— connector Ø 120 mm
— connector depth 14 mm



Article type:
Connecting element
Colour:
white
Connection diameter:
125 mm
Discontinued item:
No
Form:
round
Height:
230 mm
Mounting/Fixing:
Plug-in system for subsequent gluing
Output drive:
round
Properties:
Adjustable
Support depth:
14 mm
System dimension:
125
Width:
218 mm
