Description
N-RBH 100 pipe bend horizontal 90°, white

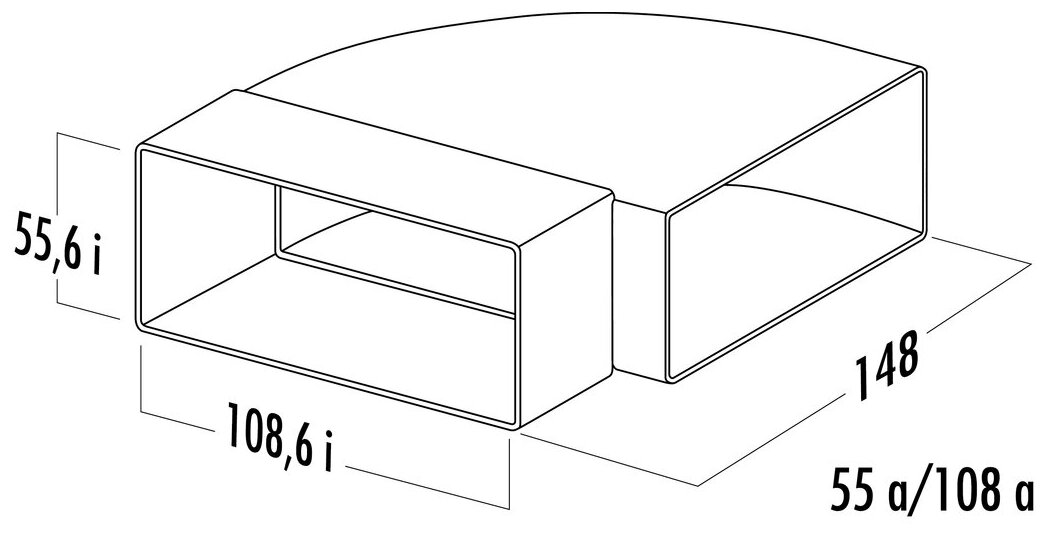

The horizontal COMPAIR® norm N-RBH 100 pipe bend allows two flat duct pipes to be easily joined together with a change of direction of 90°. In this way, the exhaust or supply air ducting in the kitchen can be individually designed. The white plastic ventilation moulding is equipped with a socket of size 108.6 x 55.6 mm moulded on one side. It can be combined as desired with other components from the COMPAIR® norm range.



With sleeve integrated on one side.



Article type:
Connecting element
Colour:
white
Connection diameter:
100 mm
Discontinued item:
No
Form:
angular
Height:
55,6 mm
Length:
148 mm
Mounting/Fixing:
Plug-in system for subsequent gluing
Output drive:
angular
System dimension:
100
Width:
108,6 mm
