Product information:
E-Klima-E 150 wall conduct, stainless steel
- Wall sleeve
- installation in the wall
Prices will only be shown once logged in.
The COMPAIR® flow E-Klima-E 150 wall box allows exhaust air from the kitchen to be efficiently channelled outside. It forms part of the patented COMPAIR® flow air duct system and, thanks to its guide vane technology, directs cooking fumes outside quietly and with minimal flow loss. The exhaust air wall box is suitable for a round pipe connection and, with a pipe diameter of 150 mm, requires a wall opening of approximately 155 mm. With a total length of 500 mm and a sliding element of 120 mm, the length of the feed-through can be adjusted to between 500 and 600 mm, depending on the wall thickness. If required, the pipe can be shortened to a maximum length of 175 mm. The practical backflow flap reliably prevents outside air from entering the kitchen through the pipe. The high-quality and robust external louvre, featuring a slatted design, ensures optimum airflow and protection against the elements. Made from stainless steel, it has a high-quality, stylish appearance and offers impressive stability.
Stainless steel pipe 500 mm long, 120 mm slider element and stainless-steel external blind, with backpressure shutter.

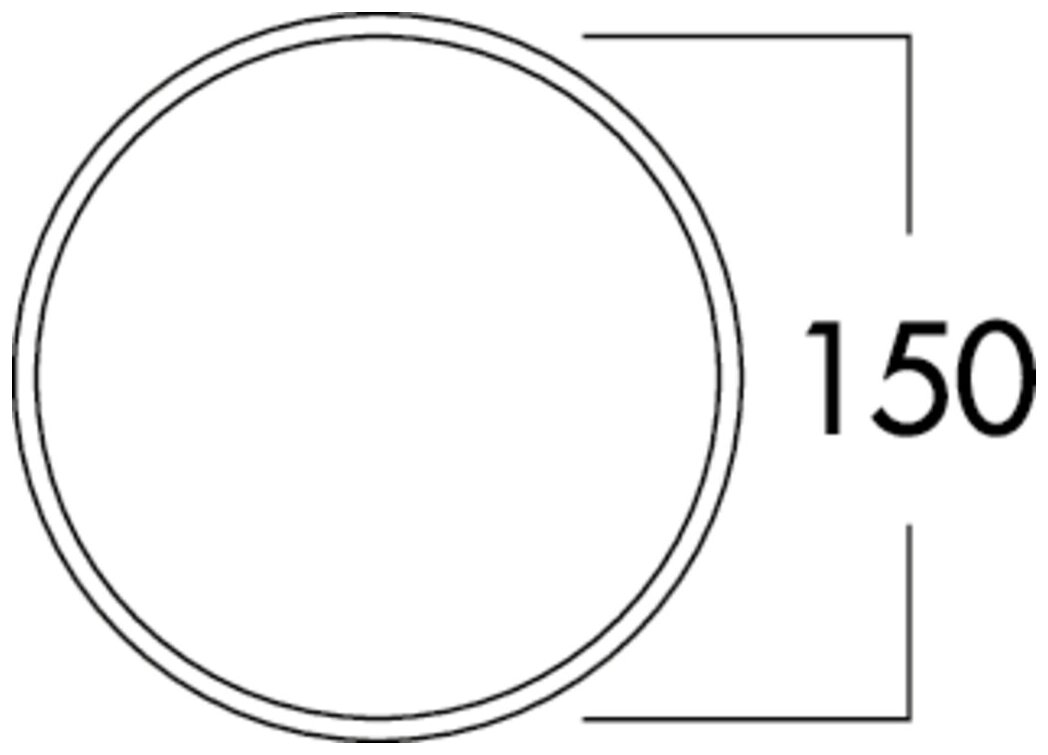

— hose/tube connector Ø 150 mm
— wall penetration Ø about 155 mm
— installation depth 500–600 mm, can be shortened to 175 mm
