Description

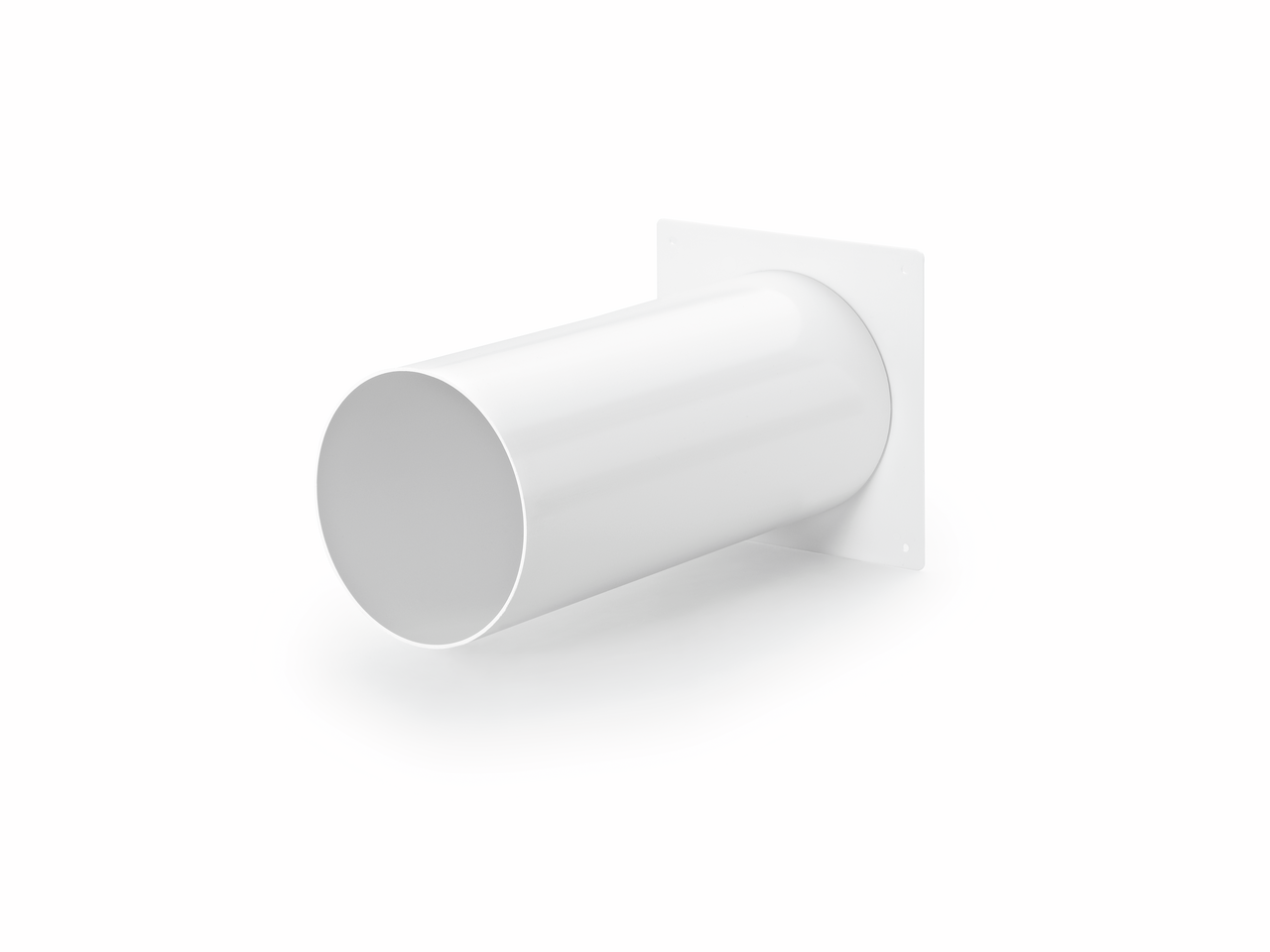

150 wall connector 1, white
The COMPAIR® flow 150 wall connection spigot 1 creates a connection between the pipe and the wall opening for the connection of ventilation system components on both sides. It has a backflow flap that prevents the ingress of air from outside. The ventilation system is suitable for connection to a round pipe with a diameter of 150 mm. A wall opening of approx. 155 mm is provided for this pipe diameter.

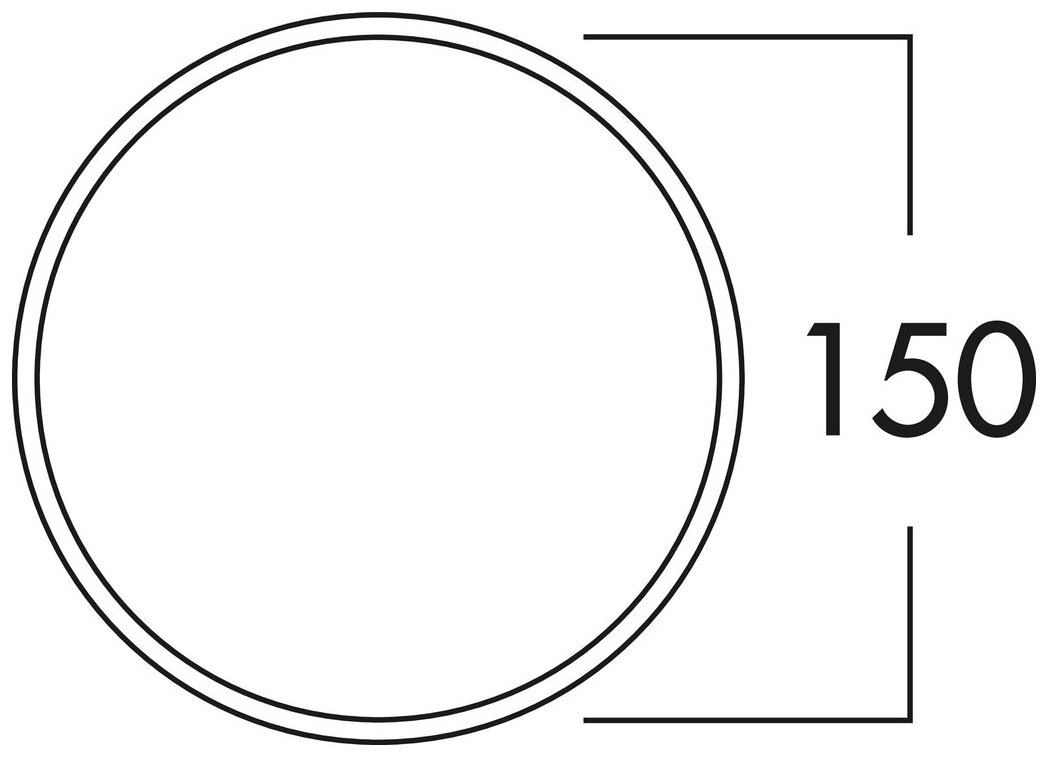

For connection to round pipe 150
— with backpressure shutter
— hose/pipe connector Ø 150 mm
— connector depth 24 mm
— round pipe with 350 mm length
— wall penetration Ø ca. 155 mm



Article type:
Connecting element
Colour:
white
Connection diameter:
150 mm
Discontinued item:
No
Form:
round
Length:
350 mm
Material:
Polystyrene
Mounting/Fixing:
Plug-in system for subsequent gluing
Output drive:
round
Support depth:
24 mm
System dimension:
150
