Product information:

PRIME flow COMPAIR® Tower, stainless steel

Product number: 4043069
  • Ventilation tower

Prices will only be shown once logged in.

Description
PRIME flow COMPAIR® Tower, stainless steel

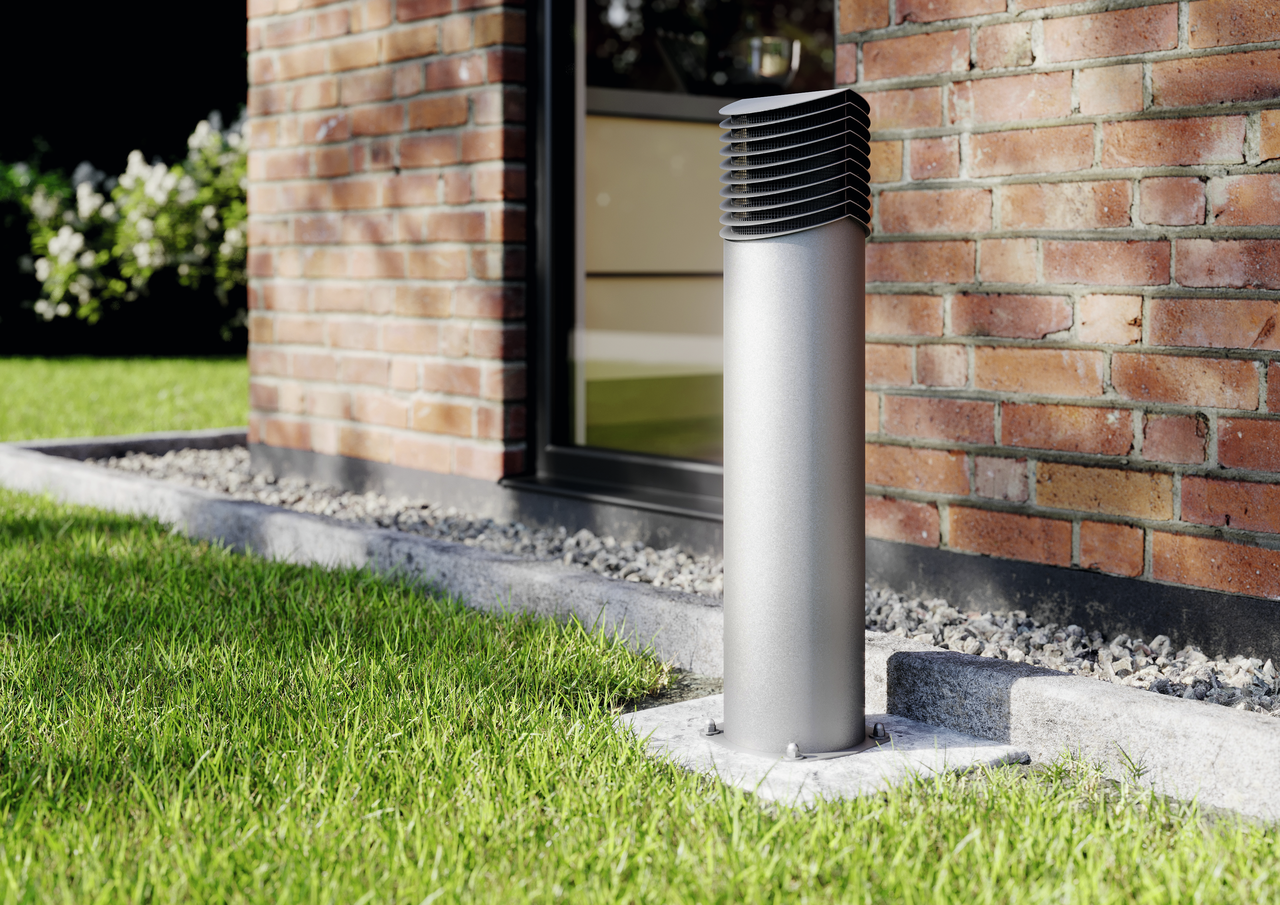

The COMPAIR® PRIME flow Tower air outlet is a flexible solution for actively directing the exhaust air to the outside in downdraft extractor systems. It can be used in combination with a free-standing cooking island and can supplement the COMPAIR® exhaust air duct in the floor structure as well as under the storey ceiling. The condensate drain replaces a classic wall box, which cannot be used depending on the structural conditions. It is part of the COMPAIR PRIME flow® system, which is characterised above all by innovative and energy-saving features. The tower has a discreet design, scores with a high-quality matt stainless steel surface and thus blends harmoniously into the exterior design of the building. It is equipped with a blower door-certified THERMOBOX, which prevents draughts from entering the room. Likewise, the heat retention system effectively protects against heat loss. The exhaust air system can be installed either on the house wall or free-standing in the garden. This requires a KG 160 wall duct with an external socket. The installation depth can be up to a maximum of 800 mm below the turf. The air outlet is compatible with the flat and round ducts from the range.



Stainless steel air outlet including THERMOBOX and condensate drain. Suitable for mounting on the house wall or freestanding in the garden. A wall duct must be provided by the customer (KG 160 with external sleeve).

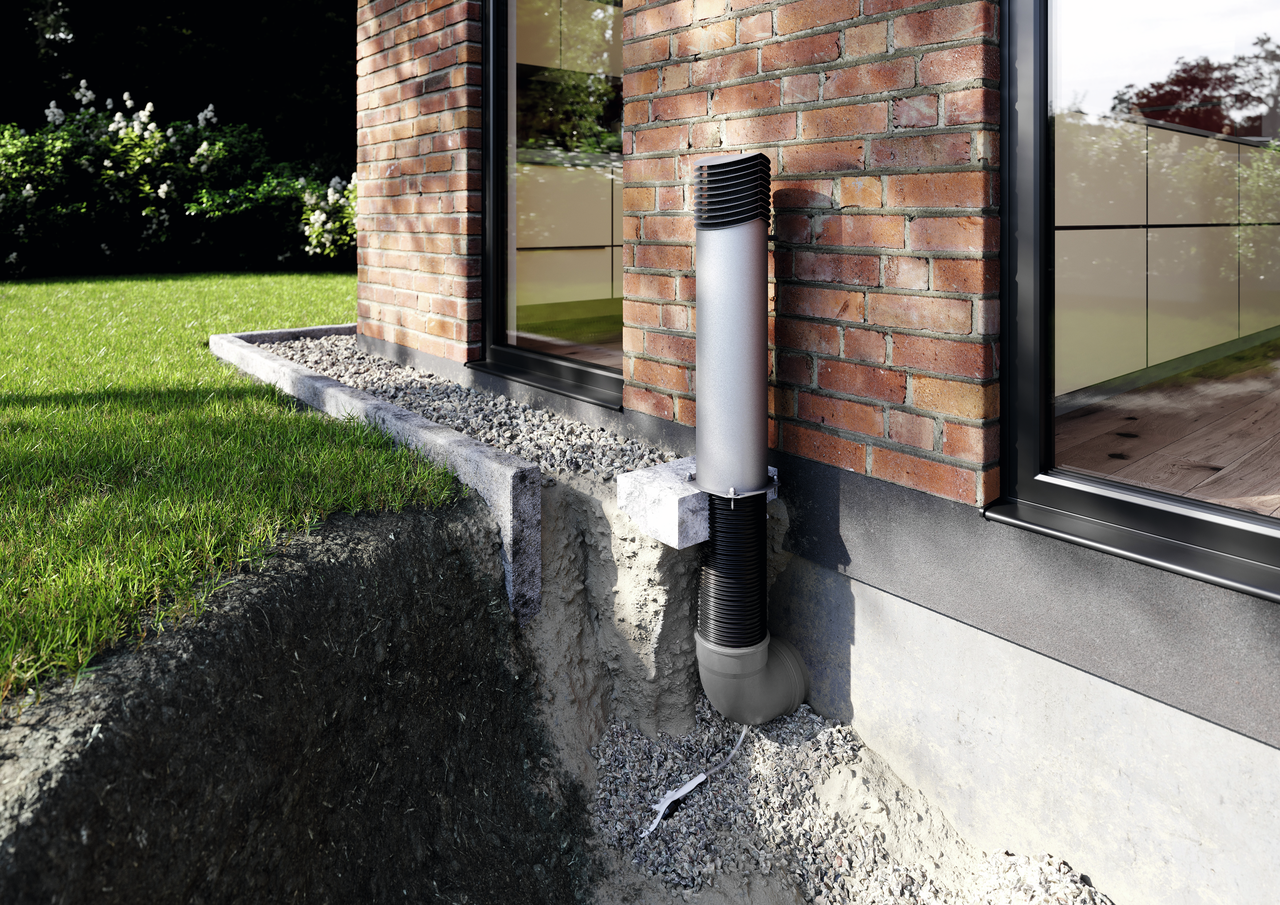

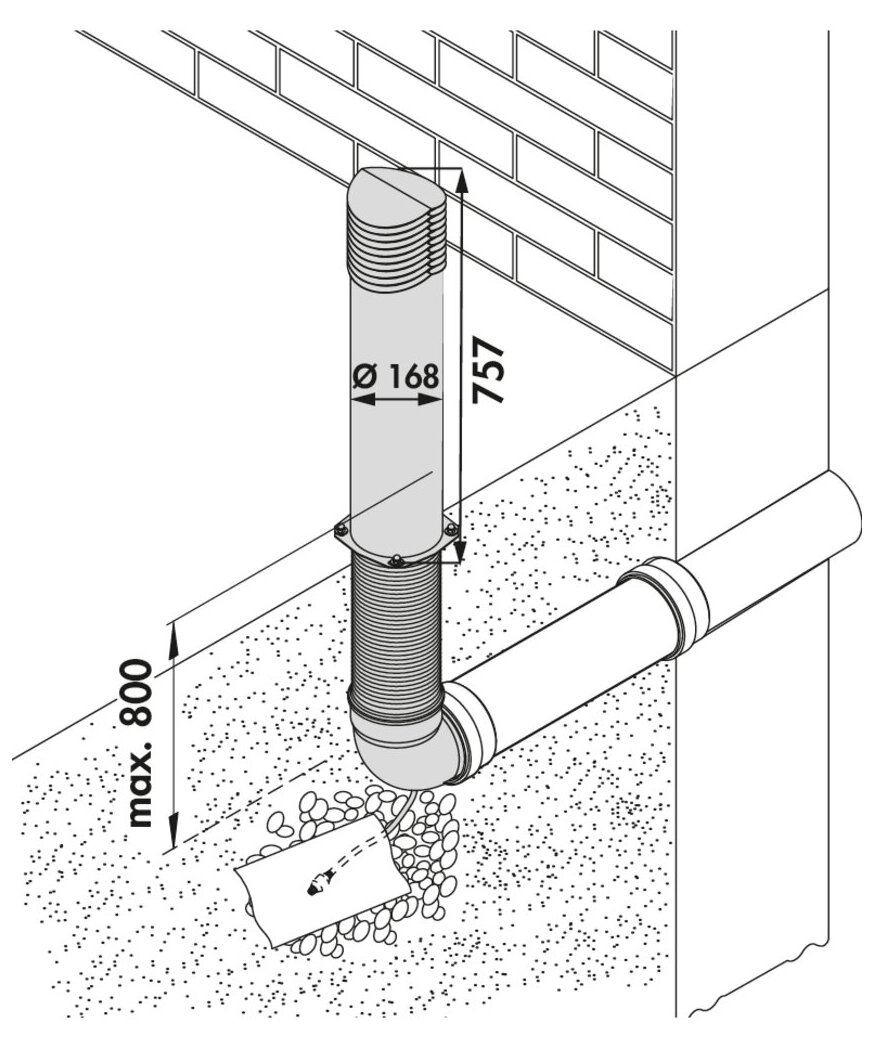

— depth up to 800 mm below floor level
— tower dimensions H 757 mm x Ø 168 mm
— blower door certified (required opening pressure > 65 Pa)



Article type:
Ventilation tower
Brand:
PRIME flow
Certification:
stainless
Colour:
Stainless steel
Height:
757 mm
Inner diameter:
168 mm
Installation depth:
800 mm
Material:
stainless steel
More parts:
THERMOBOX
Mounting/Fixing:
Suitable for mounting on the house wall or freestanding in the garden
Note:
A wall duct must be provided by the customer (KG 160 with external sleeve)
Opening pressure:
> 65 Pa
Output drive:
round
System dimension:
150
Width:
168 mm

Downloads

Assembly Assembly
Data sheet Data sheet
Measures Measures
