Description
Backflow trap angular, stainless steel
The COMPAIR® angular stainless steel backflow flap is specially designed for insertion into the F-VRO 150 ventilation pipe from the COMPAIR® flow range. Installation prevents cold outside air from entering the kitchen after the cooker bonnet has been switched off. To ensure that the non-return damper functions properly, it is only installed horizontally.



For insertion into ventilation pipe F-VRO (4043001).
Not suitable for installation in a vertical pipe.

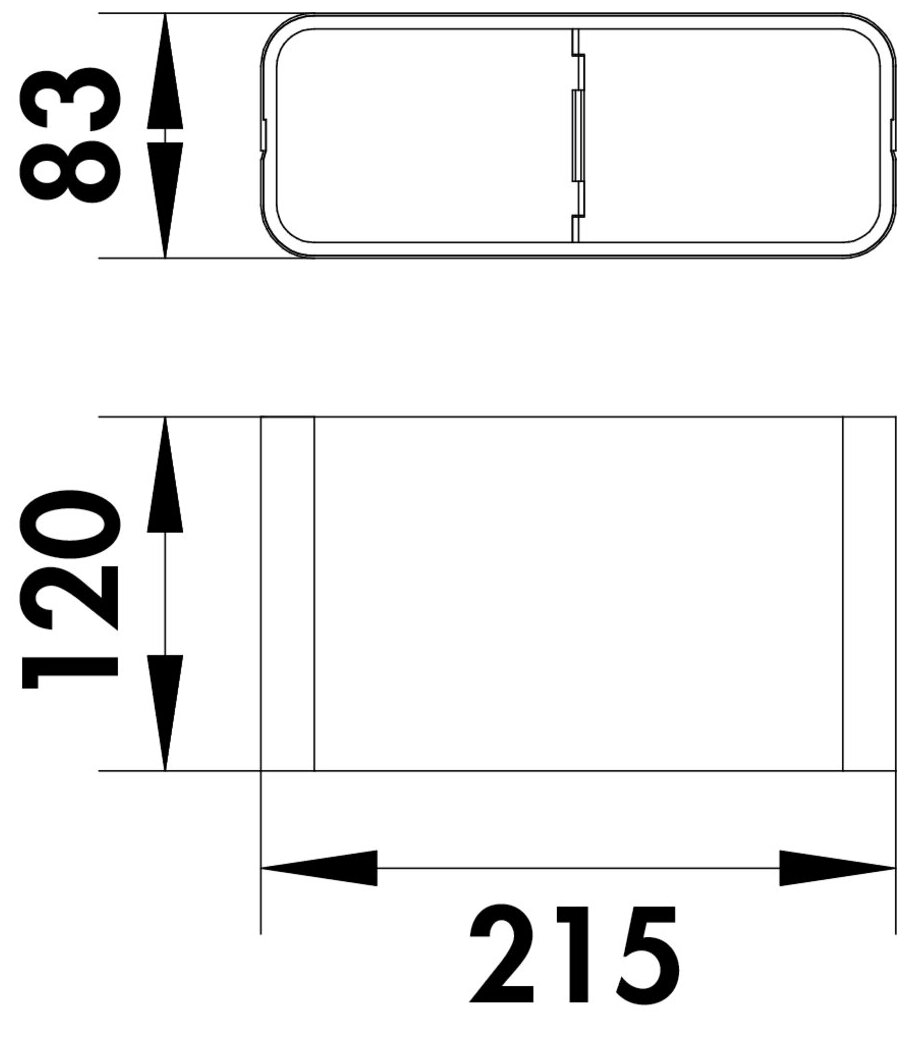

— depth 120 mm



Article type:
Connecting element
Certification:
stainless
Colour:
Stainless steel
Connection diameter:
150 mm
Depth:
120 mm
Discontinued item:
No
Form:
angular
Height:
85 mm
Material:
stainless steel
Note:
not suitable for installation in a vertical pipe
Output drive:
angular
Suitable for:
For insertion into ventilation pipe F-VRO (4043001)
Width:
215 mm
