Livia SE black, H 1080 mm

Product number: 3036447

Frame
Bar table frame
Adjustable

Prices will only be shown once logged in.

Description

Livia SE black, H 1080 mm

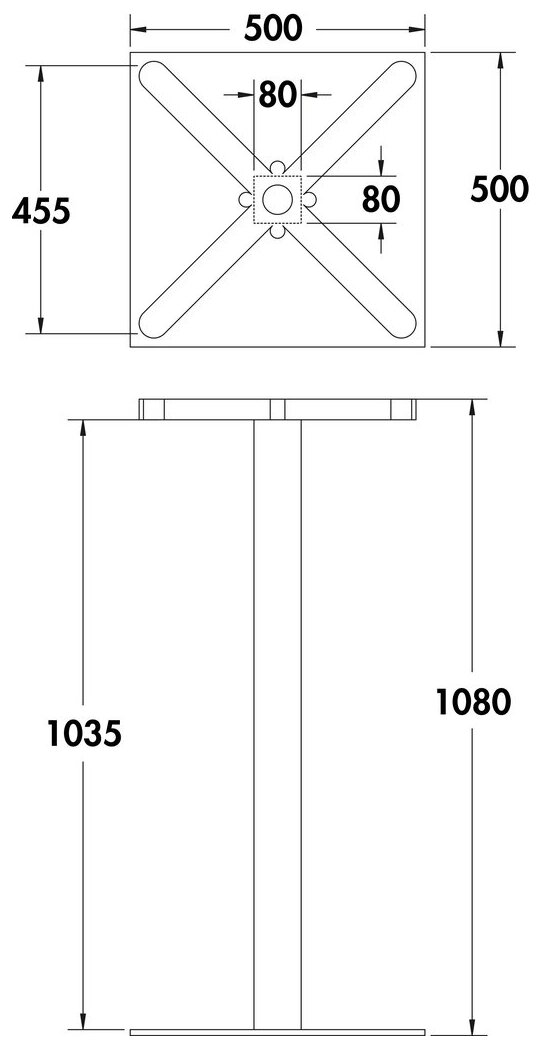

Standing table frame, square.
— pipe 80 x 80 mm
— base plate 500 x 500 mm
— incl. adjustable feet to compensate for uneven floors
— mounting cross 455 x 455 mm
— powder coated with rough structure
— for table top max. 800 x 800 mm (not included in the scope of delivery)
— supports up to approx. 50 kg
— not suitable for granite tops
— assembly required

Article type:

Frame

Carrying capacity:

ca. 50 kg

Colour:

black

Column/tube shape:

angular

Dimensions column/tube:

80 x 80 mm

Dimensions fastening cross:

455 x 455 mm

Dimensions profile foot/floor plate:

500 x 500 mm

Dimensions upper mounting plate:

455 x 455 mm

Frame type:

Bar table frame

Height compensation:

incl. adjustable feet

Max. Dimensions for table top:

900 x 900 mm

Mounting/Fixing:

Screw fastening, screwable

Note:

Use of granite plates not possible., assembly required

Number of columns/pipes:

Properties:

Adjustable, cannot be shortened

Shape:

angular

Suitable for:

freestanding tables

Surface/coating:

powder-coated with coarse structure

With mounting plate:

Yes

Material:

metal

Depth:

500 mm

Height:

1.080 mm

Width:

500 mm
