Product information:

E-Jal 150 wall conduct incl. THERMOBOX, white, stainless steel

Product number: 4043065

Wall sleeve

Prices will only be shown once logged in.

Description

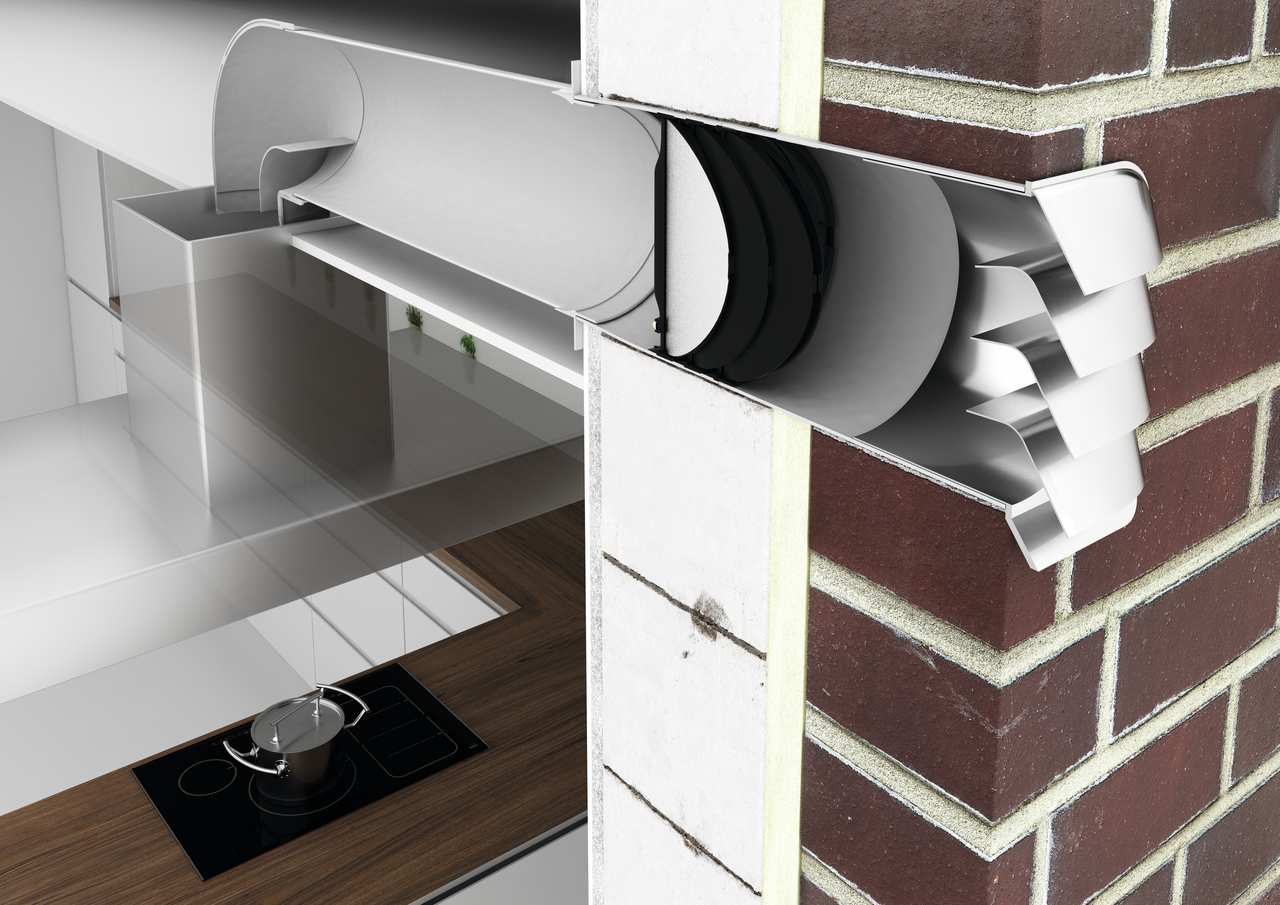

The COMPAIR^® flow E-Jal 150 wall box with integrated THERMOBOX significantly improves the room climate in conjunction with an extractor bonnet. It reliably guides the exhaust air out via the air duct. At the same time, the system prevents heat loss in the room and the penetration of cold outside air. Thus, the wall box is equipped with a telescopic tube containing the THERMOBOX, a built-in heat retention system. In combination with the E-Jal stainless steel external louvre, this results in high energy efficiency with up to 20 times less heat loss compared to standard backflow flaps. Neither vibrations nor rattling noises are generated. The THERMOBOX, which opens at 65 Pa, features Blower Door certification. The wall box including THERMOBOX thus makes an effective contribution to energy saving. The wall box is connected to a round pipe via a hose/pipe connection piece with a diameter of 150 mm. The installation depth of the wall box varies from 350 to 500 mm, whereby the pipe can be shortened to 255 mm - so the duct is suitable for different wall thicknesses. A wall opening with a diameter of approx. 155 mm is required for installation.

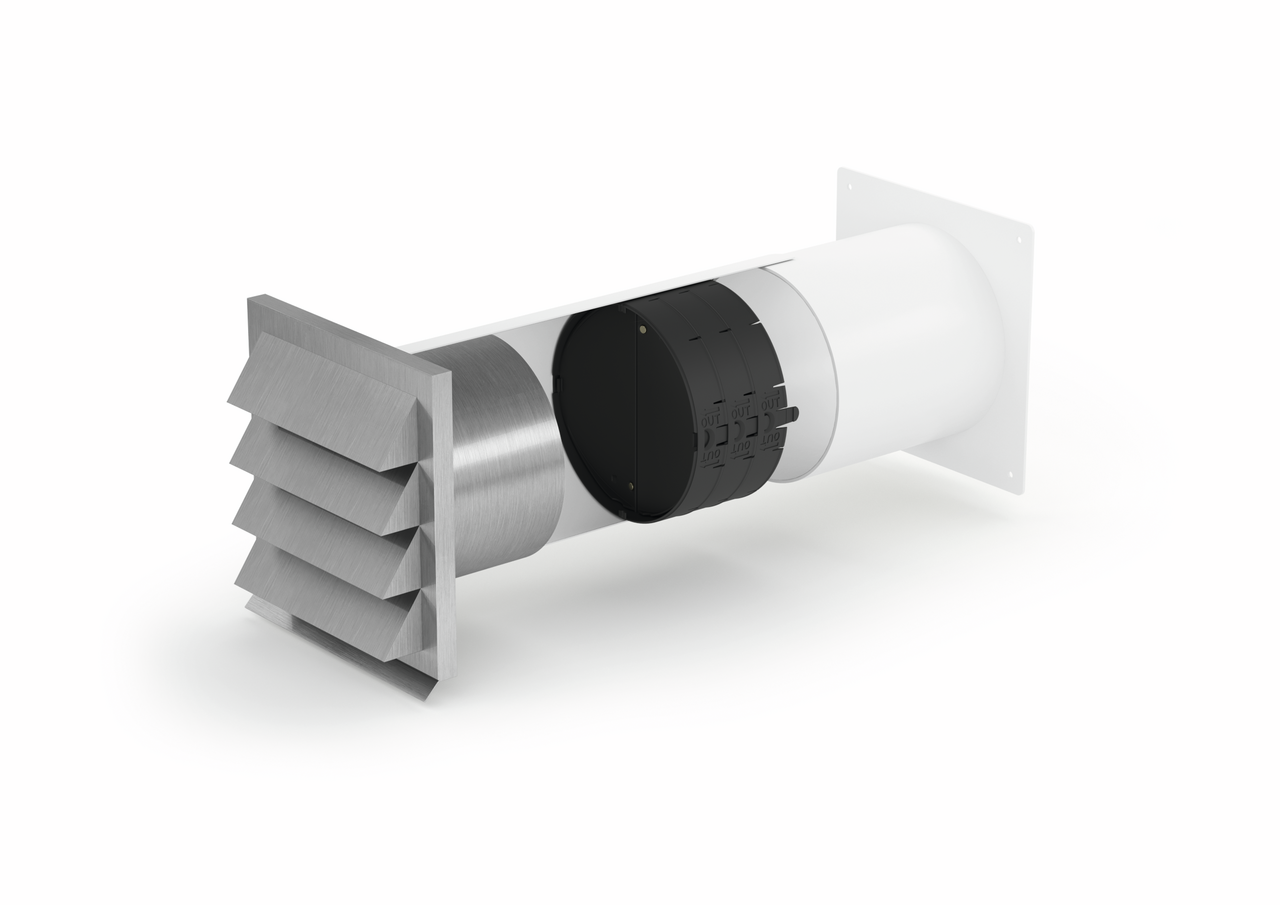

Wall conduct with telescopic pipe, incl. built-in heat retention system THERMOBOX and stainless steel external E-Jal.

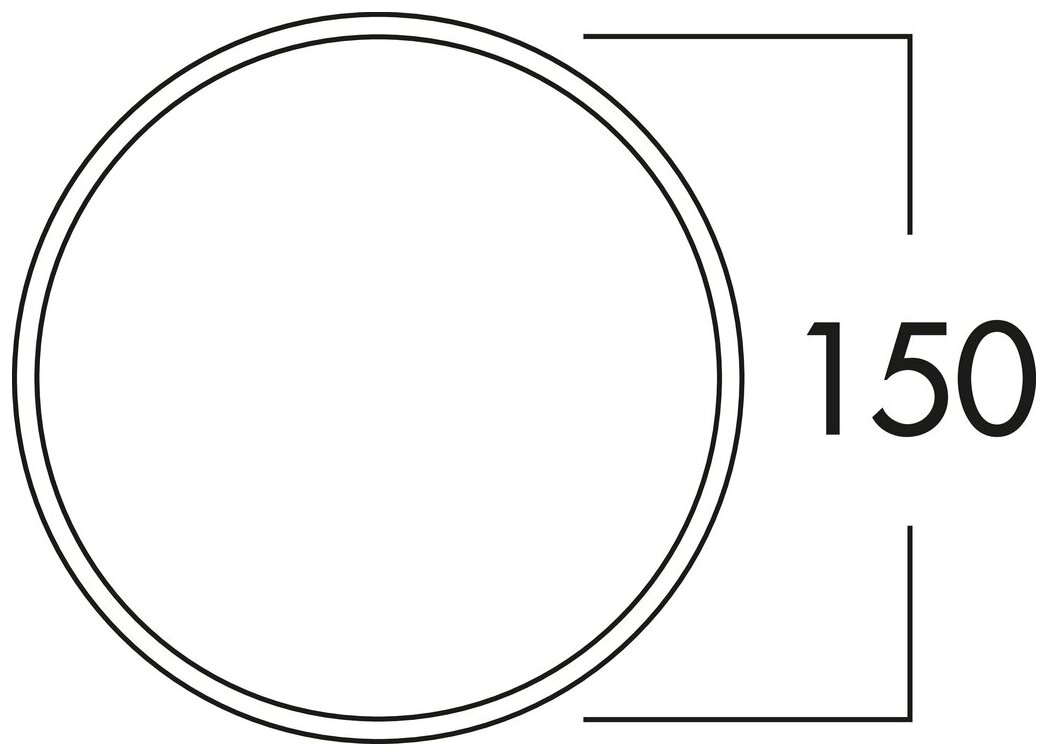

— hose/pipe connection Ø 150 mm
— connection depth 24 mm
— installation depth 350–500 mm, can be shortened to 255 mm
— wall penetration Ø ca. 155 mm
— Blower-Door certified (required opening pressure >65 Pa)

Article type:

Wall sleeve

Certification:

stainless

Colour:

stainless-steel coloured

Diameter wall opening:

155 mm

Installation depth:

350–500 mm

Outer diameter:

150 mm

Output drive:

round

Properties:

can be shortened

Shape:

angular

Support depth:

24 mm

System dimension:

150

Material:

stainless steel

Downloads

Assembly

Measures
