Product information:
More:

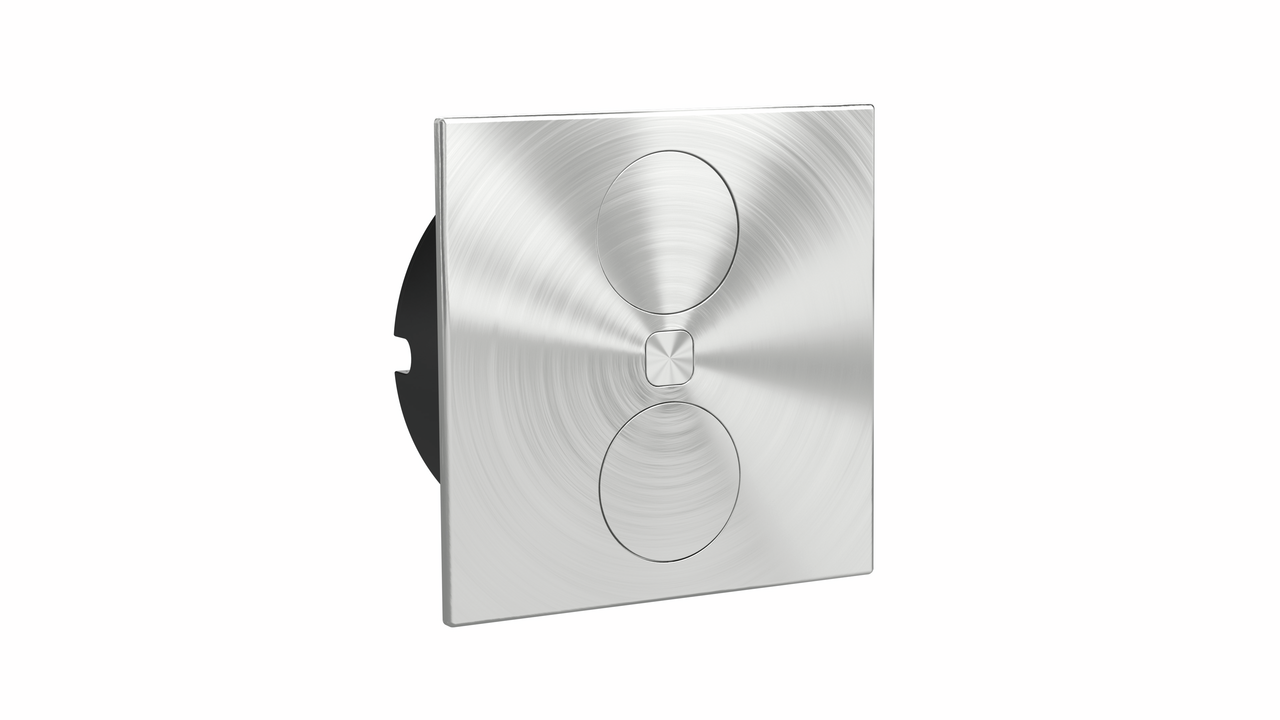

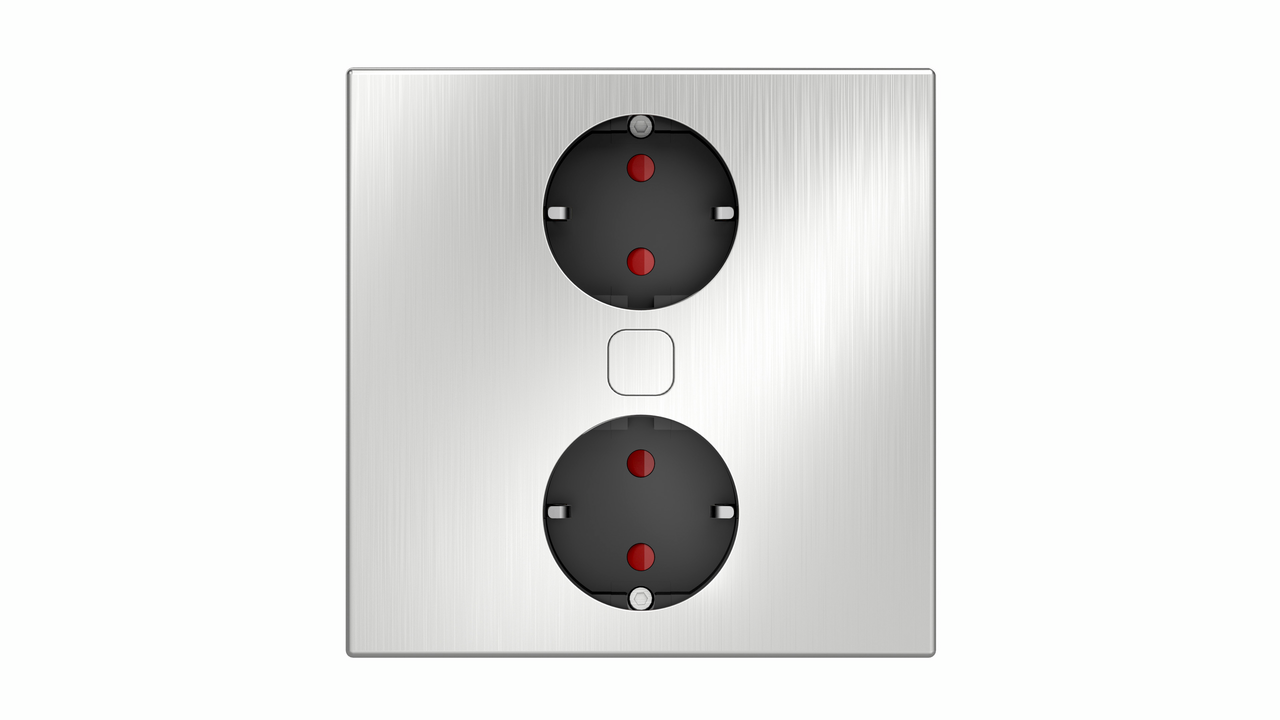

Duplex E double socket, square, with earthed plug sockets, stainless steel
- Built-in socket element
- 2 x earthed plug socket
- square
Prices will only be shown once logged in.
The CON-AKTIV® Duplex E built-in socket outlet is a decorative highlight for power supply within the kitchen. Its high-quality stainless steel finish creates an expressive visual accent and adds a distinctive touch to the worktop area. The socket unit also impresses with its technical features, including electrically operated opening and closing of the covers at the touch of a button. An innovative plug insertion aid makes connecting various kitchen appliances, such as blenders, coffee machines and other electrical devices, to the double socket outlet particularly convenient. Enhanced safety is ensured by 3-pin protective contacts and increased touch protection. Another practical feature is the integrated water drainage system. Thanks to its low installation depth and space-saving cable routing either to the side or downwards, installation above drawers is easily possible. The 2-gang socket outlet is also suitable for retrofitting. Alternatively, a version with matt black surfaces is available.
Socket element. Double. Electric opening at the push of a button.
— 3680 watt/16 A, 250 VAC, IP20
— H05VV-F 3G 1.5 mm2
— 3-pole with earthing contact
— 2000 mm mains connection line with earthing contact plug

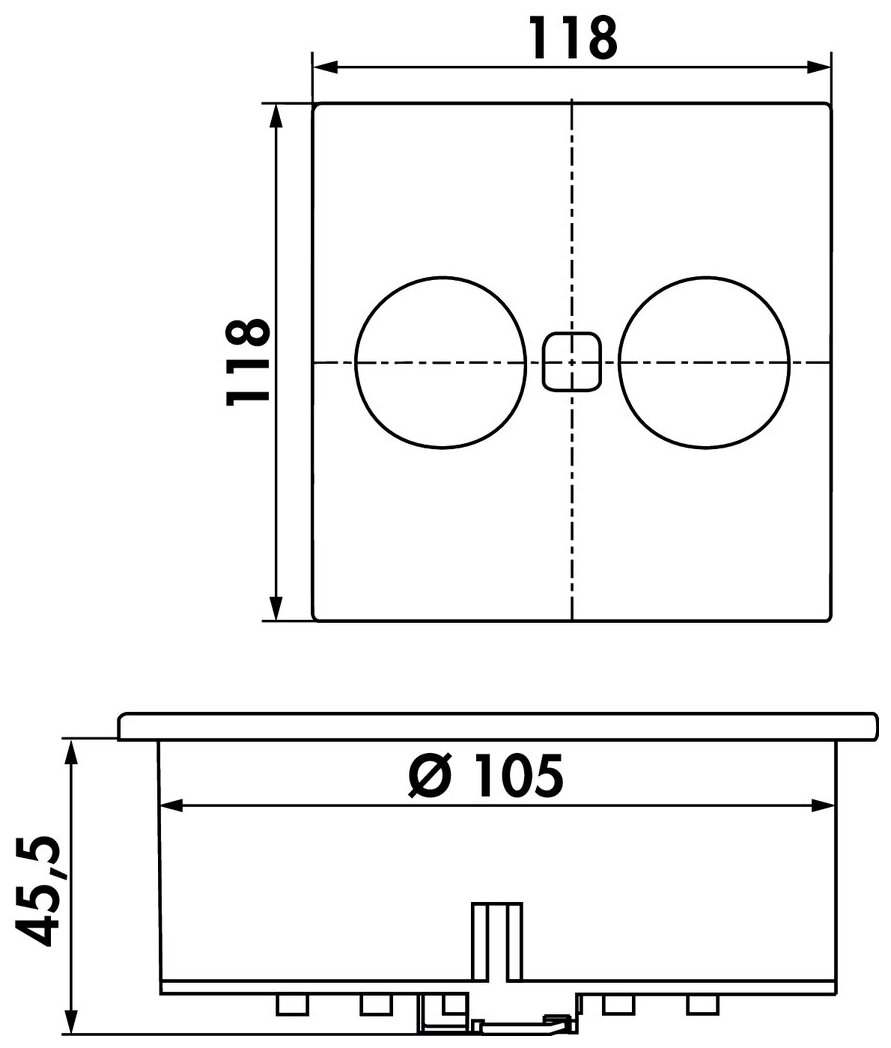

— drill Ø 105 mm
— installation depth approx. 48 mm
— increased contact protection
— space-saving cable routing (downwards or side cable outlet)
— simple and quick installation
— retrofitting possible
— integrated water drain
Downloads
Assembly
Accessories
- Drilling diameter: 105 mm
- Max. cutting depth: 38 mm
- incl. centre drill
