Product information:

E-Jal Col® flow 125 wall conduct incl. THERMOBOX, white, stainless steel

Product number: 4033044

Wall sleeve
installation in the wall

Prices will only be shown once logged in.

Description

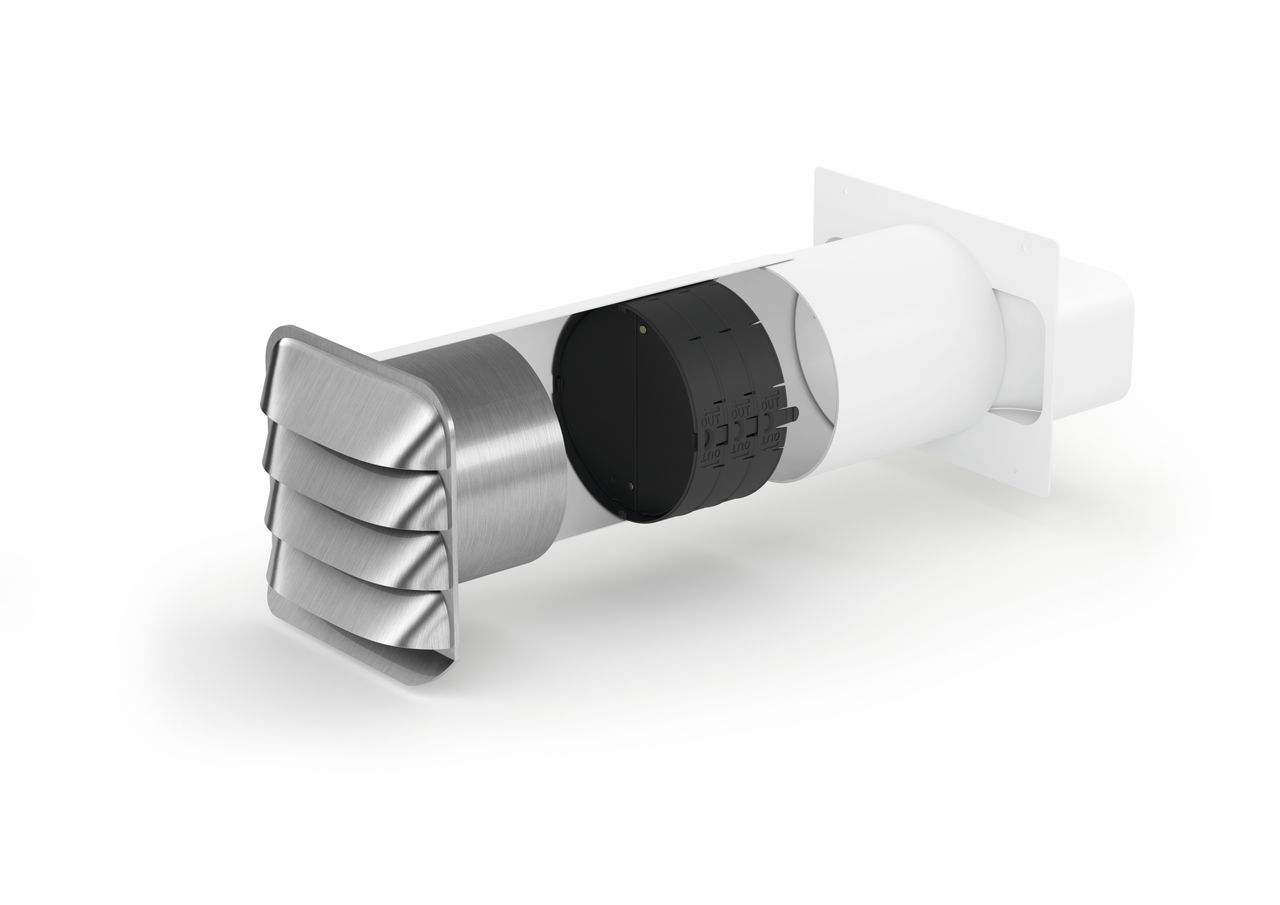

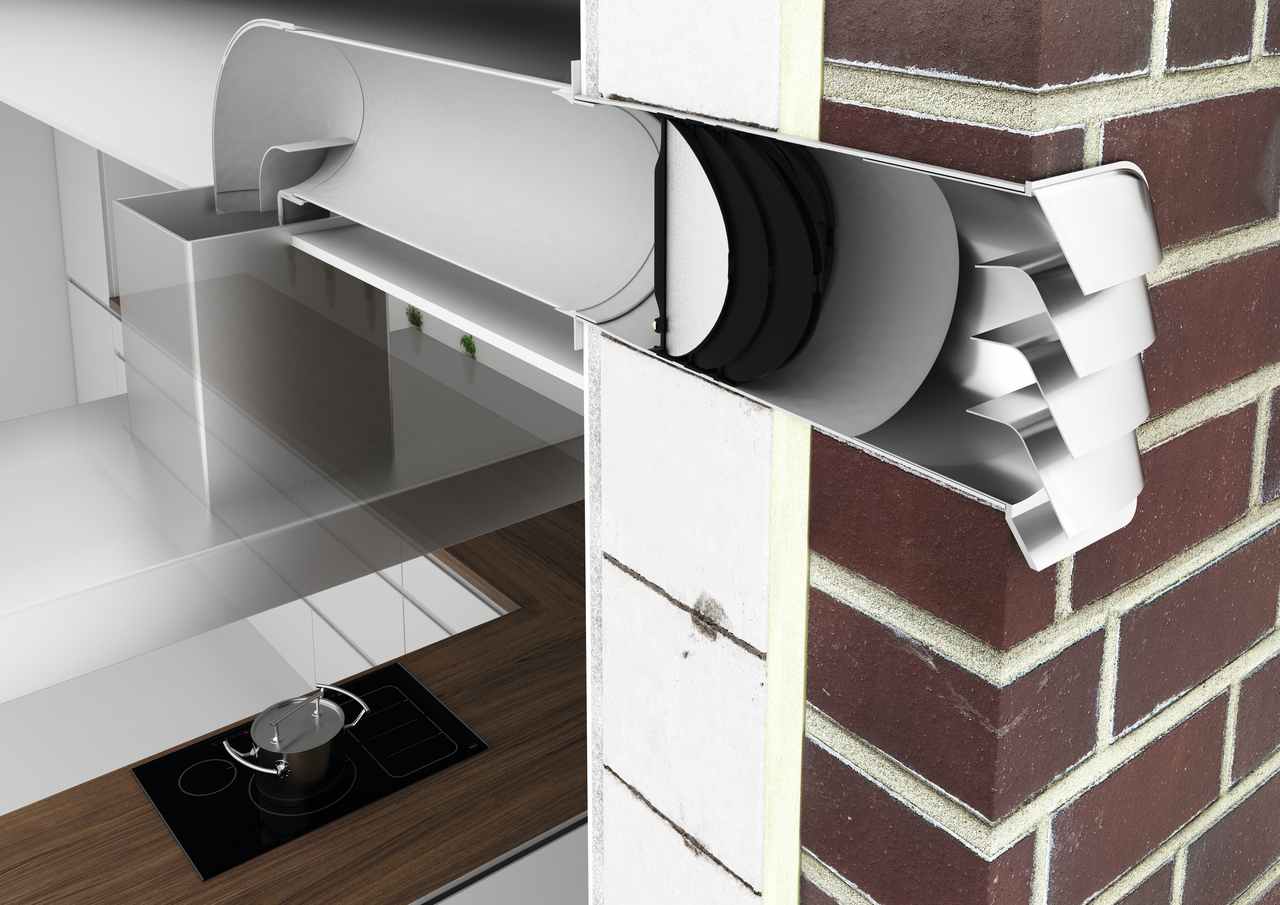

The variable COMPAIR^® flow E-Jal Col^® flow 125 wall box impresses with its energy-efficient performance. It reliably leads the exhaust air of an extractor bonnet outside and ensures a beneficial room climate in the kitchen. The wall duct is equipped with a THERMOBOX and provides a square stainless steel external louvre. The lamellas of the louvre are equipped with special guide bodies that optimise the flow guidance. The patented COMPAIR^® flow technology is used for efficient and quiet air duct routing. In combination with the integrated THERMOBOX, the system suppresses draughts and significant heat loss. The blower-door certified heat retention system opens at an air pressure of 65 Pa and provides full opening even at a low volume flow. Opening and closing is magnetic and avoids unsightly vibrations and rattling noises. The telescopic wall duct provides a flat spigot measuring 174 x 82 mm with a spigot depth of 80 mm for connection. The total installation depth can be varied from 350 to 500 mm and can be shortened to 240 mm. The required wall opening is 132 mm in diameter.

Wall conduct with telescopic pipe, incl. built-in heat retention system THERMOBOX and stainless steel external blind E-Jal Col®. Guide vanes on the slats of the blind ensure optimised flow guidance.

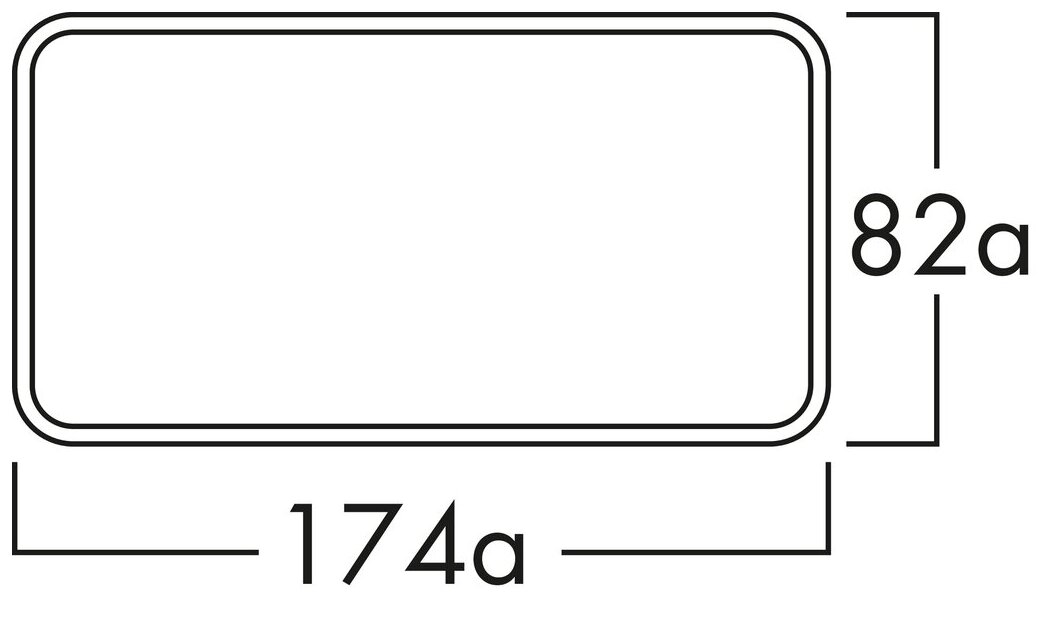

— pipe connection 174 x 82 mm
— connection depth 80 mm
— installation depth 350–500 mm, can be shortened to 240 mm
— wall penetration Ø ca. 132 mm
— Blower-Door certified (required opening pressure >65 Pa)

Article type:

Wall sleeve

Certification:

stainless

Colour:

stainless steel/white

Connection diameter:

125 mm

Installation depth:

350–500 mm

Mounting/Fixing:

installation in the wall

Opening pressure:

> 65 Pa

Output drive:

angular

Properties:

can be shortened

Shape:

angular

Shortenability:

can be shortened to 240 mm

Support depth:

80 mm

System dimension:

125

Material:

stainless steel

Height:

194,3 mm

Width:

198,4 mm

Downloads

Assembly

Measures
