Product information:

Livia E Duo stainless steel, H 720 mm

Product number: 3036417

Frame
Table frame
Adjustable

Prices will only be shown once logged in.

Description

Livia E Duo stainless steel, H 720 mm

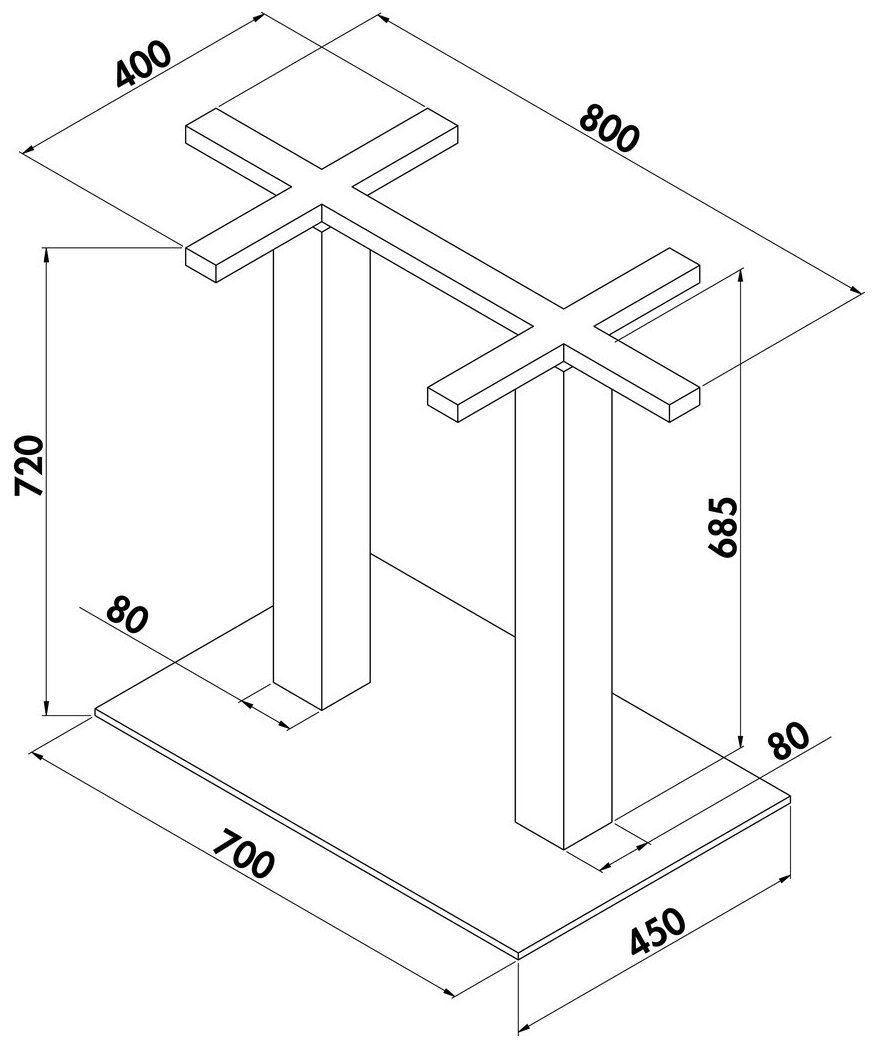

The angular Tablon^® Livia E Duo table frame creates a modern atmosphere in the dining room or kitchen. It can be combined individually with a table top made of wood, glass or plastic, which is available separately. The double fastening cross with the dimensions 800 x 400 mm ensures a stable support. Furthermore, the table base provides two elegant block columns, each with a thickness of 80 x 80 mm. They are firmly connected to the flat base plate, which has rectangular dimensions of 700 x 450 mm. This gives the dining table a reliable stand. Small unevenness of the floor can be compensated for by the integrated adjustable feet. The double-column frame is suitable for tabletops with a maximum size of 1,400 x 800 mm. The load capacity is approx. 70 kg. The material used is brushed stainless steel, which impresses with its corrosion-resistant and easy-care properties. Thanks to the screw mounting provided, a stable construction is created.

Table frame, square.
— pipe 80 x 80 mm
— base plate 700 x 450 mm
— incl. adjustable feet to compensate for uneven floors
— upper mounting cross 800 x 400 mm
— for table top max. 1400 x 800 mm (not included in the scope of delivery)
— supports up to approx. 70 kg
— cannot be shortened
— not suitable for granite tops
— assembly required

Article type:

Frame

Carrying capacity:

ca. 70 kg

Colour:

Stainless steel

Column/tube shape:

angular

Dimensions column/tube:

80 x 80 mm

Dimensions fastening cross:

800 x 400 mm

Dimensions profile foot/floor plate:

700 x 450 mm

Dimensions upper mounting plate:

800 x 400 mm

Frame type:

Table frame

Height compensation:

incl. adjustable feet

Max. Dimensions for table top:

1400 x 800 mm

Mounting/Fixing:

Screw fastening, screwable

Note:

Use of granite plates not possible., assembly required

Number of columns/pipes:

Properties:

Adjustable, cannot be shortened

Shape:

angular

Suitable for:

freestanding tables

With mounting plate:

Yes

Material:

stainless steel

Depth:

450 mm

Height:

720 mm

Width:

800 mm

Downloads

Assembly

Data sheet

Accessories

3 variations available

Table top Livia, square, 1200 x 800 mm

Product number: 3032313

Table top
angular
oak
